9130 UPS (700–3000 VA) User's Guide S 164201718 Rev 3 www.eaton.com/powerquality

NOTE A ribbon cable connects the LCD control panel to the UPS. Do not pull on the cable

or disconnect it.

NOTE Leave

ribbon cable

connected.

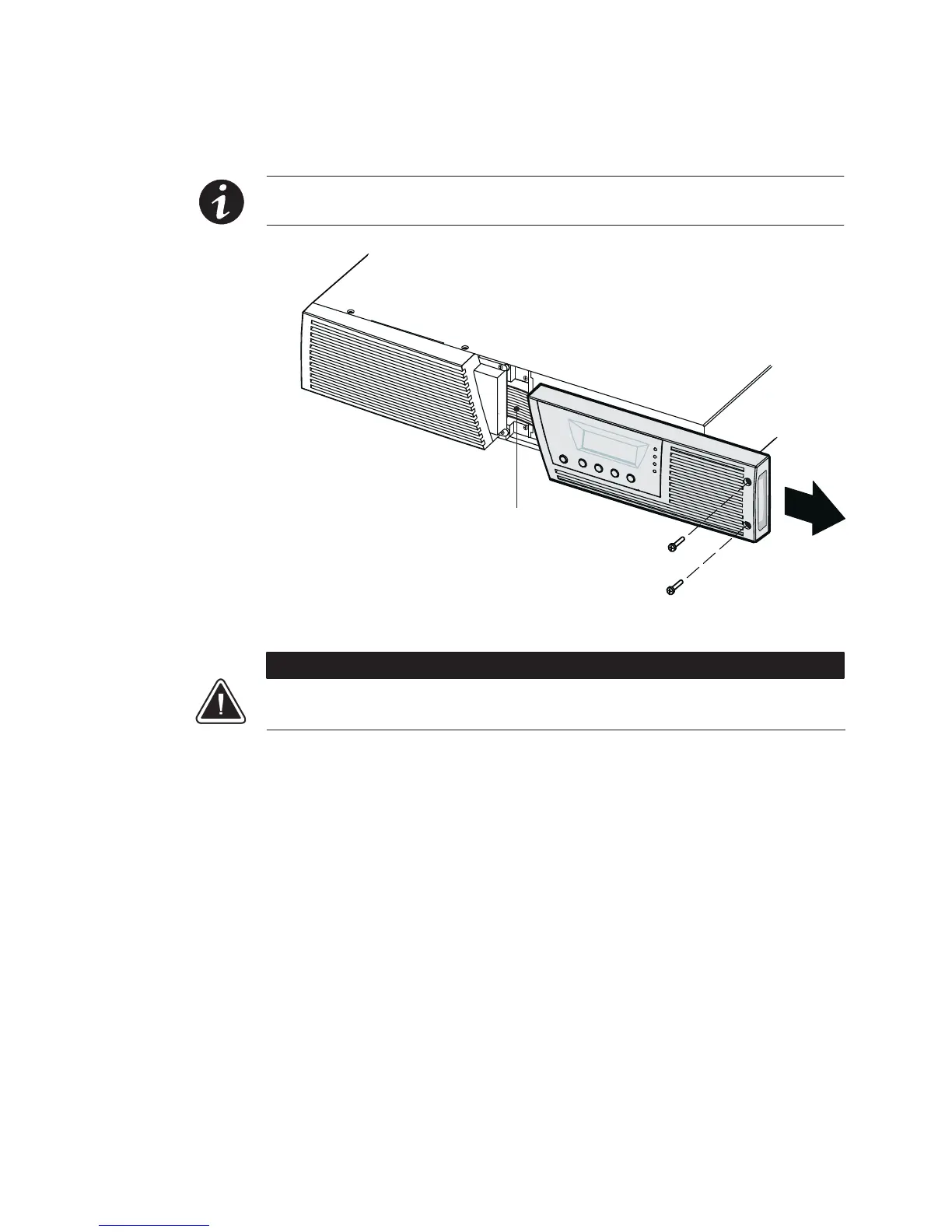

Figure 9. Removing the UPS Right Front Cover

C A U T I O N

A small amount of arcing may occur when connecting the internal batteries. This is normal

and will not harm personnel. Connect the cables quickly and firmly.

2. Connect the internal battery connector (see Figure 10).

Up to 1500 VA models. Unclip the top rightmost white connector from

the battery panel and move it to the left to connect to the white

connector at the top left. Connect red to red, and black to black.

Press the two parts tightly together to ensure a proper connection.

Clip the wires of the rightmost connector to the battery panel in its

new position.

2000–3000 VA models. Connect red to red, and black to black. Press

the two parts tightly together to ensure a proper connection.
