Hach sc200 User Manual

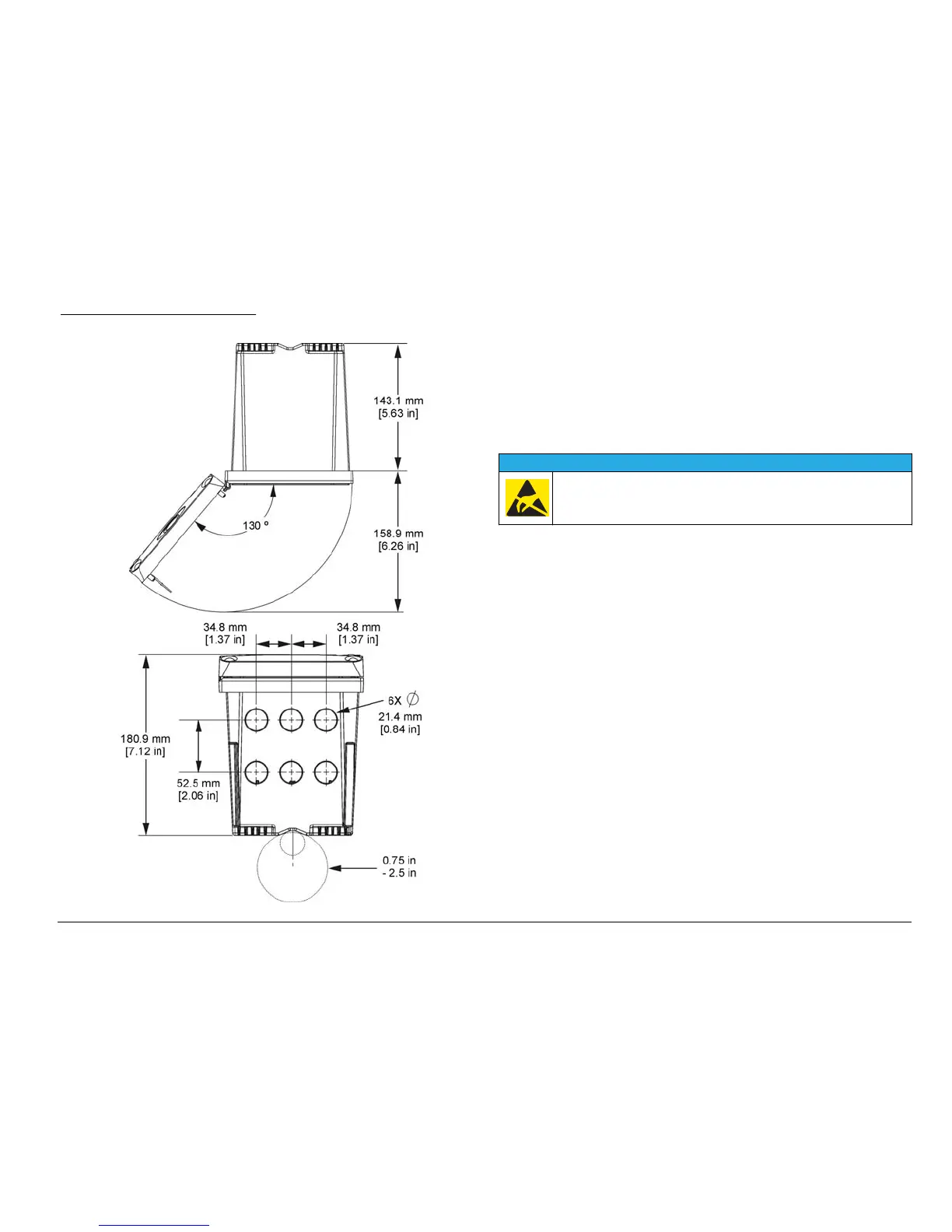

Figure 6 Top and bottom views
High-voltage barrier
High-voltage wiring for the controller is located behind the high-voltage
barrier in the controller enclosure. The barrier must remain in place
except when installing modules or when a qualified installation
technician is wiring for power, alarms, outputs or relays. Do not remove
the barrier while power is applied to the controller.
Electrostatic discharge (ESD) considerations
12TI& E
Potential Instrument Damage. Delicate internal electronic components
can be damaged by static electricity, resulting in degraded
performance or eventual failure.
Refer to the steps in this procedure to prevent ESD damage to the
instrument:
• Touch an earth-grounded metal surface such as the chassis of an
instrument, a metal conduit or pipe to discharge static electricity from
the body.
• Avoid excessive movement. Transport static-sensitive components in
anti-static containers or packages.
• Wear a wrist strap connected by a wire to earth ground.
• Work in a static-safe area with anti-static floor pads and work bench
pads.
Wiring overview
Figure 7 shows an overview of the wiring connections inside the
controller with the high voltage barrier removed. The left side of the
figure shows the back side of the controller cover.
1ote 5ePove connector caps froP tKe connectors Eefore Podule installation.
(nglisK 11

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
