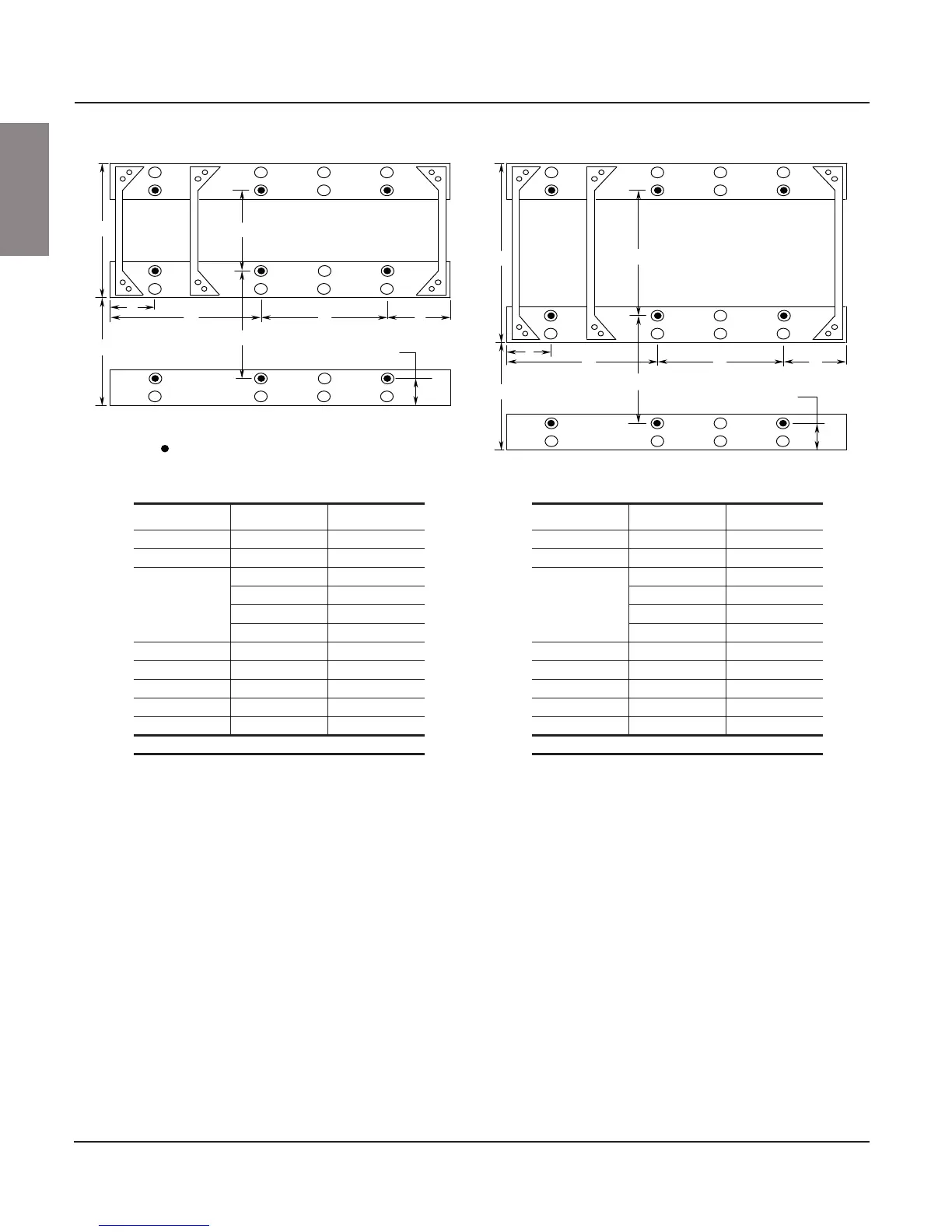

Figure 16: NEMA Type 3R Seismic Tie-Down Locations
CA
F
E
G
E
B
D
B
D
E
F
G
E
CA
H
H
= Seismic Tie-Down Locations
15 in. (381 mm) Section Dimensions
Letter Section Width Dimension
A N/A 5.00 in. (127 mm)
B N/A 15.00 in. (381 mm)
C
20.00 in. (508 mm) 10.00 in. (254 mm)
25.00 in. (635 mm) 15.00 in. (381 mm)
30.00 in. (762 mm) 20.00 in. (508 mm)
35.00 in. (889 mm) 25.00 in. (635 mm)
D N/A 9.98 in. (253 mm)
E N/A 11.60 in. (295 mm)
F N/A 12.50 in. (318 mm)
G N/A 5.00 in. (127 mm)
H N/A 3.60 in. (91 mm)
N/A = Not applicable
20 in. (508 mm) Section Dimensions
Letter Section Width Dimension
A N/A 5.00 in. (127 mm)
B N/A 20.00 in. (508 mm)
C
20.00 in. (508 mm) 10.00 in. (254 mm)
25.00 in. (635 mm) 15.00 in. (381 mm)
30.00 in. (762 mm) 20.00 in. (508 mm)
35.00 in. (889 mm) 25.00 in. (635 mm)
D N/A 14.98 in. (380 mm)
E N/A 11.60 in. (295 mm)
F N/A 12.50 in. (318 mm)
G N/A 5.00 in. (127 mm)
H N/A 3.60 in. (91 mm)
N/A = Not applicable
NOTE: The dimensions shown are tie-down locations within
individual MCC sections. Refer to factory supplied drawings to
determine appropriate anchor locations for the equipment pad.
