80459-641-01E Model 6 Motor Control Centers

10/2012 Section 6—Maintaining the MCC

ENGLISH

8. The operator mechanism-to-structure interlock prevents the control unit

from being withdrawn or inserted with the handle in the ON position (see

Figure 79).

9. If the withdrawn unit is left in the structure, use appropriate lock-out

procedures to avoid re-loading by non-authorized personnel (see

Figure 80).

10. Remove the control unit from the structure for servicing (see Figure 81).

In units with a full bottom plate, additional accessibility to the

components and wiring can be achieved by folding the bottom plate

down. To do so, lean the unit on its back, remove the two front screws,

and fold the bottom plate down (see Figure 82).

NOTE: Lifting plug-on units taller than 24 in. (610 mm) requires two or

more persons using special handling precautions. If lifting devices are

used, see Figure 6 on page 17 for the proper lifting points. Figure 6 also

shows a lifting point that is NOT recommended when lifting larger units.

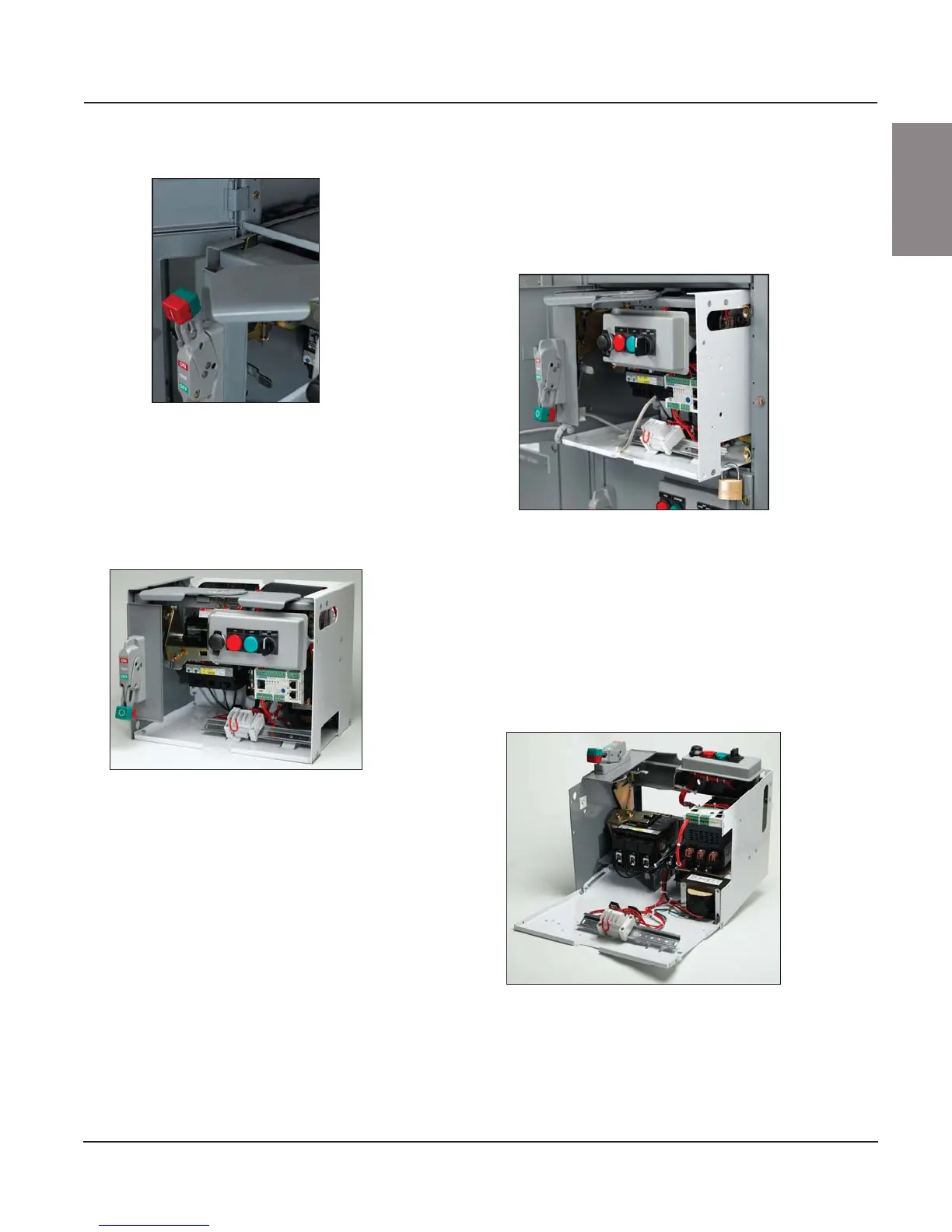

Figure 79: Operating the Mechanism-to-

Structure Interlock

Figure 80: Locked Out Device

Figure 81: Control Unit Removed

Figure 82: Control Unit with Bottom Plate Folded Down
