INSTALL CABLE
AL800M23K and CU800M23K and
AL800P6K Lug Kits
Square conductor ends and preform conductors
to final configuration. Using a proper insulation
stripping tool, strip conductor ends as
recommended in Table 1. Do not nick strands.
CAUTION
HAZARD OF FALSE TORQUE INDICATION
Do not allow conductor strands to interfere with threads of wire binding
screw.
Failure to follow this instruction will result in equipment damage.
Table 1: Circuit Breaker Lug Information
Lug
Lug with Optional
Control Wire
Installed
Catalog
Number
Conductor Screw Torque
Type Size Qty.
Wire
Binding
Screw
Control
WIre
Screw
AL800M23K
1
Al/Cu
3/0–500 kcmil
(95–240 mm
2
)
3 1.0 in. (25 mm)
442.5 lb-in
(50 N•m)
9–12 lb-in
(1–1.3 N•m)
CU800M23K Cu
AL800P6K
1
Al/Cu
3/0–600 kcmil
(95–300 mm
2
)
2 1.2 in. (30 mm)
442.5 lb-in
(50 N•m)
9–12 lb-in
(1–1.3 N•m)
AL1200P24K
1
Al/Cu
3/0–500 kcmil
(95–240 mm
2
)
4 1.2 in. (30 mm)
442.5 lb-in
(50 N•m)
9–12 lb-in
(1–1.3 N•m)
CU1200P24K Cu
1 For version with tapped hole for control wire add a T before the K to the catalog number (i.e. AL800M23TK).
2 Conductors must be cut square for secure termination.
Strip
Length
2
06123125
06123125
06123065
06123065
06123126
06123126
NOTE: For unused lug holes, screw wire binding
screw down until seated against bottom of lug
hole.
1. For factory-installed lugs, install cables in lug
and torque wire binding screw as
recommended on faceplate and Table 1.
2. For field-installable lug kits, see instruction
bulletin shipped with kit.

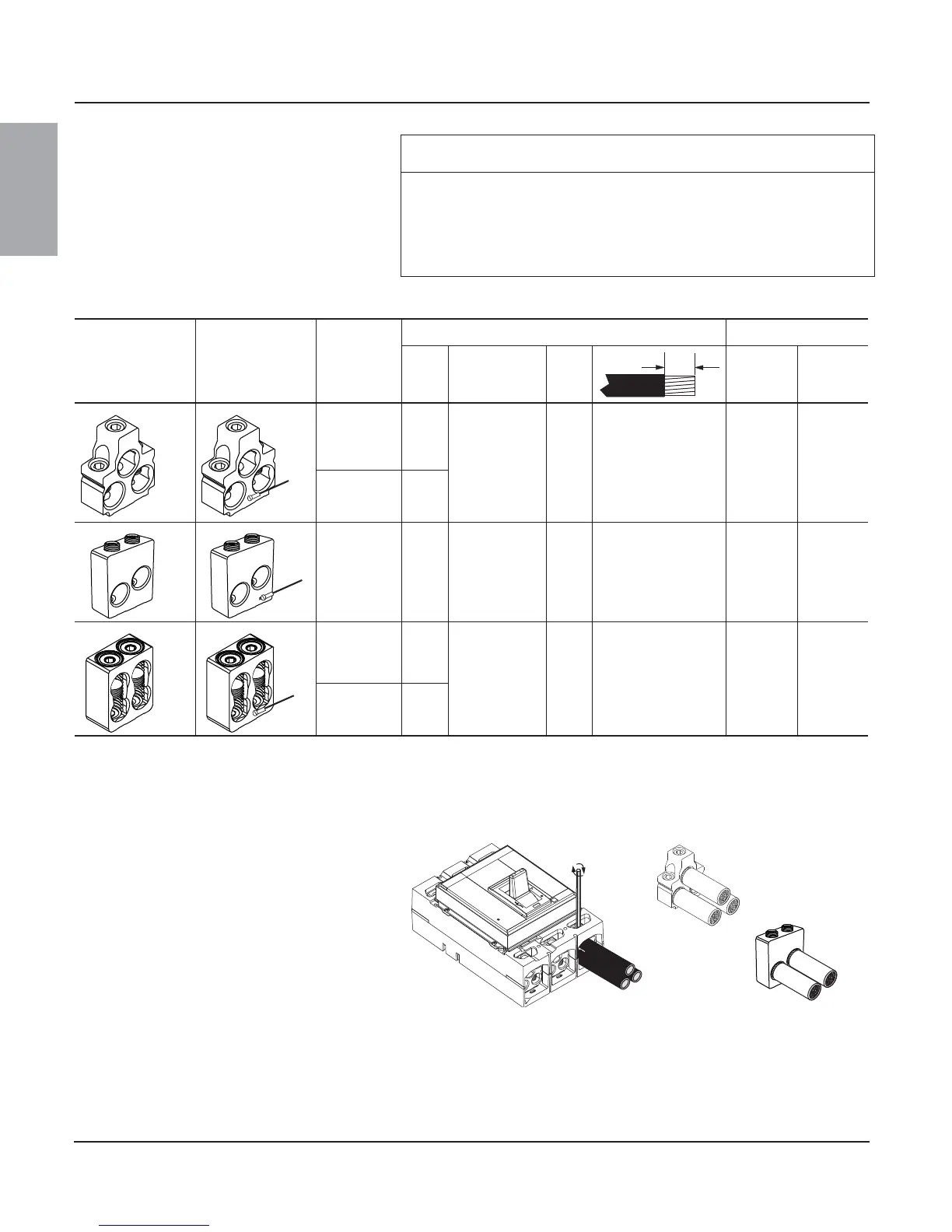

Figure 8: AL800M23K, CU800M23K and AL800P6K Lug Cable
Installation
06123098
06123140
06123066
