GAS TYPE RANGE SPAN GAS MSA RP CALIBRA- WARM-UP
PRESET CYLINDER TION KIT TIME
VALUES P/N
Carbon Dioxide IR 0-5000 PPM 2000 PPM 479266 40 ---------
0-2% 1.5% 807386 40 ---------
0-5% 2.5% 479265 40 ---------
Hydrogen Chloride 0-50 PPM 40 PPM 10028078 54 30 minutes
NOTES:
1
Calibrated with PROPANE (.6% GAS BY VOLUME)
2
Not required for standard calibration procedure
3
For Combustible Gas, it is good practice to calibrate unit with gas to be detected
4
ClO
2
is calibrated with Cl
2
or use ClO
2
Calibrator Kit (P/N 710420)
5
Methane IR is calibrated with 50% LEL Methane
6
ETO is calibrated with SO
2
.
7
Hydrogen Fluoride (HF) is calibrated with Sulfur Dioxide (SO
2
), 10 PPM SO
2
= 8 PPM HF

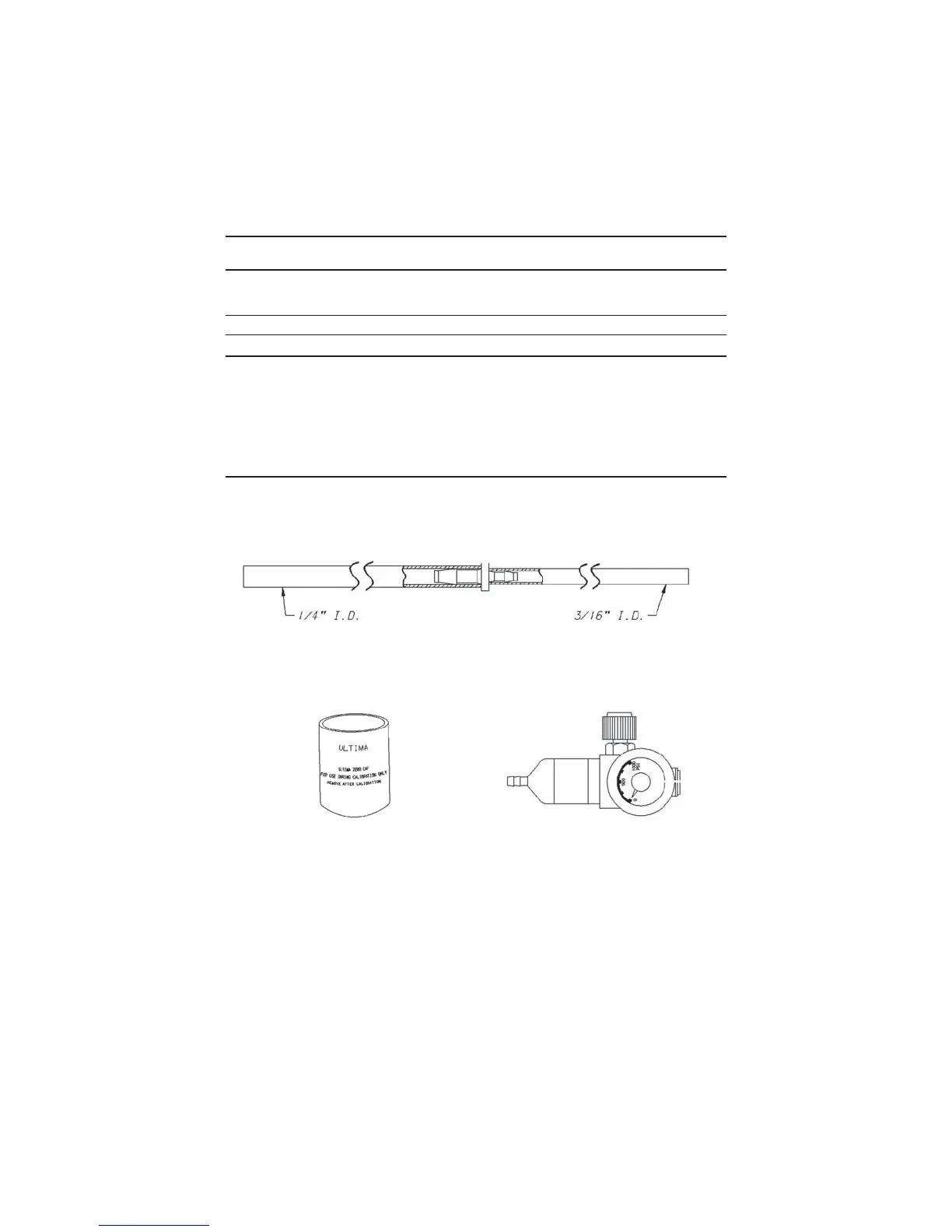

Figure 2-1. Calibration Kit 40 Contents
(Your Kit may also include one or two gas cylinders)
Item 2 - Zero Cap
(P/N 710535)
Item 3 - 1.5 LPM Flow
Controller (P/N 478358)
Item 1 - Tubing (P/N 711112)
- 3/16" ID side connects to Item 3
- 1/4" ID side connects to sensor
2-4

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
