ID#30 Output O0- Local horn output
Output O1- Zone 1 Alarm
Output O2-Zone 2 Alarm
Input I0- Local area silence
ID#31 Output O0- Local horn output
Output O1- Zone 3 Alarm
Output O2- Zone 4 Alarm
Input I0- Local area silence
ID#32 Output O0- Local horn output
Output O1- Zone 5 Alarm
Output O2- Zone 6 Alarm
Input I0- Local area silence
ID#33 Output O0- Local horn output
Output O1- Zone 7 Alarm
Output O2- Zone 8 Alarm
Input I0- Local area silence
Example: Program ID# 5 sensor 1 caution alarm to zone 1. Therefore, if
Sensor 1 caution alarm occurs, this will trip the ModCon75 Zone 1
output (O0) as well as the remote relay module ID#30, output O1.
F10- Network Settings
• For Ethernet capability, enter IP Address,
Subnet Mask and Default Gateway information.

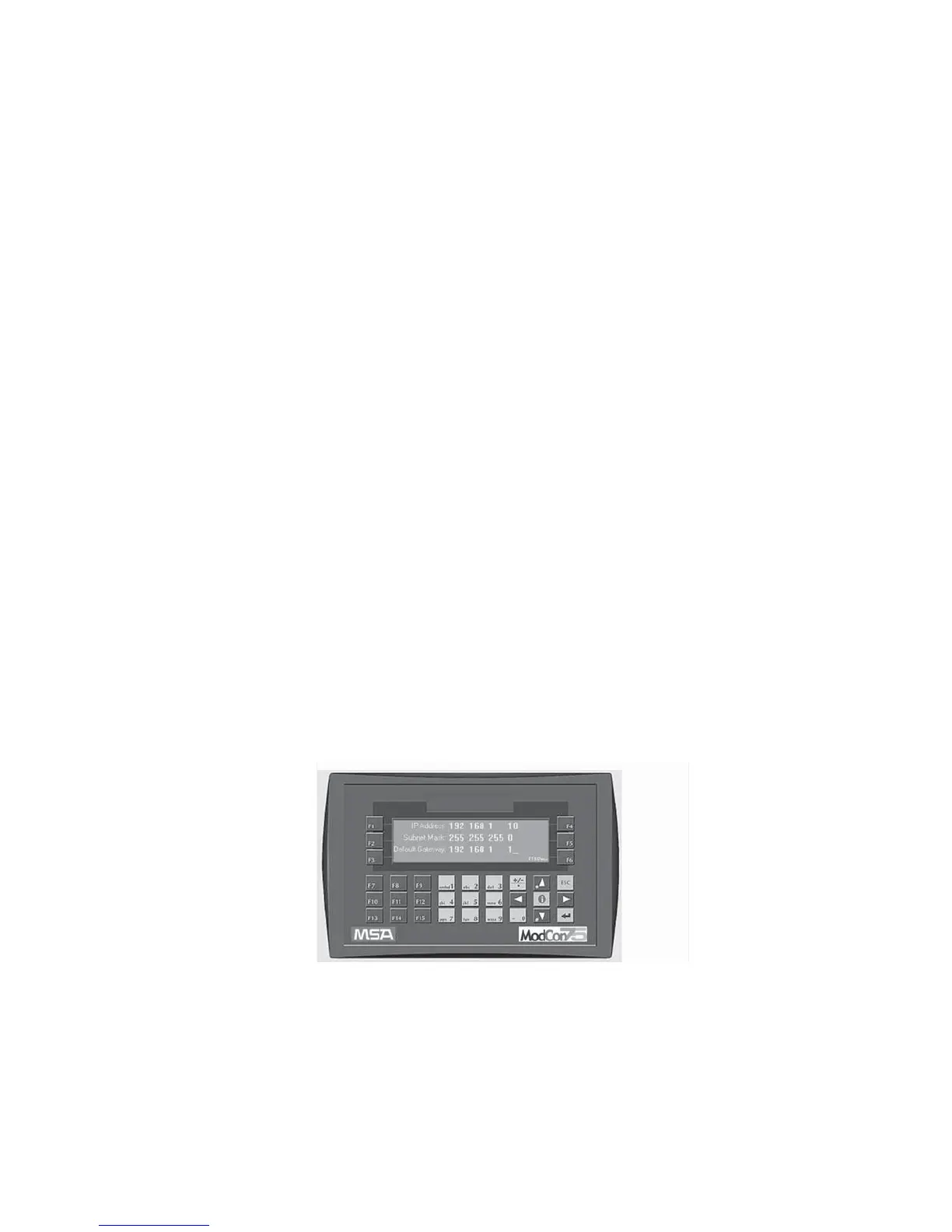

Figure 6-24. F10- Network Settings
