NOTE: User must wait for the controller to move to the next screen;
this will take six seconds.
This Latching Function only changes the relay operation of the
Ultima X
3
unit. For latching an alarm on the ModCon75
Controller, use a Zone relay and program it for latching.
A latched relay at the Ultima X3 unit may be cleared at the
ModCon75 Controller by pressing the down arrow (▼) key.

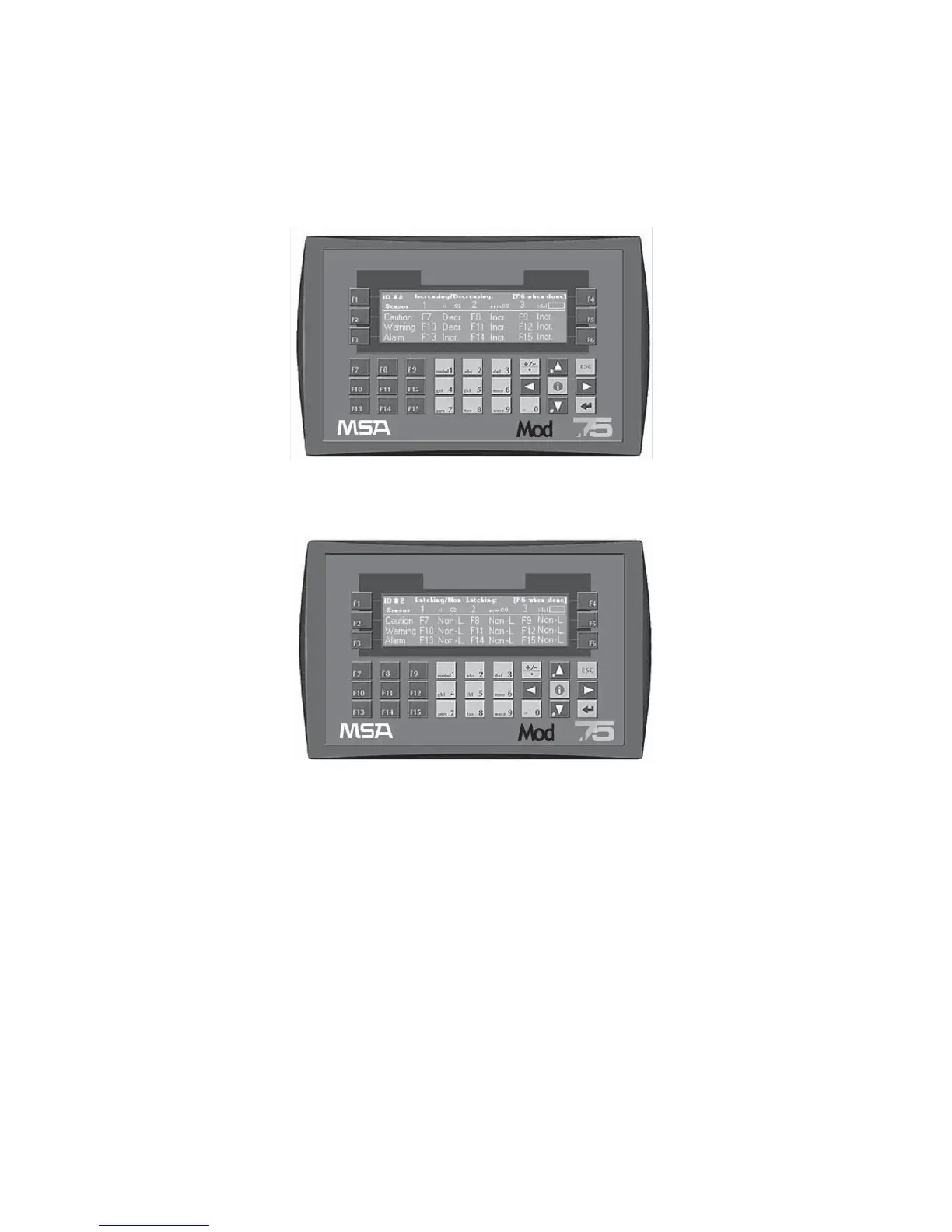

Figure 6-8. Allows users to Set
Latching / Non-latching Alarms
Figure 6-7. Allows Users to Set
Increasing or Decreasing Alarms
