User Interface and Navigation

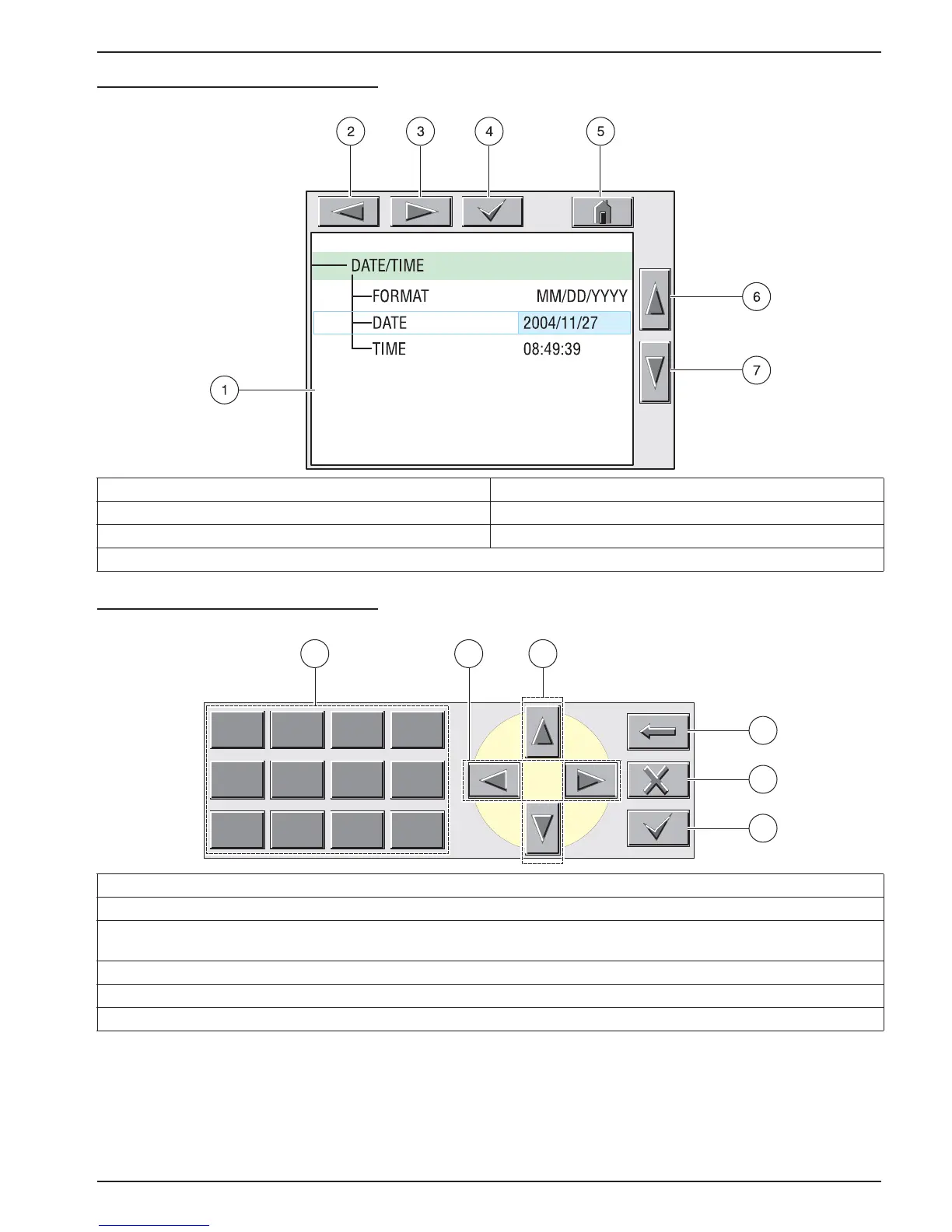

Figure 18 Changing a Menu Item
Figure 19 Keypad
1. Display Area 42. HOME–changes to the display of measured values.
39. BACK
43. UP–scrolls up
40. FORWARD
44. DOWN–scrolls down
41.
ENTER–confirms the entry or selection.
1. Enters numbers or the character as shown on the button.
45. Moves the cursor one position to the left or to the right.
46. Increase/Decrease a number or letter at the cursor position. Keep the button pressed to change the numbers/characters
continuously.
47. Deletes the character to the left of the cursor.
48.
CANCEL–cancels the entry.
49.
ENTER–confirms the entry or selection.
1 2 3 :
4 5 6 /
7 8 9 0
4
5
6
1 3
2

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
