INSTALLATION

Eaton

9130 UPS (700–3000 VA) User's Guide S 164201718 Rev 3 www.eaton.com/powerquality

Up to 1500 VA Models 2000–3000 VA Models

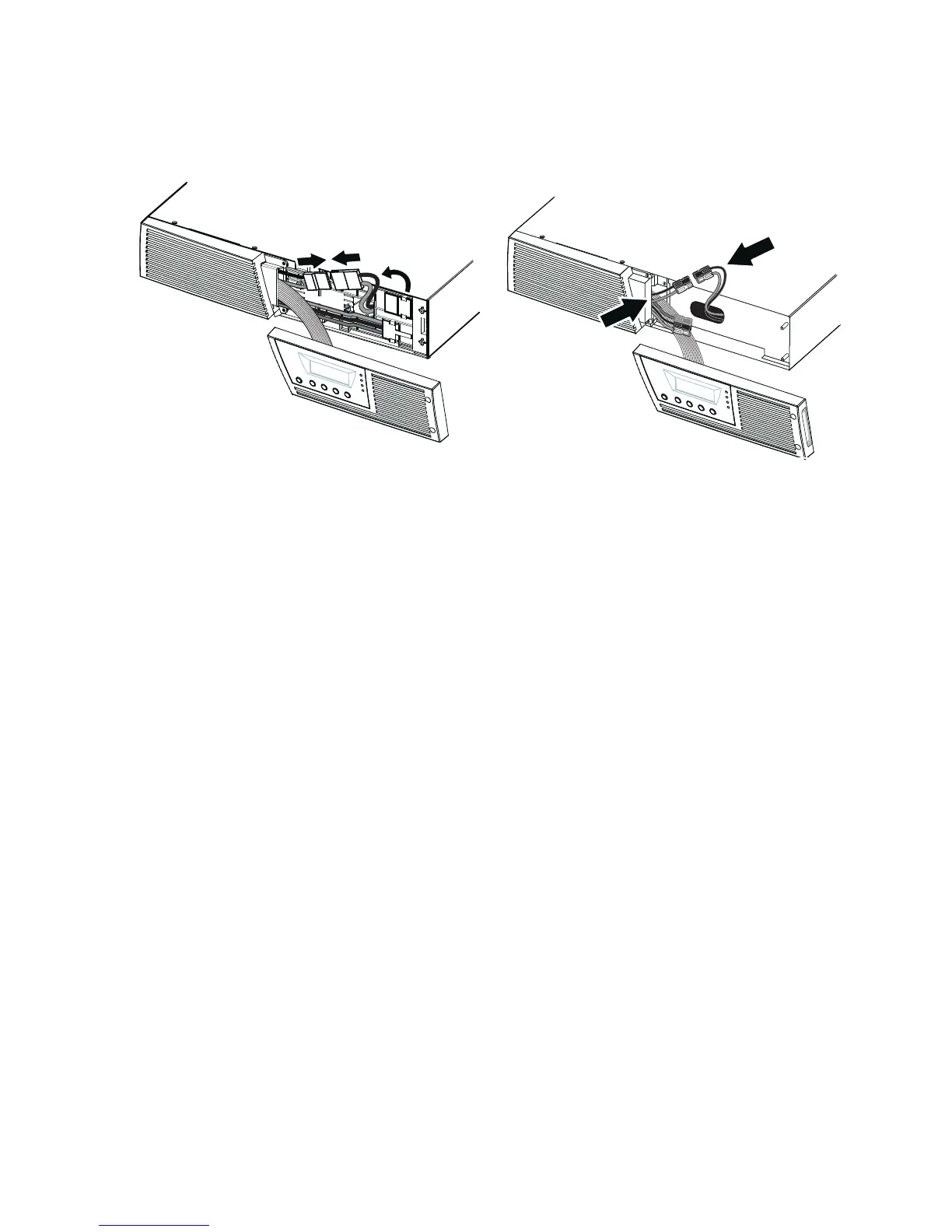

Figure 10. Connecting the UPS Internal Batteries

3. If you are installing EBMs, see the following section, “Connecting

the EBM(s),” before continuing with the UPS installation.

4. Replace the UPS right front cover.

To replace the cover, verify that the ribbon cable is protected and (if

EBMs are installed) the EBM cable is routed through the knockout

on the bottom of the cover. Slide the cover to the left until it aligns

with the left front cover. Reinstall the two screws on the right side

of the right front cover.

5. If you are installing power management software, connect your

computer to one of the communication ports or optional

connectivity card (see page 53). For the communication ports, use

an appropriate cable (not supplied).

6. If your rack has conductors for grounding or bonding of ungrounded

metal parts, connect the ground cable (not supplied) to the ground

bonding screw. See “Rear Panels” on page 91 for the location of

the ground bonding screw for each model.

7. If an emergency power-off (disconnect) switch is required by local

codes, see “Remote Emergency Power-off” (REPO) on page 56 to

install the REPO switch before powering on the UPS.

8. Continue to “UPS Initial Startup” on page 34.
