Model 6 Motor Control Centers 80459-641-01E
Section 4—Installing the MCC 10/2012
© 1999–2012 Schneider Electric All Rights Reserved44
ENGLISH
6. Torque all bolts on both ends to 31–32 lb-ft (41.87–43.22 Nym). See
Figure 55.
7. Repeat Steps 2–6 for all phases and the neutral bus (if supplied).
8. Before energizing the equipment, replace all covers and barriers.
Splicing Offset Horizontal Bus
(Left Side of Structure Only)
NOTES: • In all structures with an offset horizontal bus, splice bars are
provided as a kit. This kit is packaged in a carton and shipped
inside the structure. The kit contains all splice bars and
mounting hardware necessary for horizontal bus splicing.
• Use the splice kit only if splicing is to be done on the left (while
facing the structure). If the splice is not on the left, remove the kit
before energizing and retain it for future expansion. If a structure
is to be spliced to another structure on the right, follow splicing
instructions provided for that structure application.
• All splice connections have one more splice bar than the
number of horizontal bus bars. The rear-most splice bar
contains captive nuts.

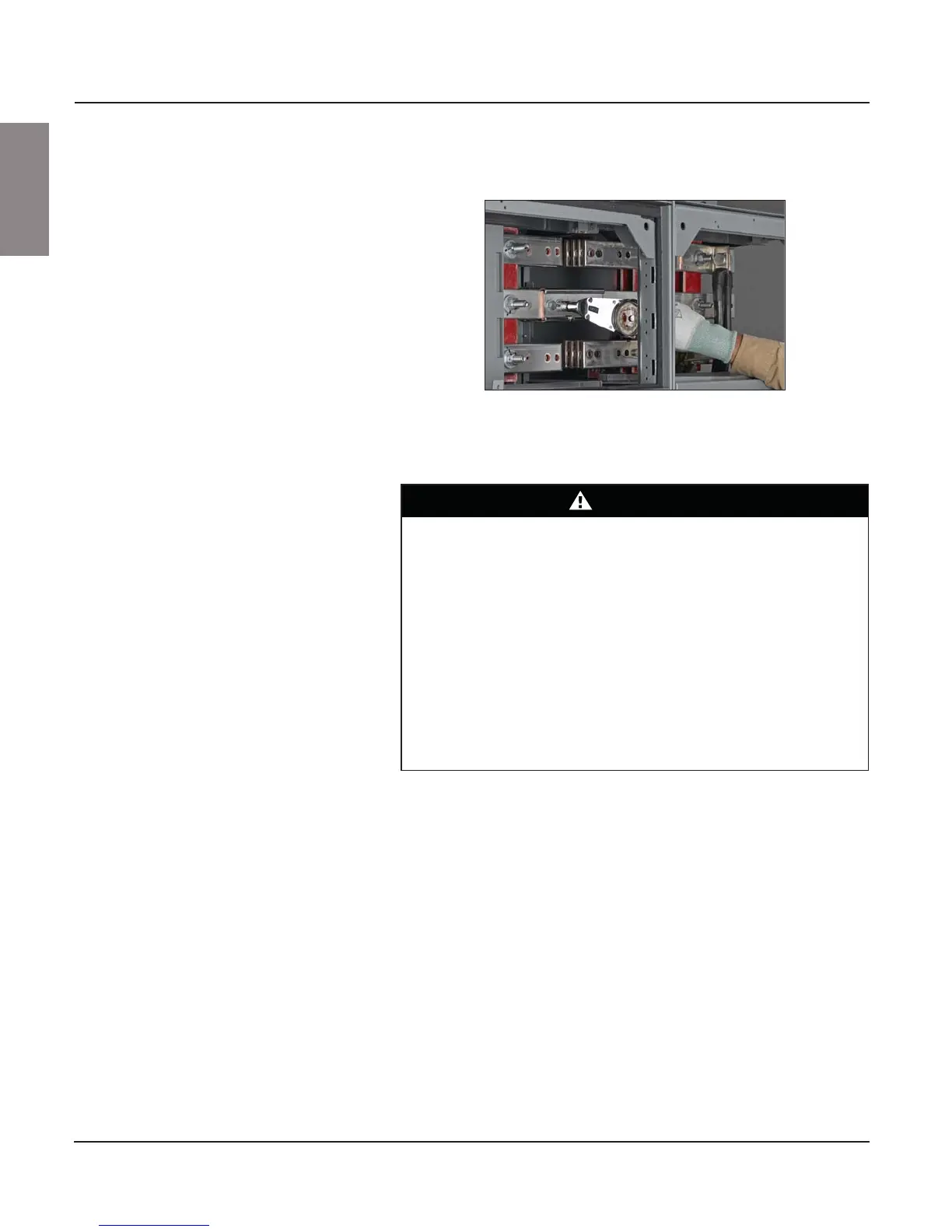

Figure 55: Torque All Bolts
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Apply appropriate personal protective equipment (PPE) and follow safe
electrical work practices. See NFPA 70E or CSA Z462.
• This equipment must only be installed and serviced by qualified
electrical personnel.
• Turn off all power supplying this equipment before working on or inside
equipment.
• Always use a properly rated voltage sensing device to confirm power is
off.
• Replace all devices, doors, and covers before turning on power to this
equipment.
Failure to follow this instruction will result in death or serious injury.
