User Interface and Navigation
4.2 Using the sc1000 Controller
The sc1000 is a touch screen application. Use your finger to touch keys and menu
commands. In normal operation the touch screen displays the measured values for the
sensors selected.
4.2.1 Display Features
4.2.1.1 Using the Pop-up Toolbar
The pop-up toolbar provides access to the controller and sensor settings. The toolbar is
normally hidden from view. To view the toolbar, touch the bottom-left of the screen.

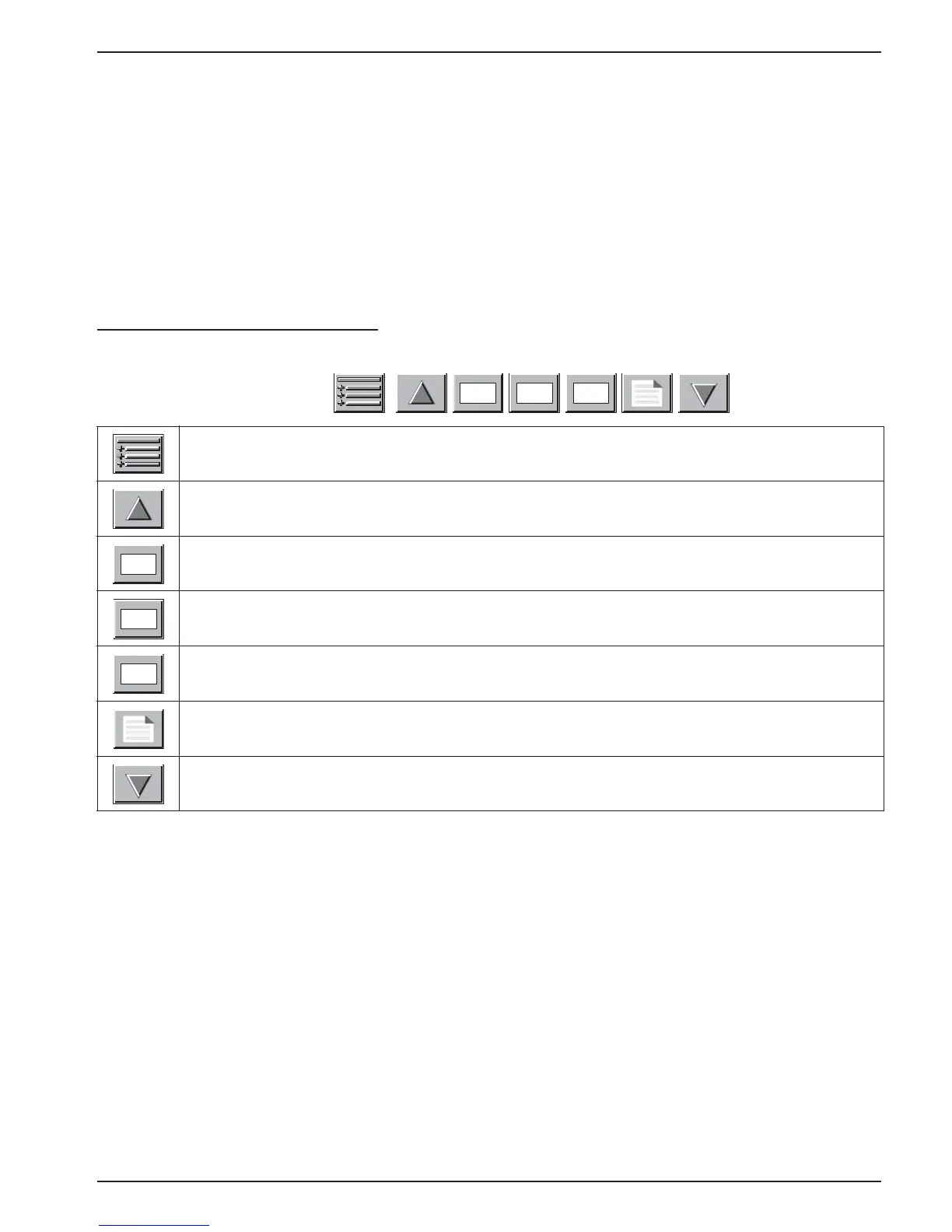

Figure 16 Pop-up Toolbar Functions
4.2.1.2 Using the Menu Windows
If the Menu button (from the pop-up toolbar) is selected, the Main Menu screen is opened.
The Main Menu screen allows the user to view the sensor status, configure the sensor
setup, system setup, and perform diagnostics.
The menu structure may vary depending on the configuration of the system.
MAIN MENU–displays the Main Menu Structure
UP Arrow–scrolls up to the previous displayed value.
Displays one value.
Displays two values at the same time.
Displays four values at the same time.
LIST–displays the list of connected devices and sensors.
DOWN Arrow–scrolls down to the next displayed value.
1 2 4
1
2
4

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
