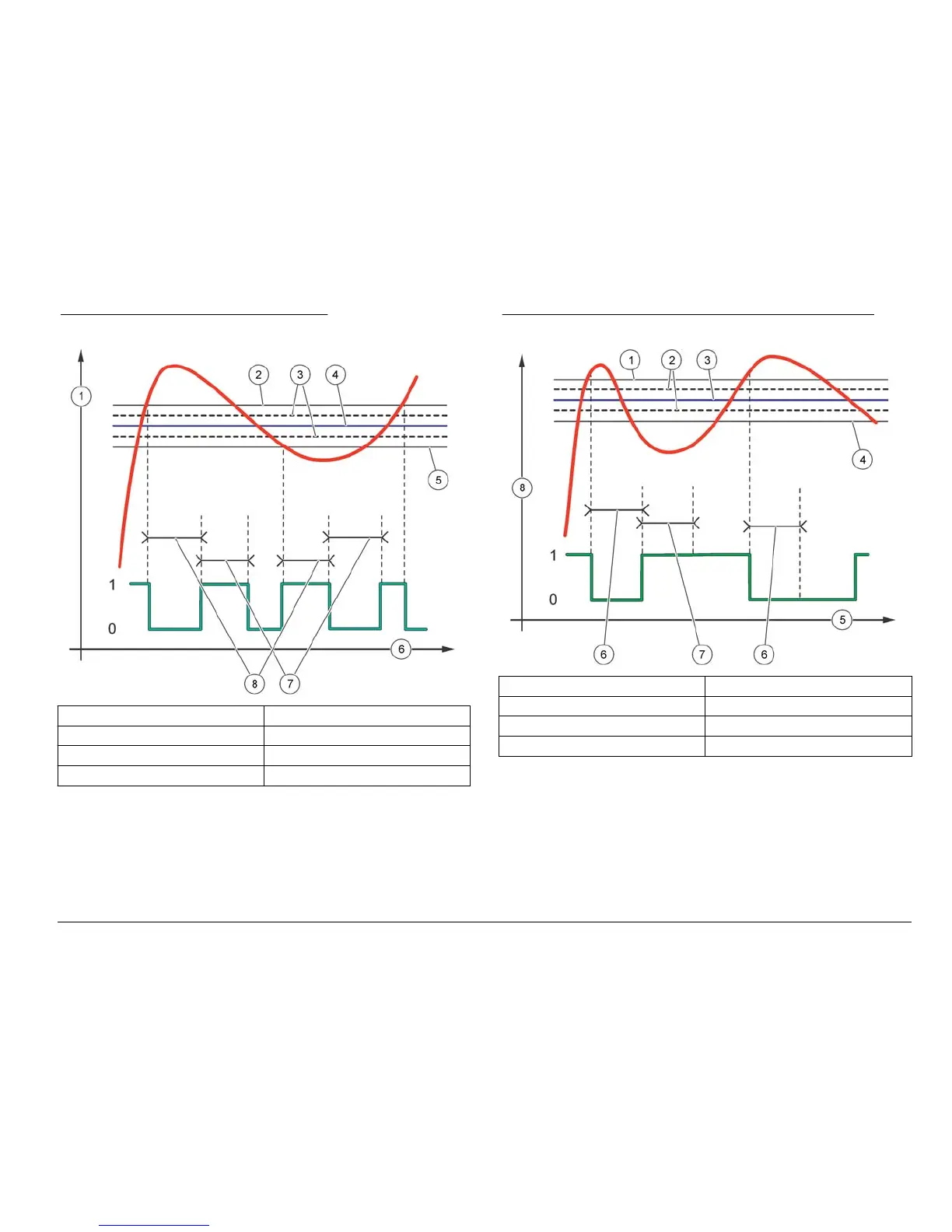

Figure 21 Event control function (no delay)
1 Source (y-axis) 5 Low alarm
2 High alarm 6 Time (x-axis)
3 Deadband 7 OnMax-time
4 Setpoint 8 OffMax-time
Figure 22 Event control function (OnMin timer, OffMin timer)
1 High alarm 5 Time (x-axis)
2 Deadband 6 OffMin timer
3 Setpoint 7 OnMin timer
4 Low alarm 8 Source (y-axis)
