Sixnet Slim Line Switch Installation Guide Page 19 of 30
Alarm
Output
Load
(opt.)
Dual DC Supplies
OK
P1
P2
Single DC Power
Redundant DC Power
+
-
Back of
Switch
(DIN rail)
Front of
Switch
(connectors)
-
+
P2
P1
OK
Single DC Supply
Alarm
Output
Load
(opt.)
Chassis
GND
(panel)
Chassis
GND
(panel)

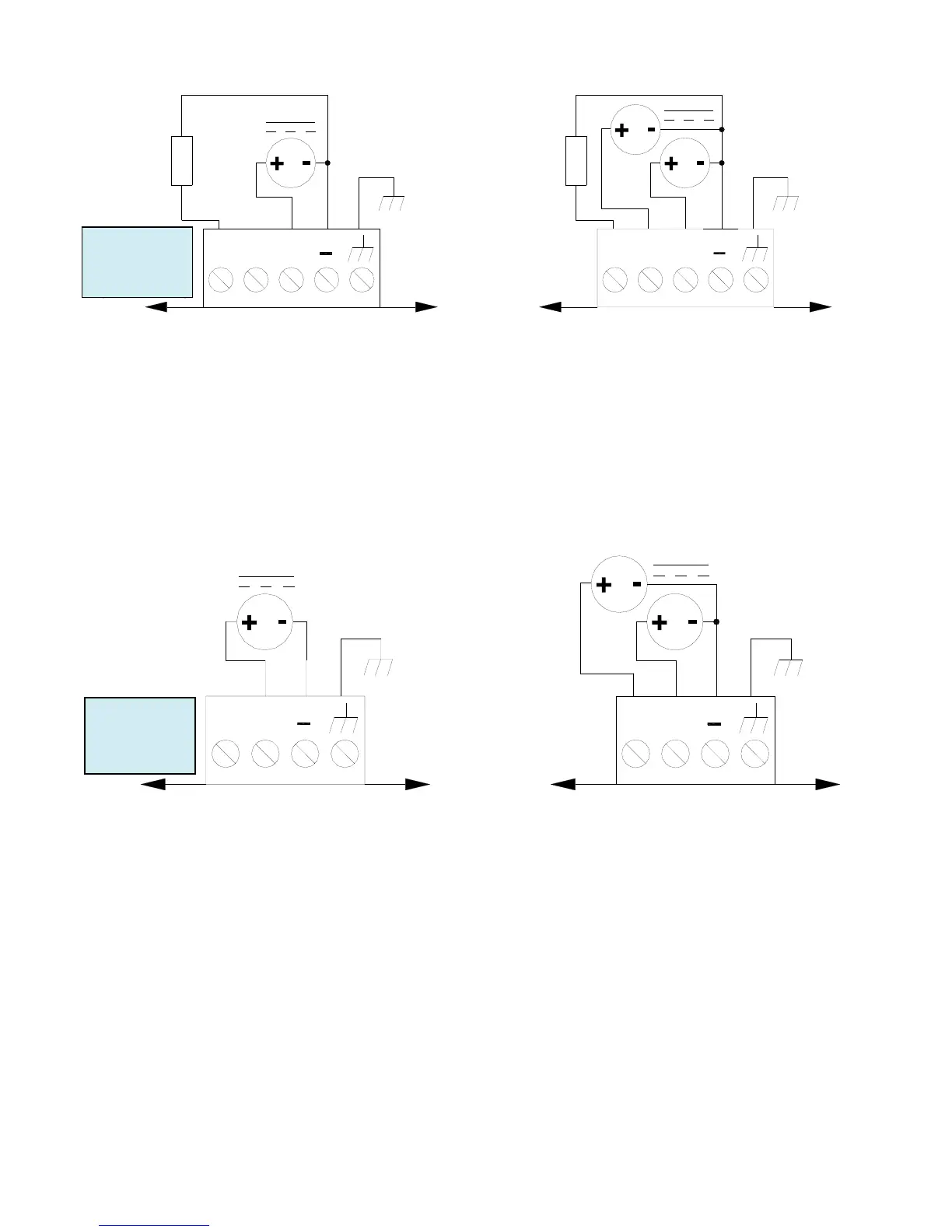

Power & Alarm Wiring for
SL/SLX-5/8MS Managed Switches
-------------------------------------------------------
Chassis
GND
(panel)
Single DC Supply
P1
P2
Front of
Switch
(connectors)
Back of
Switch
(DIN rail)
Redundant DC Power
Single DC Power
P2
P1
Dual DC Supplies
Chassis
GND
(panel)
Power Wiring for
SL/SLX-5/8/9ES Unmanaged Switches
and SL-2ES Media Converter
Front of
Switch
(connectors)
Front of
Switch
(
connectors
)

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
