Hach sc200 - Controller Mounting; Mounting Components; Surface Mounting Dimensions

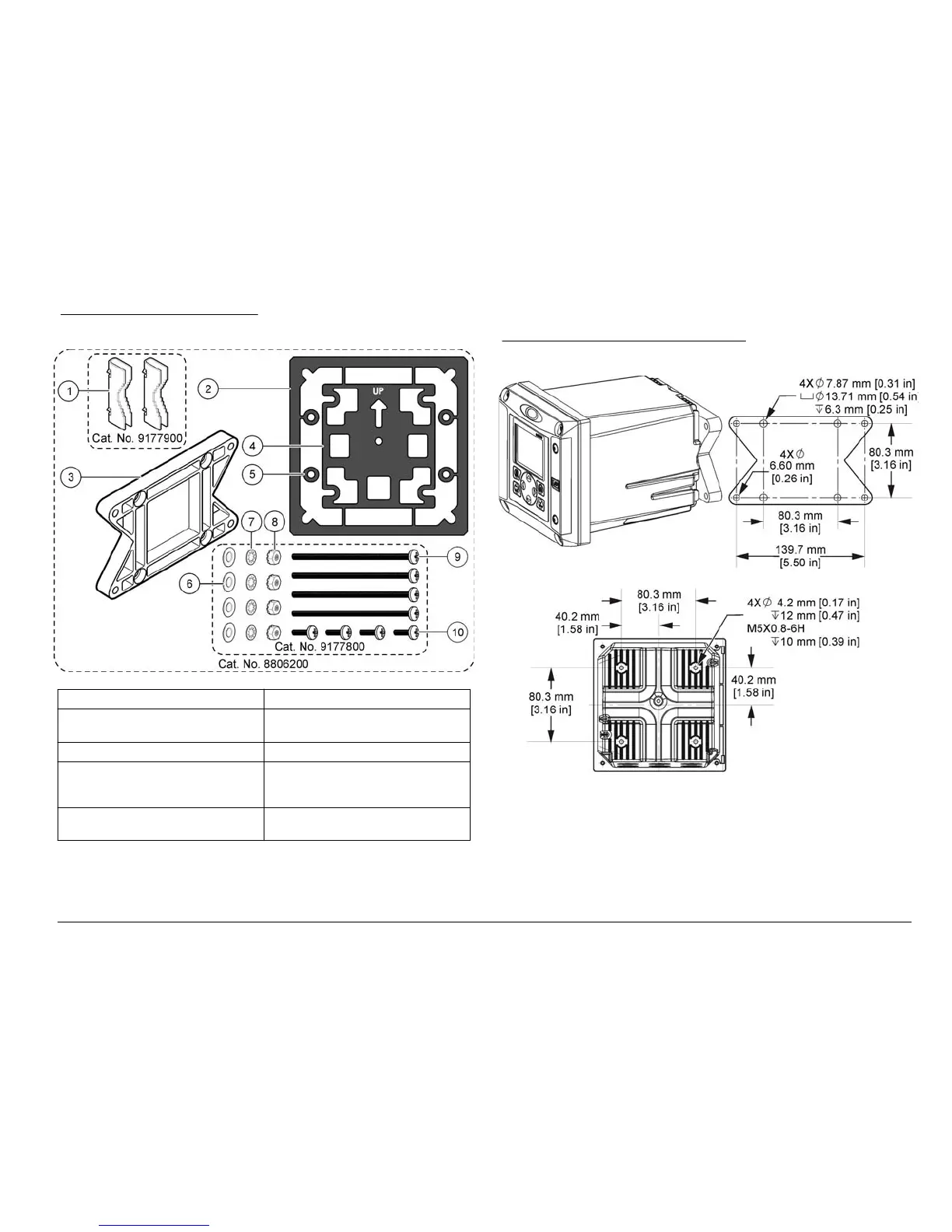

Figure 2 Mounting components
1 Mounting foot (2x) 6 Flat washer, ¼-inch ID (4x)
2 Sealing gasket for panel mount,
Neoprene
7 Lock washer, ¼-inch ID (4x)
3 Bracket for wall and pipe mounting 8 M5 x 0.8 Keps hexnut (4x)
4 Vibration isolation gasket for pipe
mount
9 Pan head screws, M5 x 0.8 x
100mm (4x) (Used for variable
diameter pipe mount installations)
5 Vibration isolation washer for pipe
mount (4x)
10 Pan head screws, M5 x 0.8 x
15 mm (4x)
1ote $ EracNet for panel Pounting is availaEle as an optional accessory.
Controller mounting
Figure 3 Surface mounting dimensions
(nglisK 9
