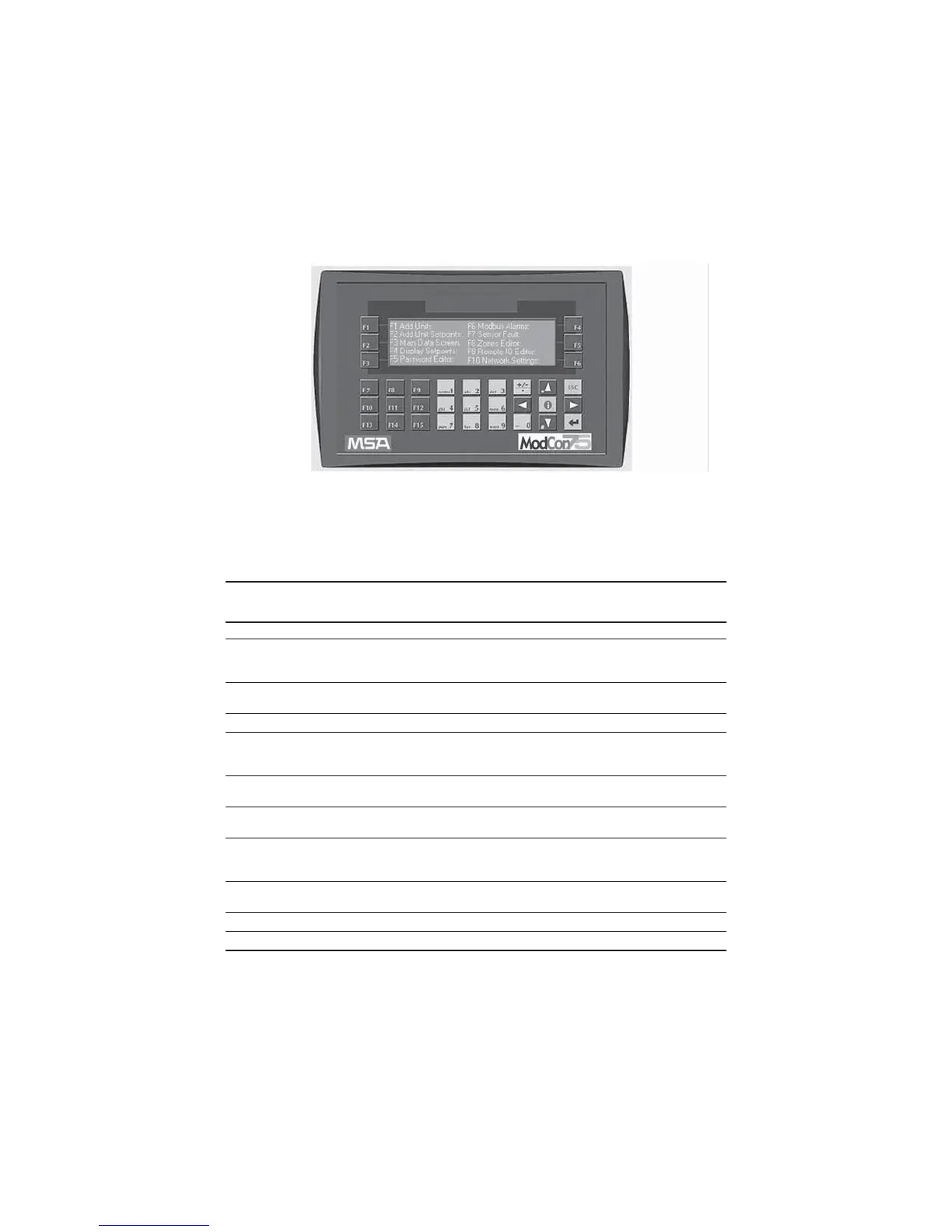

Main Menu Screen
Table 6-1. Keypad Functions
KEYPAD
KEY FUNCTION
F1 Add Units: Add Ultima X
3
transmitters to the network
F2 Add Unit Setpoints: Sets Alarms:
Enable/disable, increasing/decreasing, latching/non-latching,
set point values, and zone control relays
F3 Main Data Screen:
Display all units on network or a specific node
F4 Displays set-points (view only - all alarm settings)
F5 Password Editor:
Two password levels: MSA Default and
User programmable (default = 0)
F6 Modbus Alarms:
Displays communication status
F7 Sensor Fault:
Automatically appears if Ultima X
3
transmitter enters a fault condition
F8 Zones Editor:
Zone relays can be configured for latch/unlatch, OFF/ON delay and
delays of up to 15 minutes
F9 Remote I/O Editor:
Activate only when optional remote relay modules are on the network
F10 Network Settings
NOTE: To make selection, press desired function key
Figure 6-2. Main Menu Screen
6-2

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
