Hach sc200 - Bottom Connectors

Bottom Connectors
RS485 Terminals
• Rear connector
• TX- RS485 negative transmit signal
• RX- RS485 negative receive signal
• T- Negative termination
• Front connector
• TX+ RS485 positive transmit signal
• RX+ RS485 positive receive signal
• T+ Positive termination

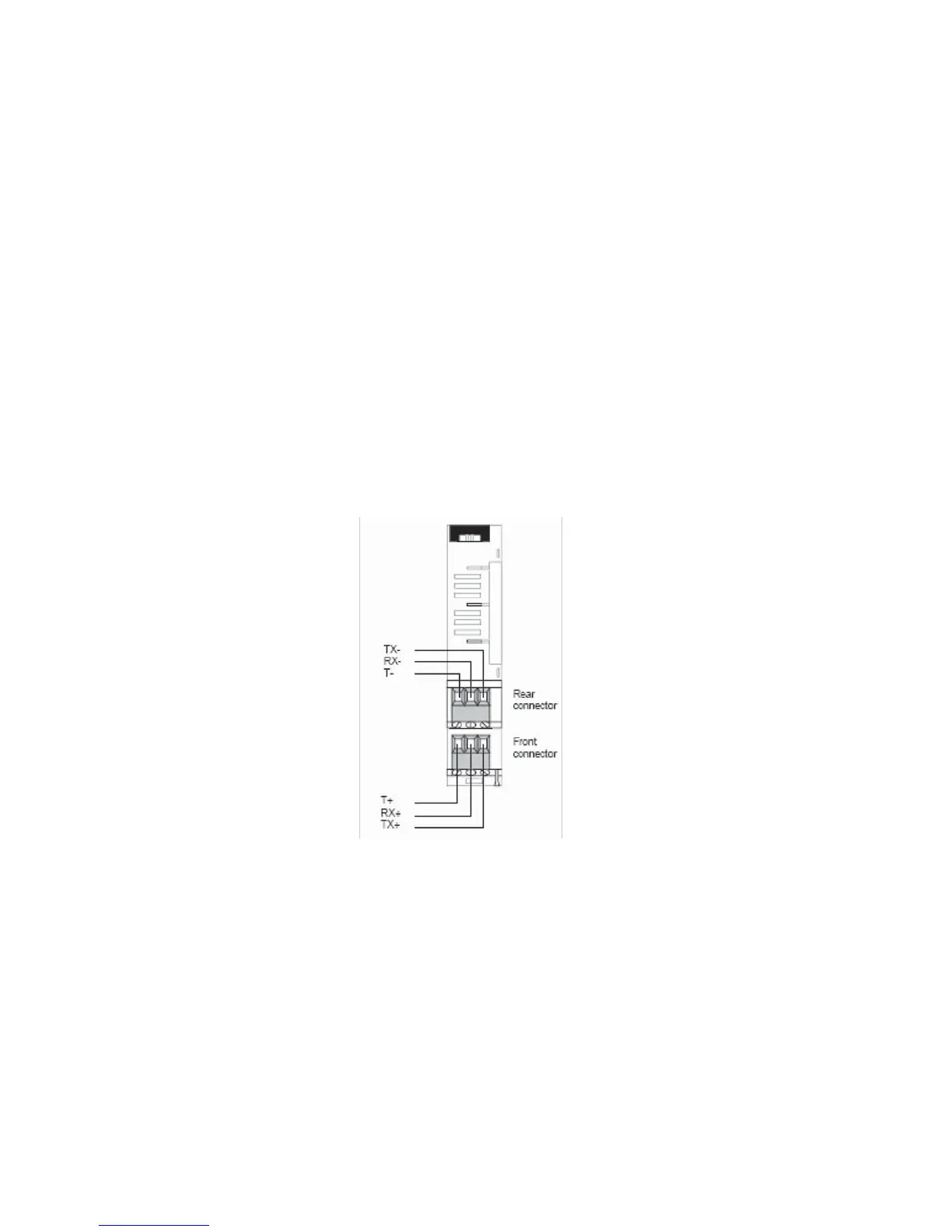

Figure 2-7. Bottom Connectors
2-7
