Hach sc200 User Manual

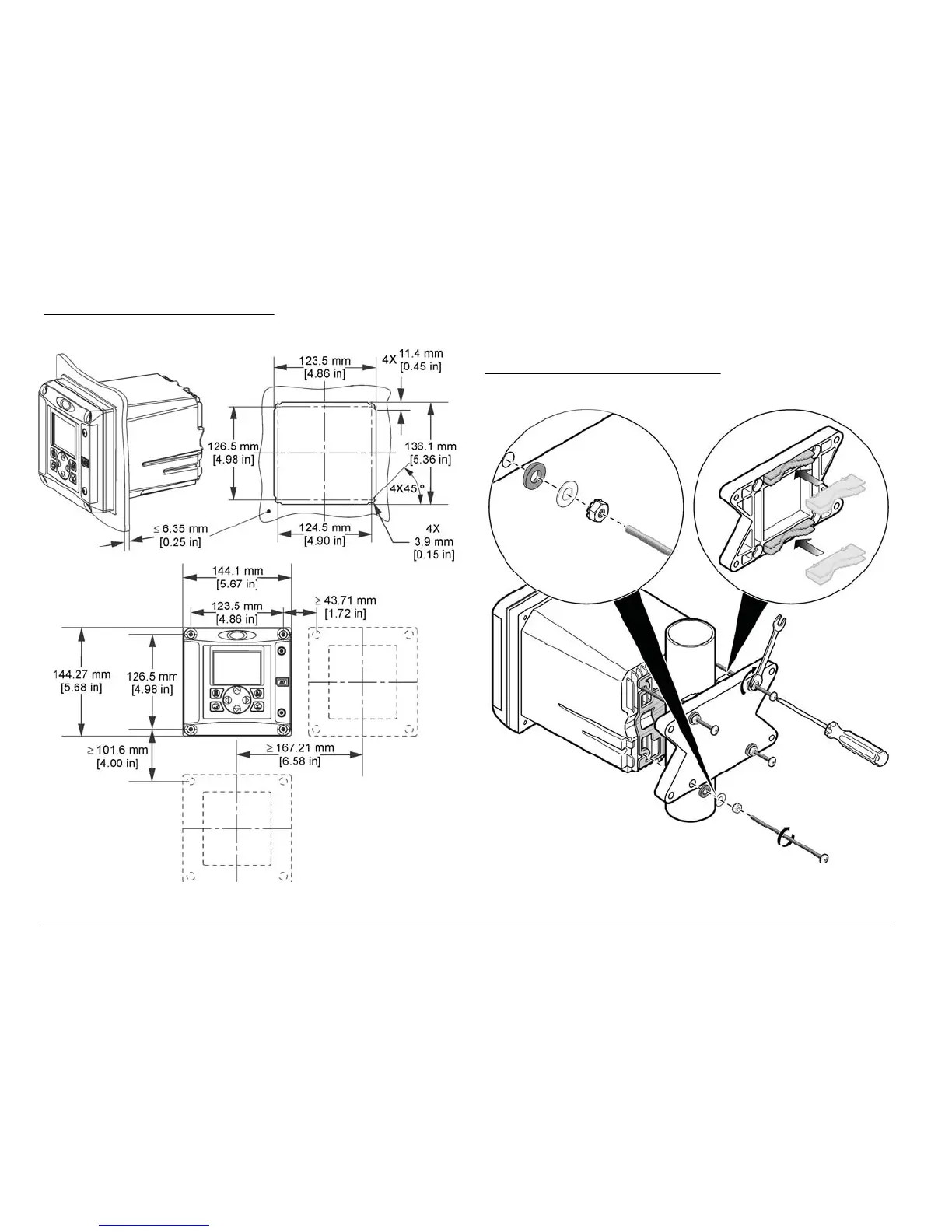

Figure 4 Panel mounting dimensions
1ote If using tKe EracNet optional for panel Pounting pusK tKe controller tKrougK
tKe Kole in tKe panel and tKen slide tKe EracNet over tKe controller on tKe EacN side
of tKe panel. Use tKe four 15 PP pan Kead screZs supplied to attacK tKe EracNet
to tKe controller and secure tKe controller to tKe panel.
Figure 5 Pipe mounting (vertical pipe)
10 (nglisK

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
