RV0xx Series Routers Quick Start Guide 3
RV042 and RV042G Status Lights
RV082 Ports and Status Lights
RV016 Ports and Status Lights
Ports
Port Description
Internet (RV042 and
RV082) or Internet
1-2 (RV016)
Use this port to connect the router to a
broadband network device.
DMZ/Internet
(RV042 and RV082)
Use this port to connect the router to either a
second broadband network device or a DMZ
host such as a web server or FTP server. A DMZ
allows public Internet traffic to access a specified
computer on your network without exposing your
LAN.
DMZ (RV016) Use this port to connect the router to a DMZ host
such as a web server or FTP server. A DMZ
allows public Internet traffic to access a specified
computer on your network without exposing your
LAN.

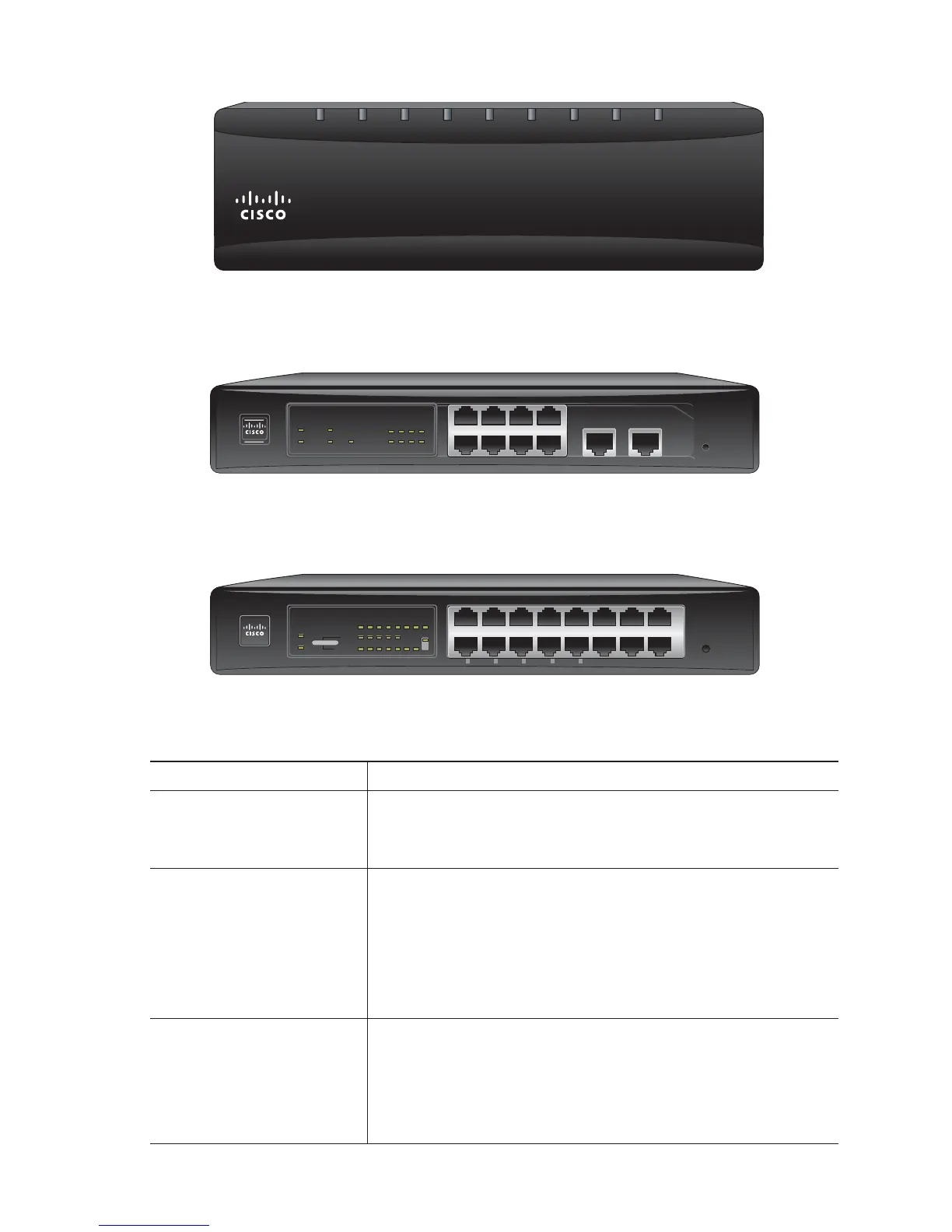

Cisco Small Business RV042
System DIAG DMZ/
Internet
DMZMode 1 2 3 4Internet
278822
278824
12 3 4
56 7 8
DMZ/Internet Internet
1234
5678
DIAG
System
Internet
DMZ
Internet
DMZ
Mode
Cisco Small Business
RV082
10/100
16-Port VPN Router
278826
Cisco Small Business
RV016
10/100
16-Port VPN
12345678
97 106 115 124 133
Internet 2 Internet 1 DMZ
12345678
910111213
7654321
DIAG
System
LAN/Act
LAN/Act
Internet/Act
Internet Internet
Dual-Function Ports
DMZ
