80459-641-01E Model 6 Motor Control Centers

10/2012 Section 4—Installing the MCC

ENGLISH

3. Reinstall the two left bolts through the splice links and into the horizontal

bus (see Figure 38); make sure the original conical washers are

reinstalled with the concave side facing the splice bus (see Figure 39).

4. Torque all bolts on both ends to 31–32 lb-ft (41.87–43.22 N•m)

(see Figure 40).

5. Return to Step 2 on page 35 for all phases and for the neutral bus (if

supplied). When all splices are complete, go to Step 6.

6. Before energizing the equipment, slide the horizontal bus barriers into

the closed position and replace all covers.

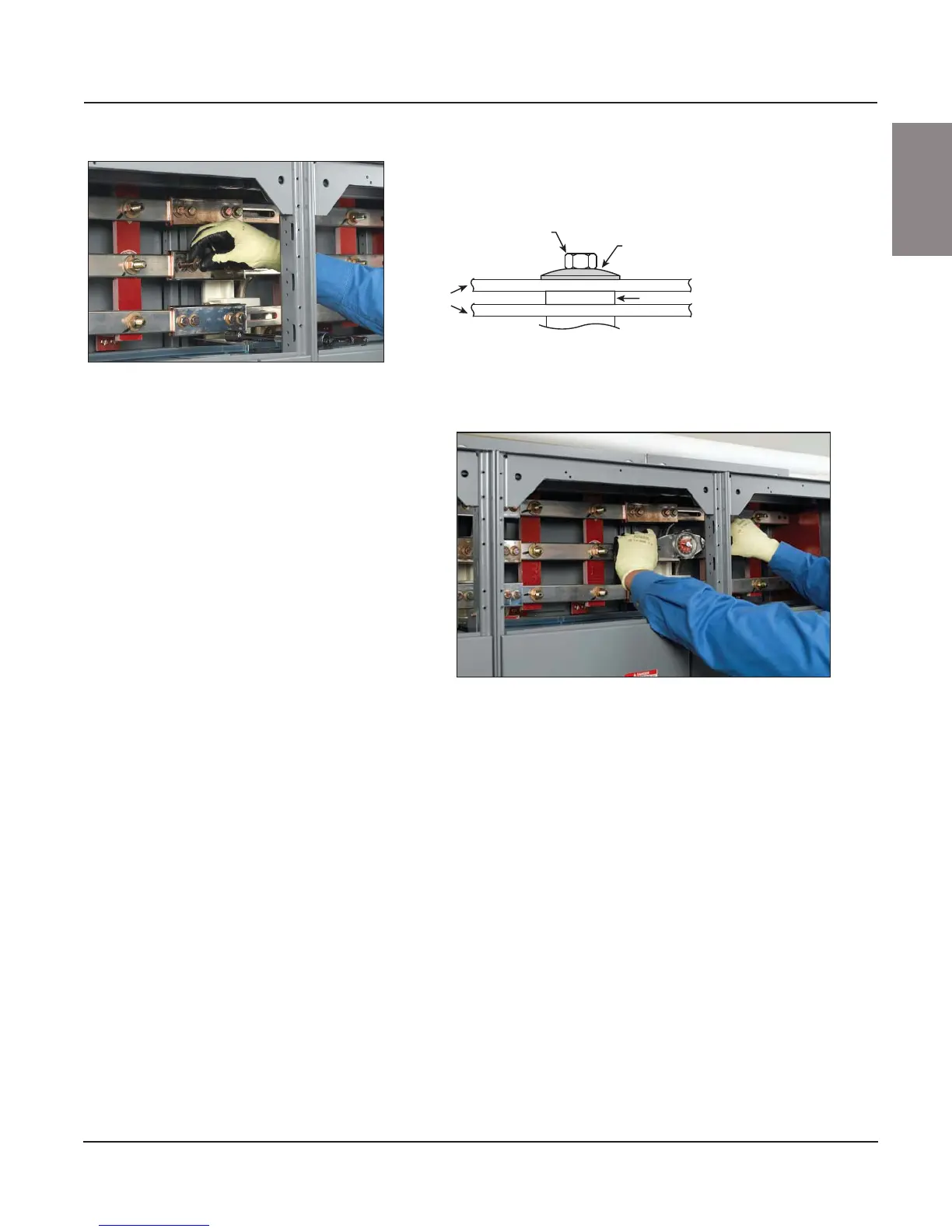

Figure 38: Inserting the Splice Bolts

Figure 39: Placing a Conical Washer Under the Bolt Head

Figure 40: Torquing the Bolts

Bolt

head Conical

washer

Spacer

Bus bars
