Logarithmic output mode

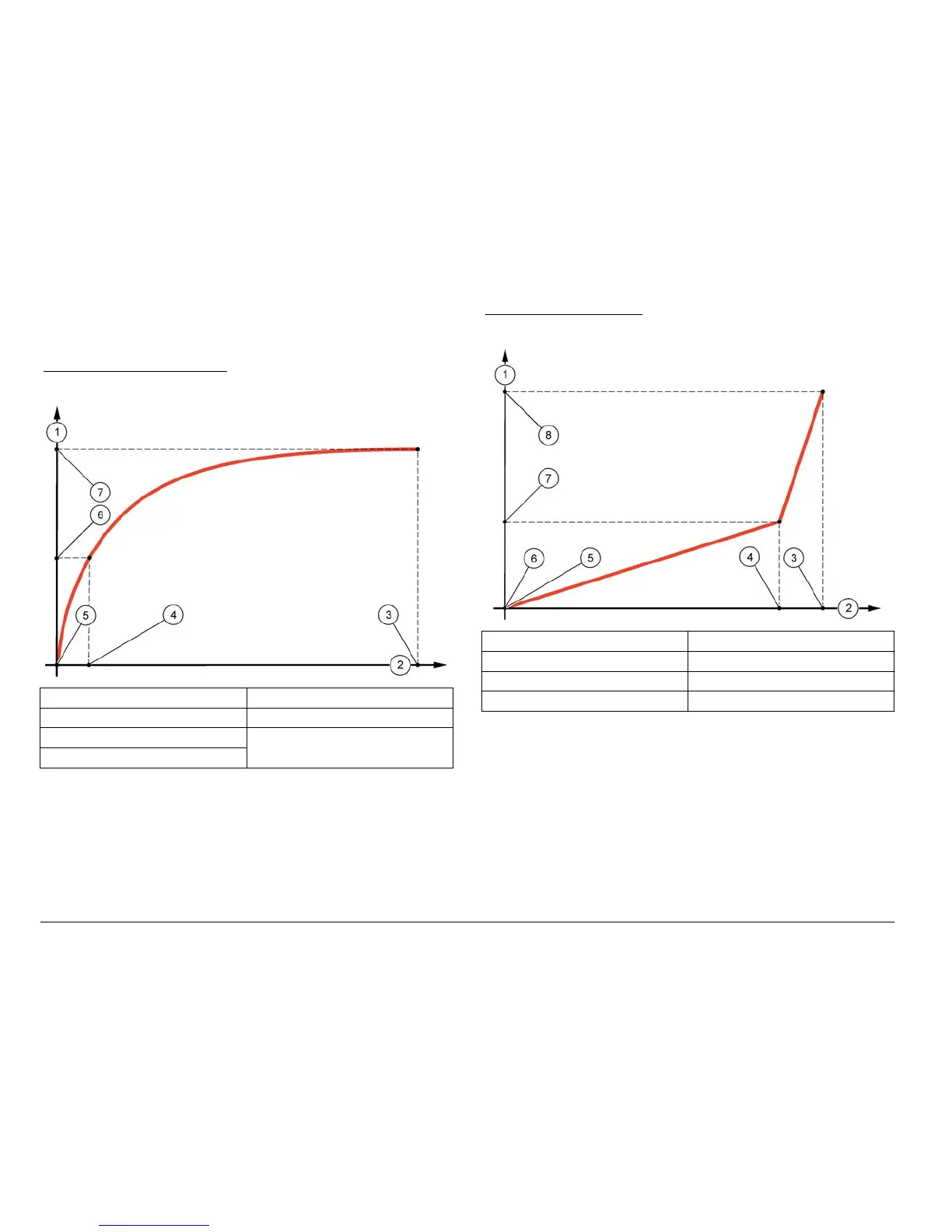

Figure 15 shows in graph form the operation of the logarithmic output

mode.

Figure 15 Logarithmic output

1 Output current axis 5 Minimum output current (0-4 mA)

2 Source value axis 6 50% output current

3 High value 7 Maximum output current (20 mA)

4 50% value

Bilinear output mode

Figure 16

shows in graph form the operation of the bilinear output mode.

Figure 16 Bilinear output

1 Output current axis 5 Low value

2 Source value axis 6 Minimum output current (0-4 mA)

3 High value 7 Knee point current

4 Knee point value 8 Maximum output current (20 mA)

Configure relays

The Normally Open (NO) and Common (COM) relay contacts will be

connected when an alarm or other condition is active. The Normally

Closed (NC) and Common relay contacts will be connected when an

alarm or other condition is inactive (unless the Fail Safe is set to Yes), or

when power is removed from the controller. To select a menu option,

highlight the option and push ENTER.

1. From the sc200 Setup menu, select Relay Setup.

2. Select a relay from the list.

28 (nglisK
