48049-251-01 M-frame Circuit Breakers
02/2006
© 2003–2006 Schneider Electric All Rights Reserved
7
ENGLISH
INSTALL ACCESSORIES This subsection applies if circuit breaker has factory-installed or field-
installed accessories.
Install Accessories and Control Wiring

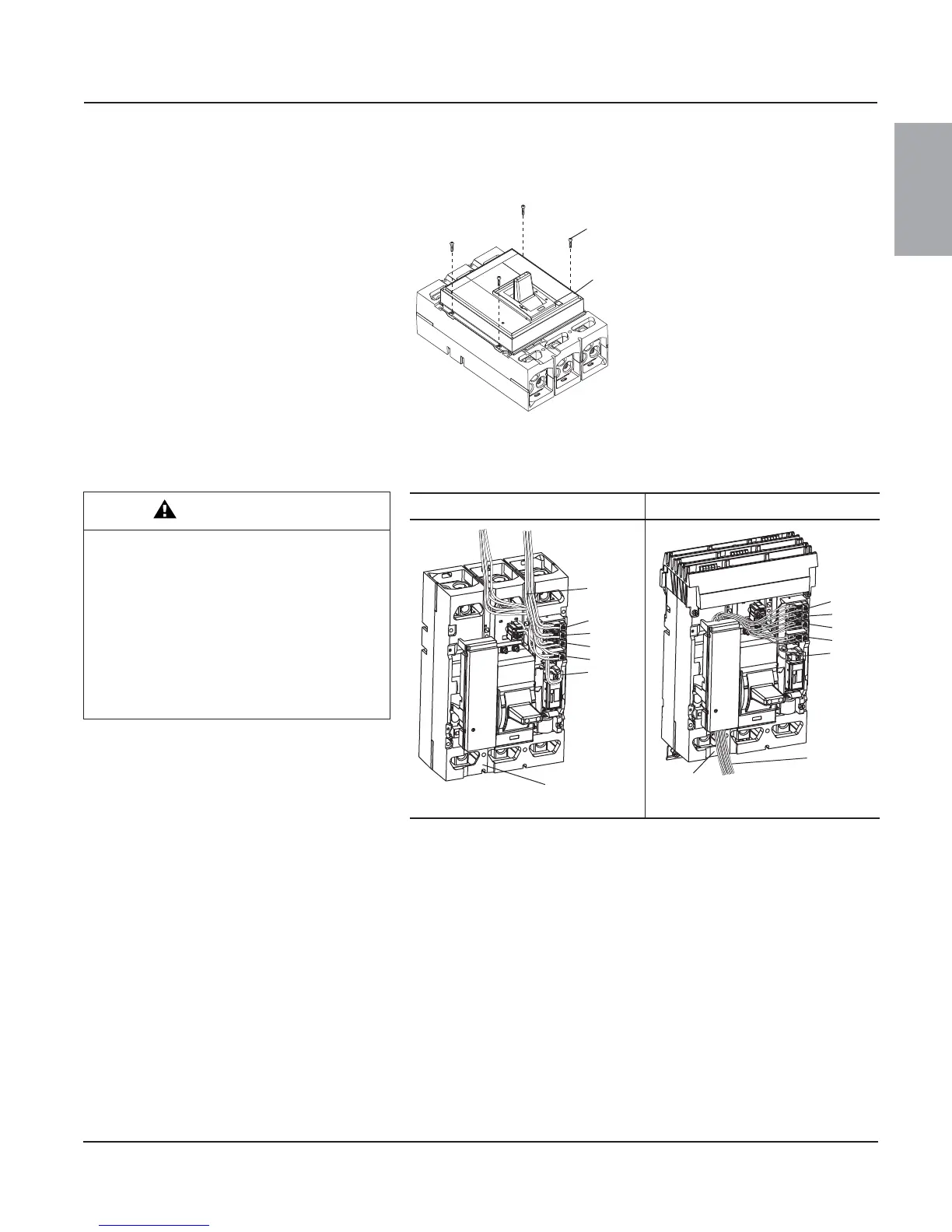

Remove Accessory Cover
1. Make sure circuit breaker is in tripped or off
position.
2. Loosen four accessory cover screws (A) and
remove accessory cover (B).
Figure 14: Remove Accessory Cover
06123225
A
B
WARNING
HAZARD OF SHOCK, EXPLOSION OR
EQUIPMENT DAMAGE
Wires (A) must be routed as shown. Do not
route wires below handle or around outside rim
of circuit breaker. Wires exiting from off end of
circuit breaker must be routed beneath trip unit
(see label B).
Failure to follow this instruction can result
in injury or equipment damage.
1. Install field-installable circuit breaker
accessories as instructed in the instructions
packed with each accessory.
2. Install control wiring (A) to accessories.
Torque terminal screws to 10 lb-in (1.2 N•m).
Table 3: Accessory Control Wiring
Individually-mounted Circuit Breaker I-Line Circuit Breaker
06123087
OF1
OF2
OF3
SD
MX/MN
A
B
06123088
OF1
OF2
OF3
SD
MX/MN
A
B
