M-frame Circuit Breakers 48049-251-01
02/2006
© 2003–2006 Schneider Electric All Rights Reserved6
ENGLISH

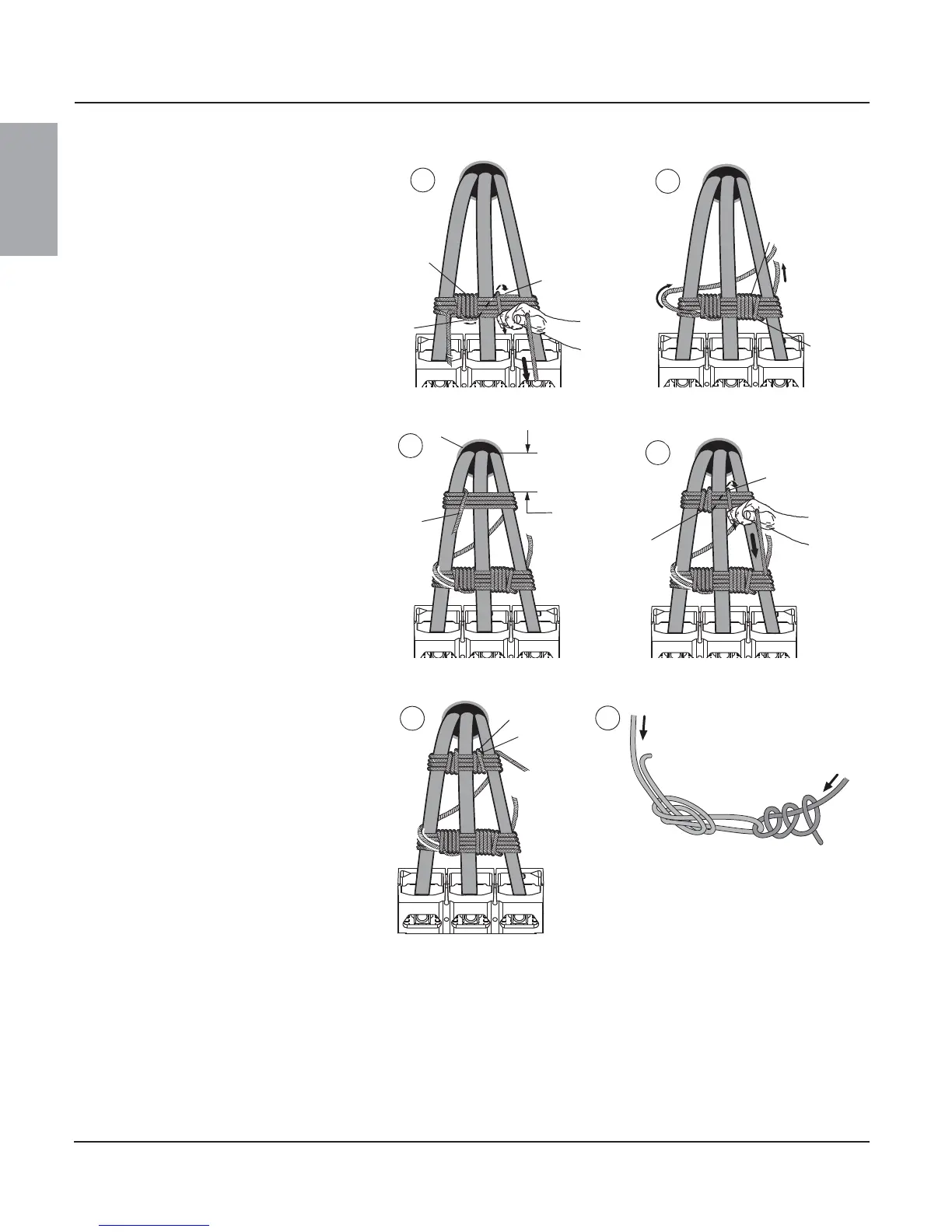

2. Wrap rope (A) several times until space
between first two sets of conductors is
completely filled. Weave final rope loop
underneath previous loop (B). Bring rope (C)
through right-hand space. Pull rope taut.
3. Wrap rope (D) several times until space
between second and third set of conductors
is completely filled. Weave final rope loop (E)
underneath previous loop as shown. Pull
rope taut.
Figure 11: Wrap Rope
4. Wrap rope four times around conductors
4 in. (102 mm) below where conductors exit
enclosure (A). Pull rope (B) taut.
5. Wrap rope (C) several times until space
between first two sets of conductors is
completely filled. Bring rope (D) through
right-hand space. Pull rope taut.
Figure 12: Wrap Conductors
6. Wrap rope (A) several times until space
between second and third set of conductors
is completely filled. Weave final rope loop (B)
underneath previous loop as shown. Pull
rope taut.
7. Tie rope End 1 and End 2 together as
shown. Rope must be taut. Cut off excess
rope and tape ends to prevent fraying.
Figure 13: Wrap Rope
06123220
06123219
C
A
B
D
E
2
3
06123222
06123221
4 in.
[102 mm]
A
B
D
C
4
5
06123223
06123007
End 1
End 2
End 1
End 2
A
B
6
7

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
