Hach sc200 - Wiring Connections Overview

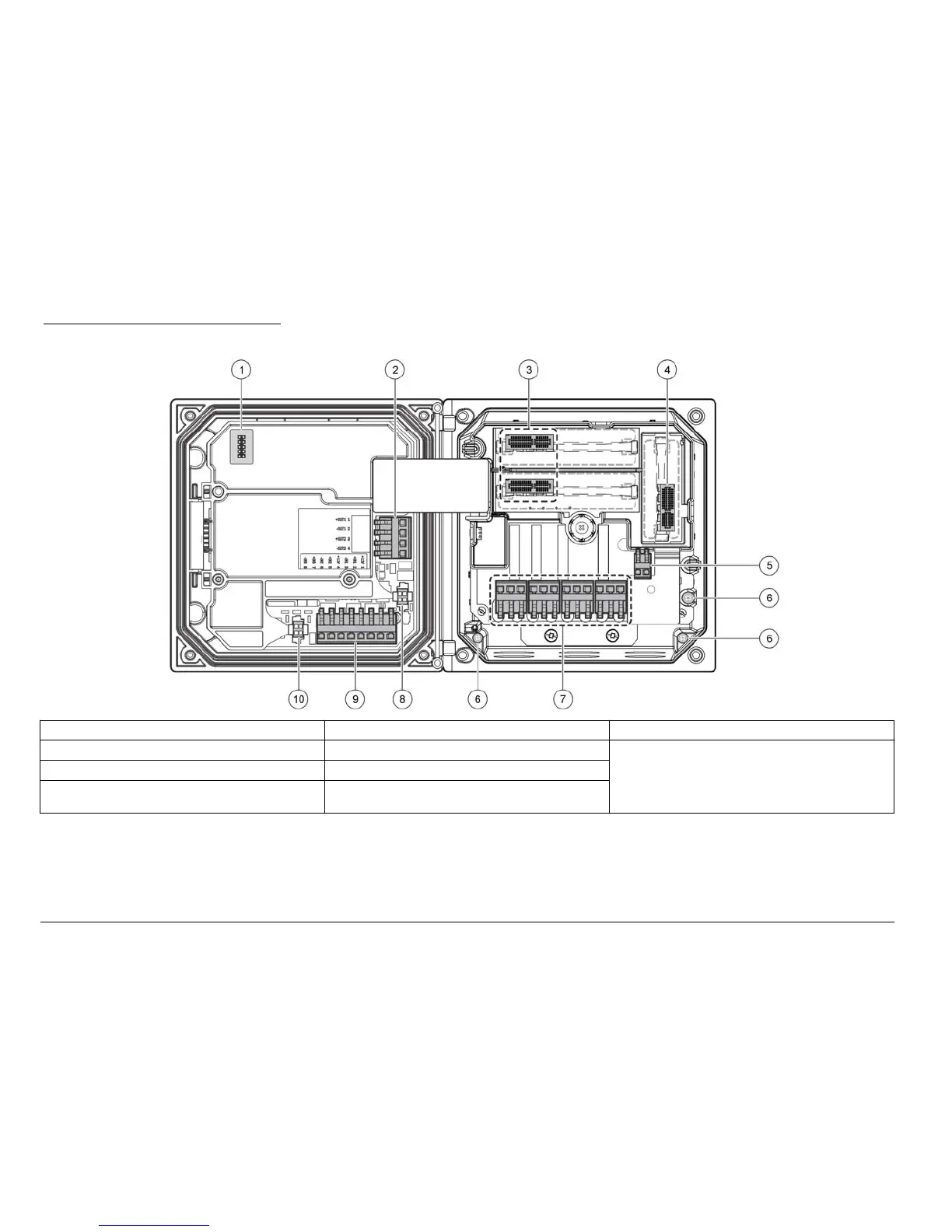

Figure 7 Wiring connections overview
1 Service cable connection 5 AC and DC power connector
1
9 Discrete input wiring connector
1
2 4-20 mA output
1
6 Ground terminals 10 Digital sensor connector
1
3 Sensor module connector 7 Relay connections
1
4 Communication module connector (e.g., Modbus,
Profibus, HART, optional 4-20 mA module, etc.)
8 Digital sensor connector
1
1
Terminals can be removed for improved access.
