Sixnet Slim Line Switch Installation Guide Page 12 of 30
Dia. 0.15"
(0.38 cm)
Use for direct
panel mounting
to a flat surface
3.95"
[10.03 cm]
1.98"
[5.02 cm]
1.98"
[5.02 cm]
1.00"
[2.54 cm]
1.50"
[3.81 cm]
3.26"
[8.28 cm]
4.20"
[10.67 cm]
0.40" (1.02 cm)
Typical for
SC or ST fiber
Removable Screw Block
Snaps to standard
DIN rail EN50022
(35 mm)
2/3/5
Ports
6/8/9
Ports
1.01"
[2.57 cm]
1.01"
[2.57 cm]
0.06"
[0.15 cm]
2.90"
[7.35 cm]

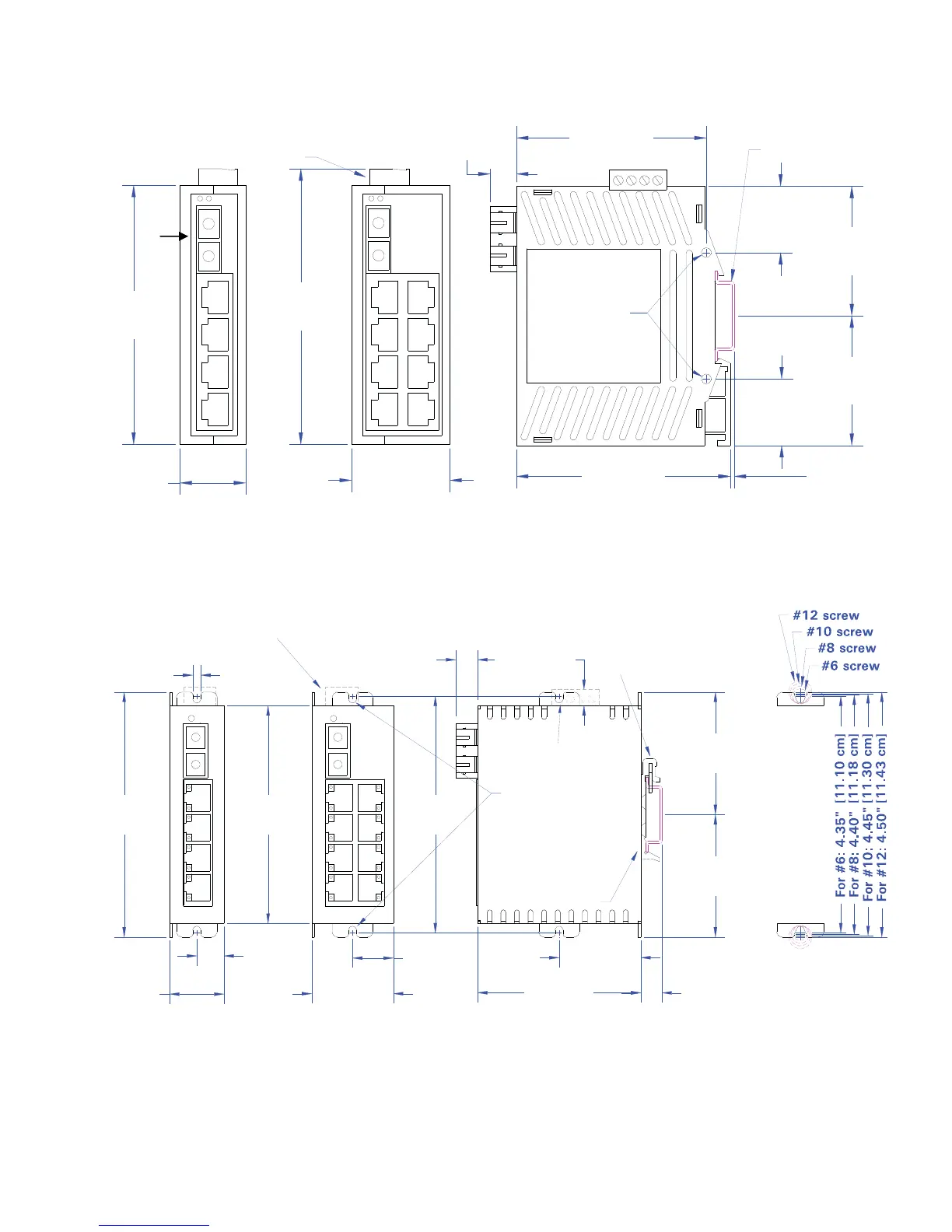

Mechanical Dimensions for SL-2/3/5/6/8/9ES-1/2/3
in Lexan Packaging
Use for direct panel
mounting to a flat
surface with up to
#8 screw for older
units or up to #12
for newer units
(see guide to right)
4.00"
[10.16 cm]
4.50"
[11.43 cm]
4.35"
[11.05 cm]
2.25"
[5.71 cm]
2.25"
[5.71 cm]
Typical for
SC or ST fiber
0.40" (1.02 cm)
Snaps to standard
DIN rail EN50022
(35 mm)
Removable Screw Block
1.50"
[3.81 cm]
3.00"
[7.62 cm]
0.30"
[0.76 cm]
0.39"
[0.99 cm]
2/3/5
Ports
6/8/9
Ports
C
Removable
for direct panel
mounting
1.10"
[2.79 cm]
0.55"
[1.40 cm]
1.60"
[4.06 cm]
0.80"
[2.03 cm]
0.175"
[0.44 cm]
SLX
Panel mounting ears on
newer models accept
up to a #12 screw
Direct to panel
mounting guide
Mechanical Dimensions for SLX-2/3/5/6/8/9ES-1/2/3
in Metal Packaging

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
