Sixnet Slim Line Switch Installation Guide Page 11 of 30
SL/SLX-#MS and -#MG models in metal case with metal DIN rail clip:
Mounting
Removal

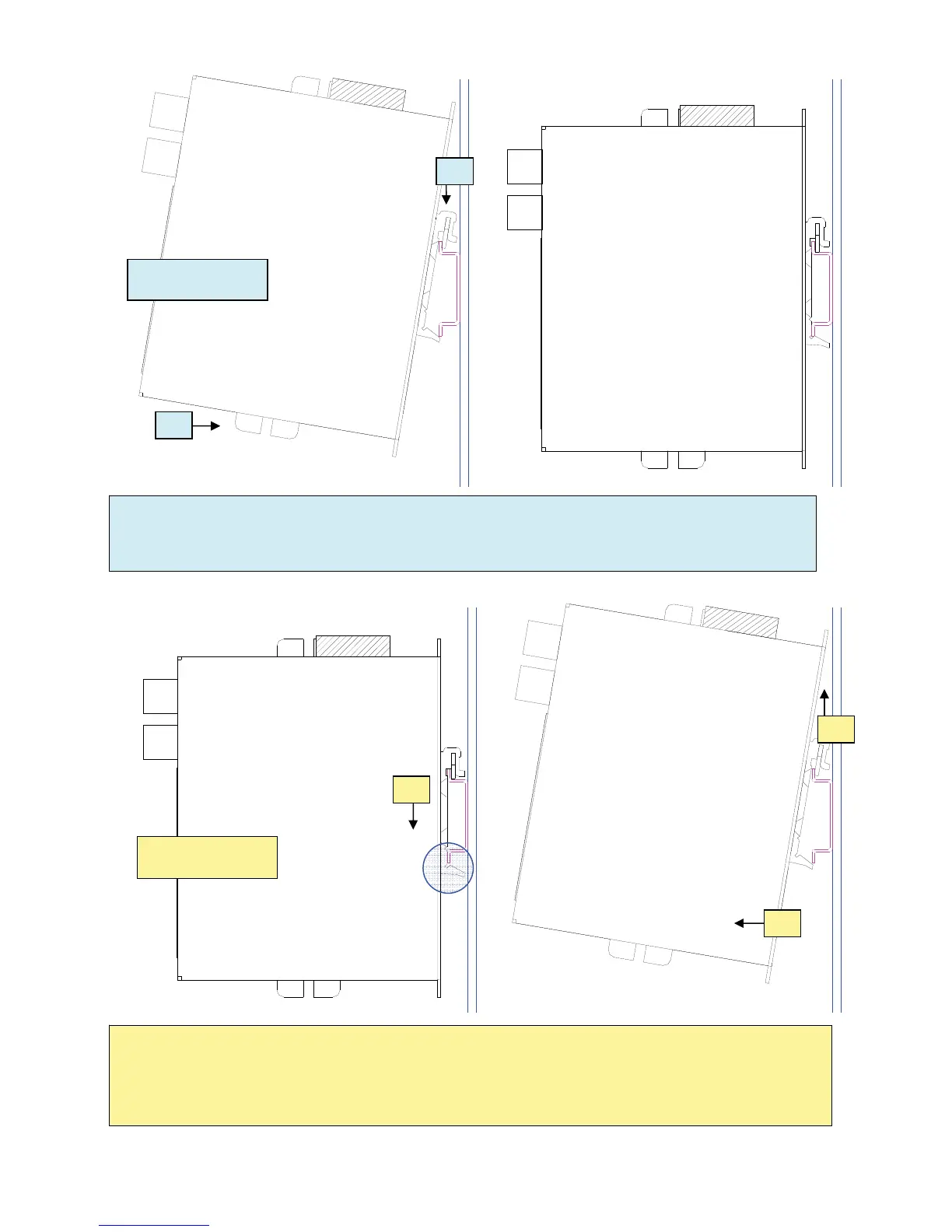

Recommended DIN rail mounting steps:
1. Hook the top back of the DIN rail clip on the unit over the din rail.
2. Push the bottom of the unit towards the DIN rail until it snaps into place.
Recommended DIN rail removal steps:
A. Push the whole unit down to free the bottom of the DIN rail clip. See blue circle area.
B. Pull the bottom of the unit away from the DIN rail.
C. Unhook the top of unit and remove it from the DIN rail.
