INSTALLATION

Eaton

9130 UPS (700–3000 VA) User's Guide S 164201718 Rev 3 www.eaton.com/powerquality

13. Optional. Insert a rear stop bracket through the inside of each rail

behind the UPS. Rotate each bracket and slide the bracket until it

fits tightly against the UPS's rear panel. Secure each bracket to the

UPS with one M3

8 pan-head screw. See Figure 8.

Repeat for any optional cabinets.

14. Continue to the following section, “Rackmount Wiring Installation.”

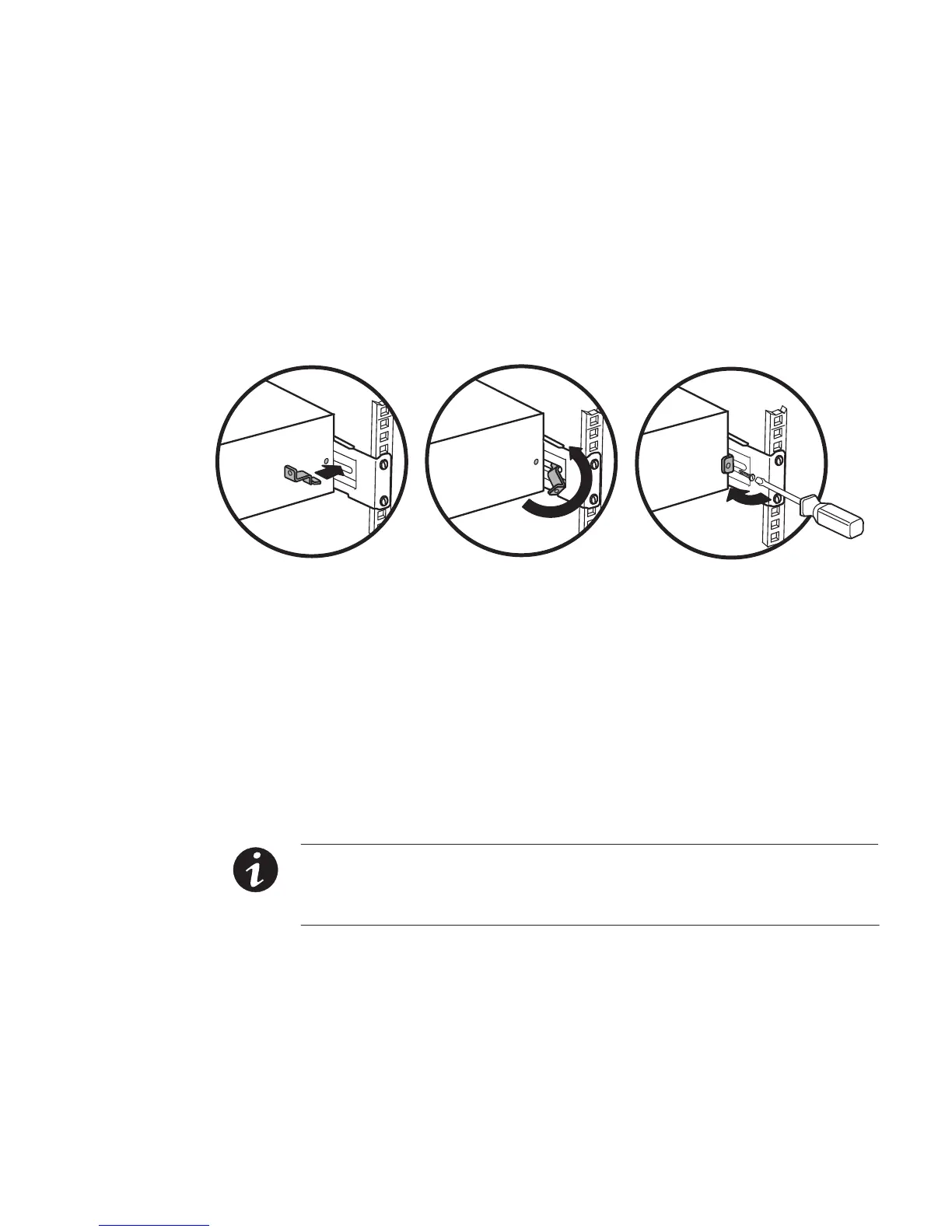

Rear Stop Bracket M3 8 Pan-Head Screw

Figure 8. Securing the Back of the Cabinet (Optional)

Rackmount Wiring Installation

This section explains:

S Installing the UPS, including connecting the UPS internal batteries

S Connecting any optional EBMs

Installing the UPS

NOTE Do not make unauthorized changes to the UPS; otherwise, damage may occur to

your equipment and void your warranty.

NOTE Do not connect the UPS power cord to utility until after installation is completed.

To install the UPS:

1. Remove the UPS right front cover (behind the LCD control panel).

See Figure 9.

To remove the cover, remove and retain the two screws on the

right side of the cover. Grasp the top and bottom of the cover and

slide the cover to the right.
