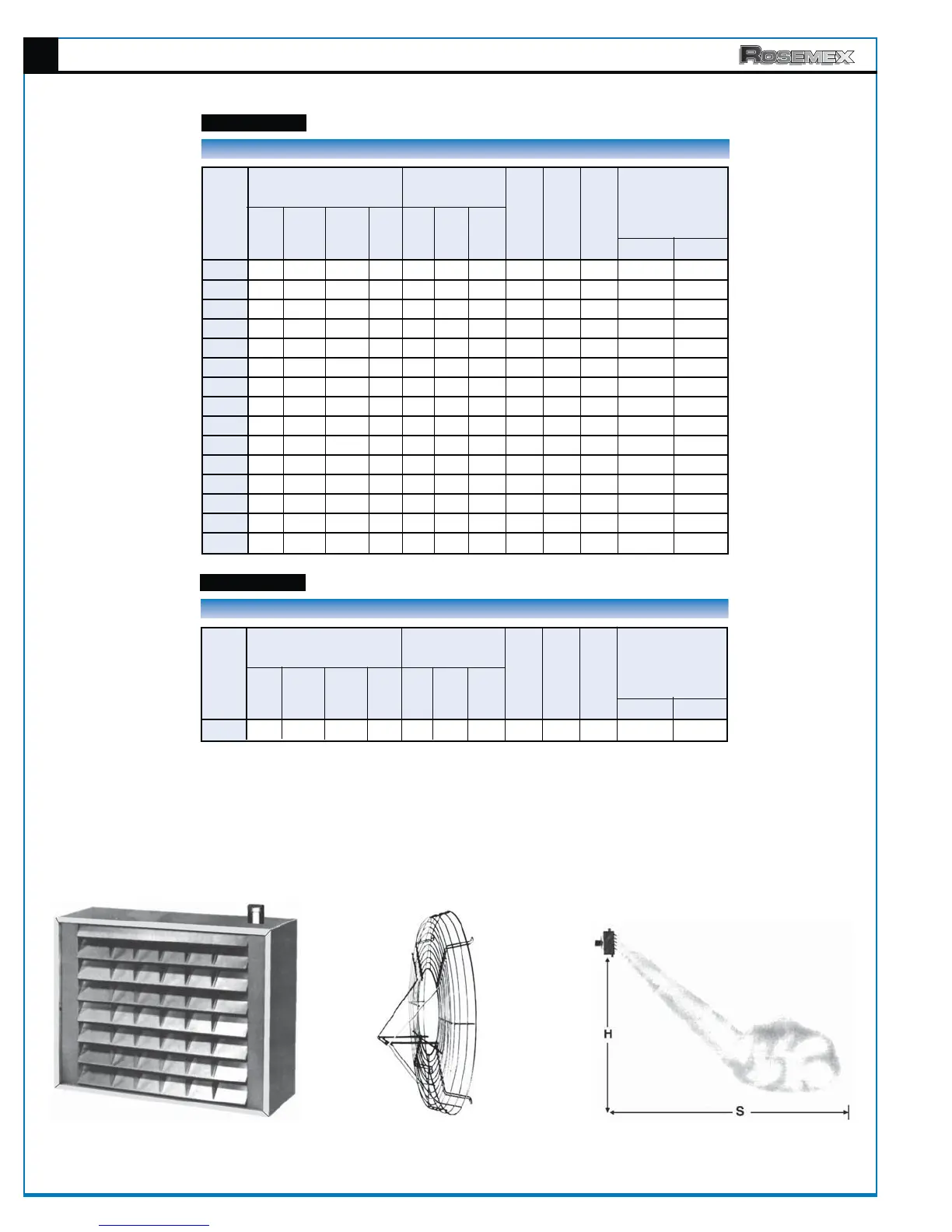

UNIT HEATERS
STEAM CAPACITIES HORIZONTAL PROJECTION
4
SPREAD
MOTOR MOUNT
ALL UNITS c/w
4 WAY LOUVER FIN DIFFUSER
MODEL H
HS-25 109 27.2 26.2 113 1/20 1000 0.94 460 483 1 9 24
HS-31 130 32.3 31.2 102 1/20 1550 0.94 680 714 1 9 38
HS-39 162 40.3 38.9 121 1/20 1000 0.94 595 495 1 9 21
HS-47 193 48.0 46.4 109 1/20 1550 0.94 880 683 1 9 30
HS-43 174 43.4 41.9 114 1/12 1000 1.50 725 559 1 9 24
HS-51 213 53.0 51.2 102 1/12 1550 1.50 1120 756 2 9 41
HS-73 301 74.8 72.3 104 1/6 1075 2.00 1525 800 2 12 38
HS-95 396 98.4 95.1 109 1/6 1075 2.00 1800 442 2 14 46
HS-97 405 100.1 97.3 113 1/4 820 2.50 1685 540 2 14 43
HS-113 473 117.4 113.4 104 1/4 1100 2.50 2400 772 2 14 52
HS-117 490 121.9 117.7 113 1/4 850 3.60 2060 540 2 14 42
HS-137 572 142.0 137.2 103 1/4 1075 3.60 2930 772 2 14 50
HS-175 729 182.0 175.0 120 1/3 820 4.90 2690 467 3 15 49
HS-205 851 211.2 204.2 109 1/3 1100 4.90 3830 667 4 15 59
HS-265 1106 274.7 265.4 109 1/2 1075 10.10 5000 672 4 16 63
STEAM UNIT HEATERS (LESS THAN 15 PSI)
TABLE 1
STEAM - 2 PSIG
ENT. AIR - 60°F
MOTOR
115V/1/60
CAT.
No
EDR
COND.
lb/h
MBH
FIN.
TEMP.
NOM.
HP
NOM.
RPM
NOM.
AMP.
CFM @ 60°F
OUTLET
VELOCITY
SOUND
CLASS
SPREAD
STEAM
2 PSIG
HS
HS-420 1660 412.3 398.4 120 1 1140 1.40 6150 775 4 16 68
STEAM UNIT HEATERS (LESS THAN 15 PSI)
TABLE 2
STEAM - 2 PSIG
ENT. AIR - 60°F
MOTOR
575/3/60
CAT.
No
EDR
COND.
lb/h
MBH
FIN.
TEMP.
NOM.
HP
NOM.
RPM
NOM.
AMP.
CFM @ 60°F
OUTLET
VELOCITY
SOUND
CLASS
SPREAD
STEAM
2 PSIG
H
S
A. All units with 0.035” Red Brass Tubes, 5/8” outside diameter mechanically bounded to alluminum fins.
B. Higher steam pressure units available on request.
