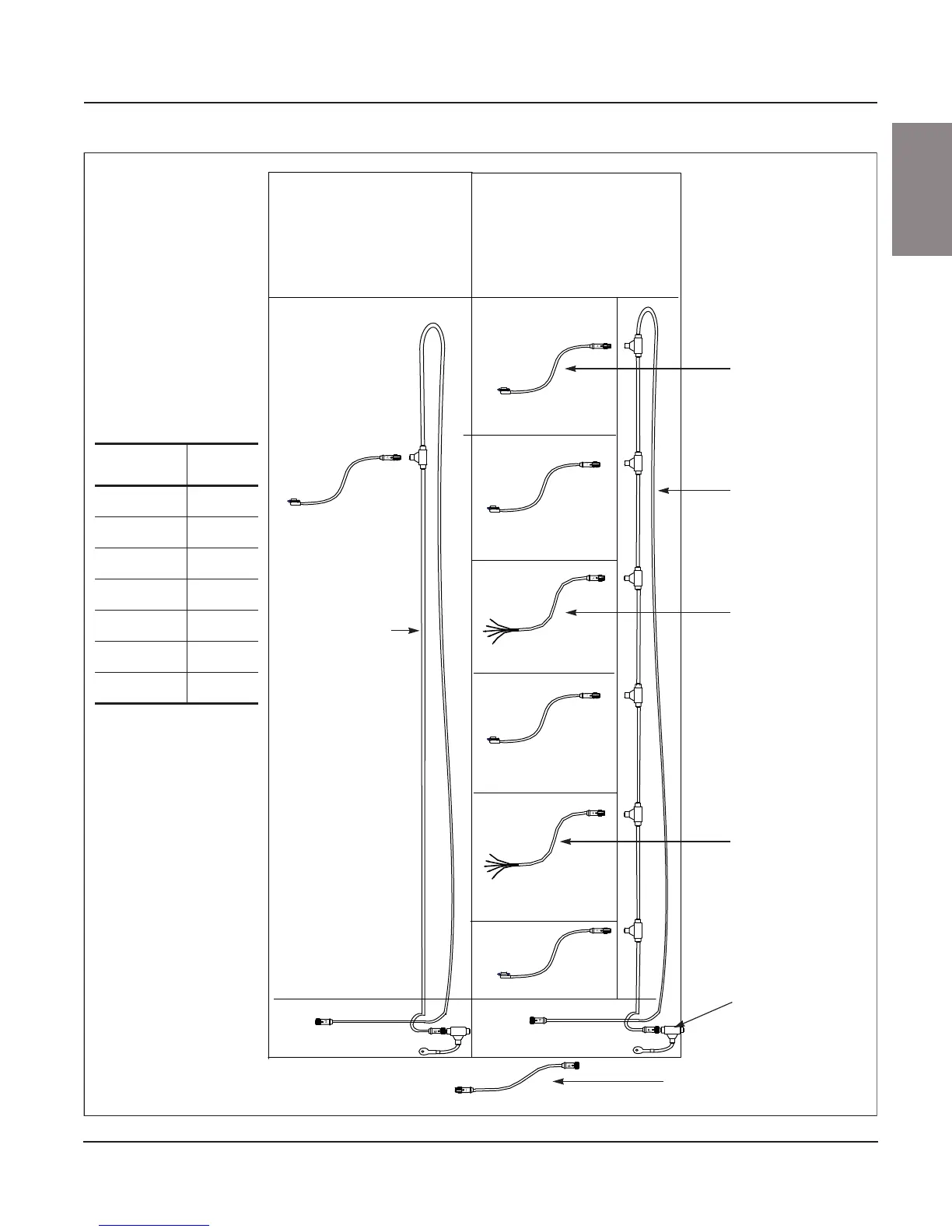

Figure 110: Typical Cabling Scheme for PROFIBUS
Section 1 Section 2
Single tap trunk cable
(5000129-295)
ATV61/71 9-pin connector
cable (5000129-140)
6-tap trunk cable assembly
(5000129-83)
Device cable
(5000129-75)
20 in. (508 mm) extension (optional)
5000129-76
ATS48 cable
(5000129-75)
Grounding tee
(5000129-230)
NOTE: Shield must be grounded
in all sections.
Orderable
Item
Part
Number
Cap for unused
male end or tap
3463512-1
Cap for unused
female end or tap
3463512-3
20 in. (508 mm)
trunk extension
5000129-76
25 in. (635 mm)
trunk extension
5000129-78
30 in. (762 mm)
trunk extension
5000129-79
35 in. (889 mm)
trunk extension
5000129-80
25 ft. (10.7 m)
cable extension
5000129-81
NOTE: The network
is terminated in a
Termination Unit.
