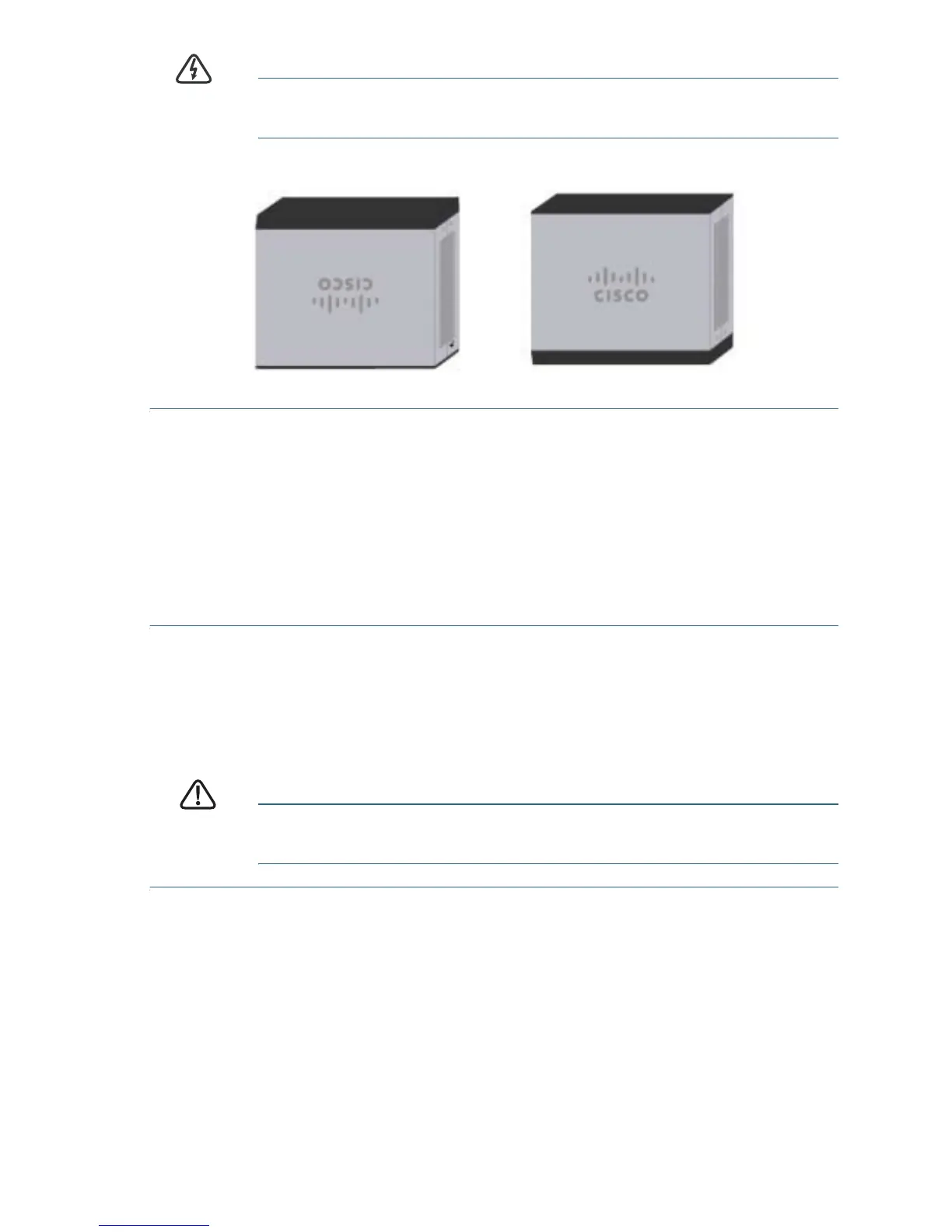

RV0xx Series Routers Quick Start Guide 7

WARNING

For safety, ensure that the heat dissipation holes are facing

sideways

STEP 1 Drill two pilot holes into the surface.

• RV042 and RV042G: 58 mm apart

• RV082 and RV016: 94 mm apart

STEP 2 Insert a screw into each hole, leaving a gap between the surface

and the base of the screw head of 1 to 1.2 mm.

STEP 3 Place the router wall-mount slots over the screws and slide the

router down until the screws fit snugly into the wall-mount slots.

Rack Mounting RV082 or RV016

You can mount the RV082 or RV016 in a standard size, 19-inch (about 48

cm) wide rack. The router requires 1 rack unit (RU) of space, which is 1.75

inches (44.45mm) high. Mounting brackets are provided.

CAUTION Do not overload the power outlet or circuit when installing

multiple devices in a rack.

STEP 1 Place the router on a hard, flat surface.

STEP 2 Attach one of the supplied rack–mount brackets to one side of the

router with the supplied screws. Secure the bracket tightly.

STEP 3 Follow the same steps to attach the other bracket to the opposite

side.
