Hach sc200 User Manual

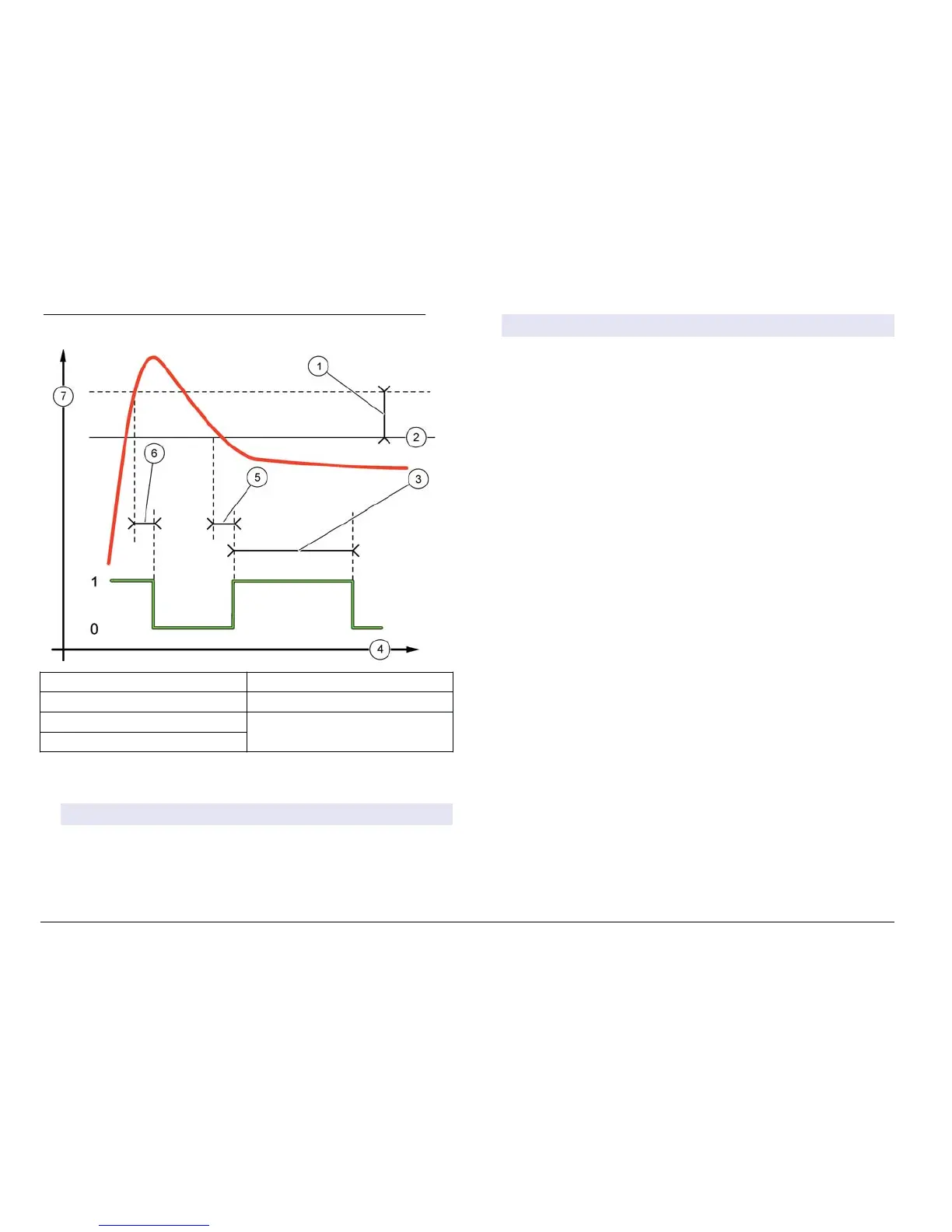

Figure 20 Feeder control function (Phase low, Overfeed timer)
1 Deadband 5 ON delay
2 Setpoint 6 OFF delay
3 Overfeed timer 7 Source (y-axis)
4 Time (x-axis)
• Event Control Function (refer to Figure 21, Figure 22 and
Figure 23)
Option Description
Set setpoint Sets the value where the relay will turn on.
Deadband Sets a hysteresis so the relay will not swing unregulated
when the process value converges to the setpoint.
Option Description
OnMax timer Sets the maximum time the relay can stay on independent
from the measured value (default: + 0 min).
OffMax timer Sets the maximum time the relay can stay off independent
from the measured value (default: + 0 min).
OnMin timer Sets the minimum time the relay can stay on independent
from the measured value (default: + 0 min).
OffMin timer Sets the minimum time the relay can stay off independent
from the measured value (default: + 0 min).
32 (nglisK

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
