INSTALLATION
Eaton
®
9130 UPS (700–3000 VA) User's Guide S 164201718 Rev 3 www.eaton.com/powerquality
31
C A U T I O N
A small amount of arcing may occur when connecting the internal batteries. This is normal
and will not harm personnel. Connect the cables quickly and firmly.
2. Connect the internal battery connector (see Figure 15).
Connect the white connectors together, connecting red to red, and
black to black. Press the two parts tightly together to ensure a
proper connection.

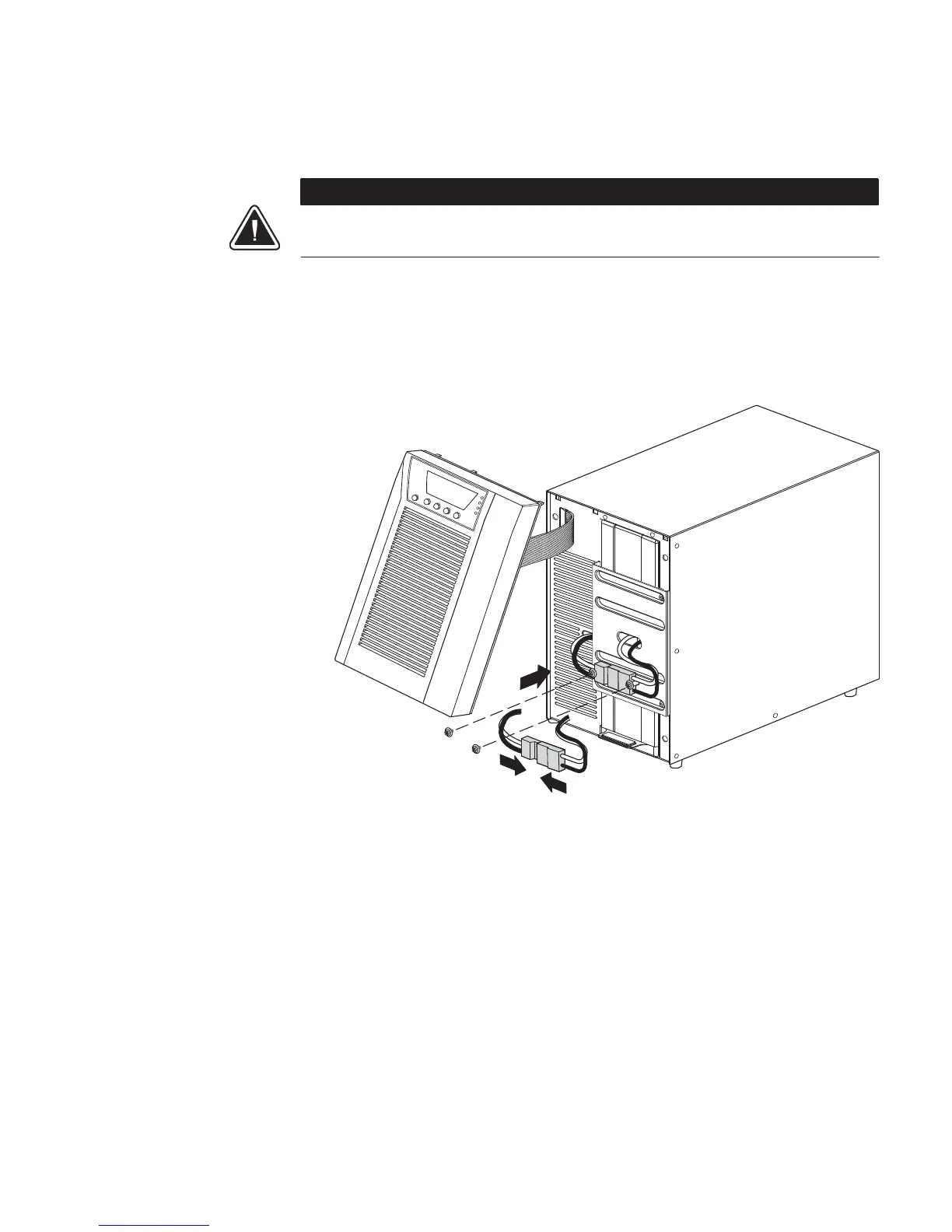

Figure 15. Connecting the UPS Internal Batteries
3. Remove the two screws from the screw mounts and retain (see
Figure 15).
4. Place the battery connector between the screw mounts. Reinstall
the two screws to hold the connector in place.
5. Replace the UPS front cover.
To replace the cover, verify that the ribbon cable is protected, then
insert the clips on the back of the cover into the cabinet and push
firmly to snap the cover into place.

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
