IDEC SmartAXIS Touch FT1A Series User Manual

1 Touch
29-6 SmartAXIS Touch User's Manual
● I/O Terminals
■ FT1A-*12RA
■ FT1A-*14KA/14SA
Terminal Arrangement

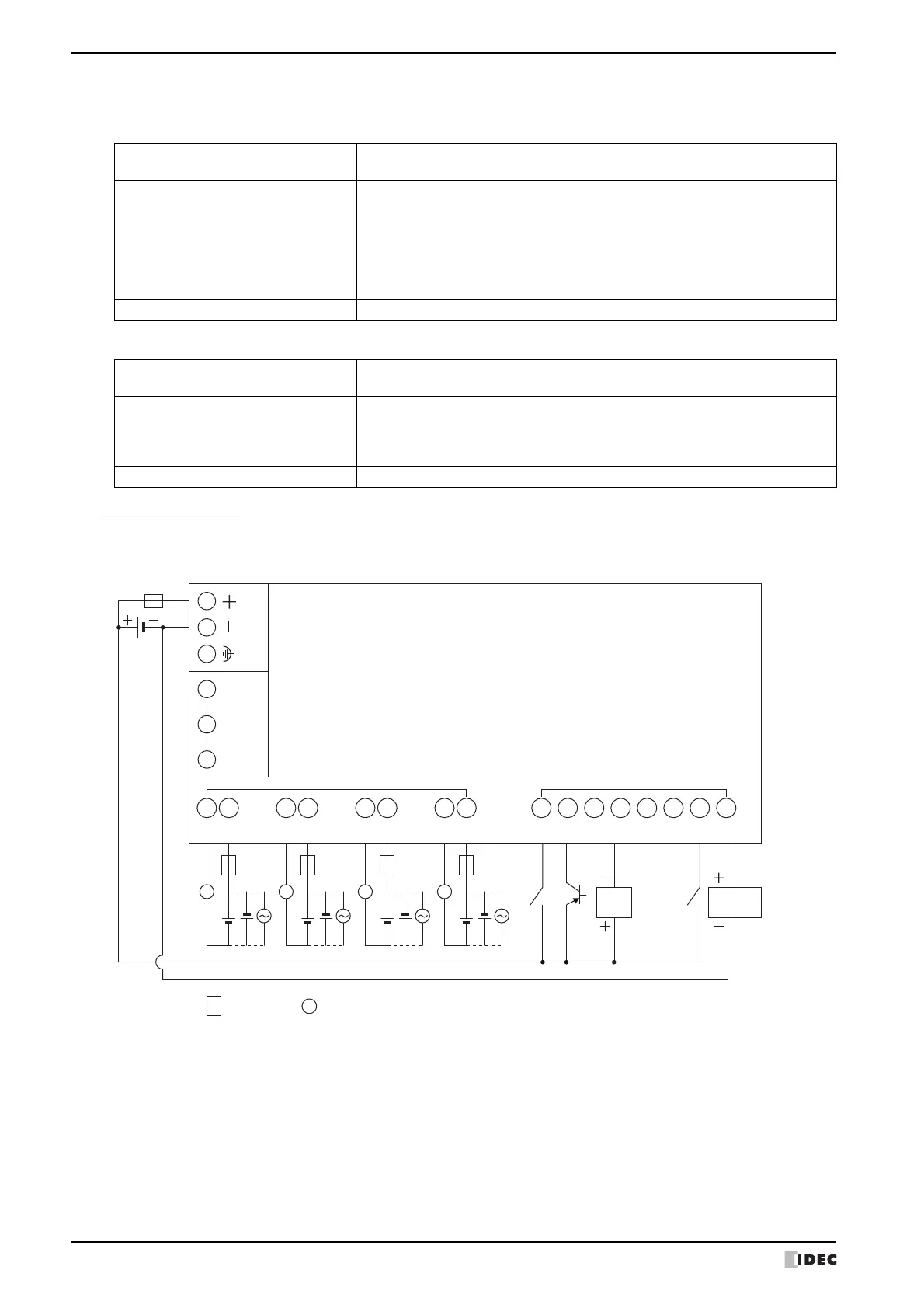

Terminal Arrangement and I/O Wiring Diagrams
■ FT1A-*12RA
Applicable cable
AWG16 to AWG22
Stripped wire length 6.5 mm, coating diameter 3.4 mm or lower (Solid wire)
Recommended ferrule
AI 0.34-8 TQ (For AWG22, For 1 wire)
AI 0.5-8 WH (For AWG20, For 1 wire)
AI 0.75-8 GY (For AWG18, For 1 wire)
AI 1-10 RD (For AWG18, For 1 wire)
AI 1.5-10 BK (For AWG16, For 1 wire)
AI TWIN 2 x 0.75 10GY (For AWG18, For 2 wires)
(Phoenix Contact)
Tightening Torque 0.5 to 0.6 N•m (Screwdriver SZS 0.6 x 3.5, Phoenix Contact)
Applicable cable
AWG20 to AWG22
Stripped wire length 5 mm, coating diameter 2.6 mm or lower (Solid wire)
Recommended ferrule
AI 0.34-8 TQ (For AWG22, For 1 wire)
AI 0.5-8 WH (For AWG20, For 1 wire)
AI-TWIN2 x 0.5-8 WH (For AWG20, For 2 wires)
(Phoenix Contact)
Tightening Torque 0.2 N•m (Screwdriver SZS 0.4 x 2.5, Phoenix Contact)
I0 I1 I2 I3 I4 I5 I6 I7
Analog voltage
output device
2-wire
Sensor
DC IN
Power supply terminal
9 RDB
5 SG
1 SD
Port
Q0 COM0 Q1 COM1 Q2 COM2 Q3 COM3
Ry OUT
L L L L
L
: Fuse : Load
