SmartAXIS Touch User’s Manual 9-1
9
Data Displays
This chapter describes how to configure the Data Display parts and their operation on the Touch.

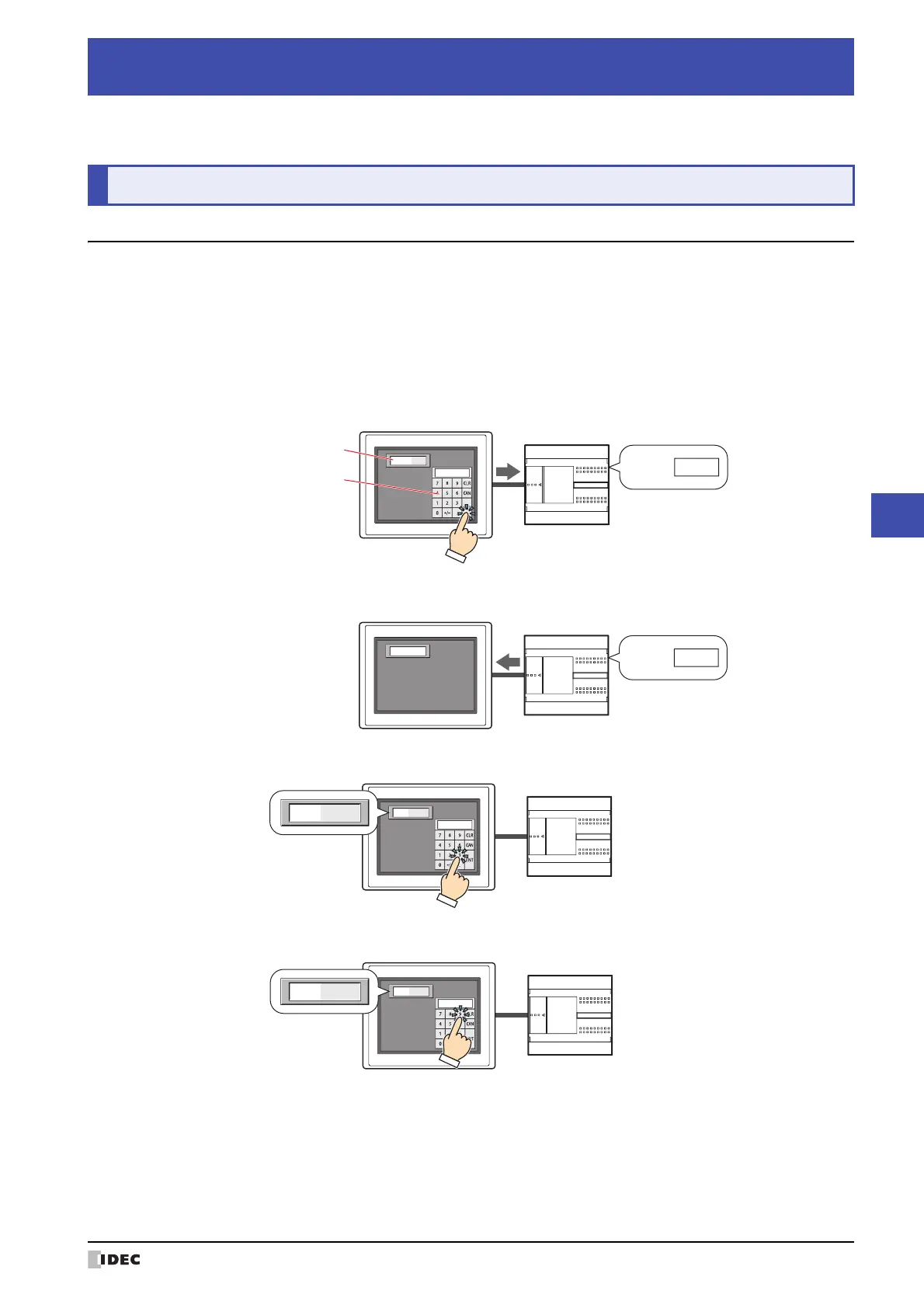

1.1 How the Numerical Input is Used
The Numerical Input features a display mode that displays the current value of device and an entry mode that enters
a value using the keypad or key buttons and writes that value to a device. When the part is displayed on the screen,
the Numerical Input is in display mode. To enter a value by pressing the keypad or key buttons, touch the Numerical
Input to switch it to entry mode. In entry mode, the value of device is displayed until a value is entered.
The Numerical Input can perform the following functions.
• Write a value entered with the keypad or key buttons to a device
• Display the current value of device
• Enter and display decimal numbers
• Display the entered value as * (asterisk)
Chapter 9 Data Displays
1Numerical Input
External device
Touch
999
999
D100:
999
Numerical Input
Standard keypad
External device
Touch
1234
D100:
1234
External device
Touch
12.30
12.3
12.30
External device
Touch
****
****
****
