SmartAXIS Touch User's Manual 23-27
6 System Information
23
Online Function
Displays information about the runtime system and downloaded project data of the Touch.
This function can be used to show information about project data during editing and to simultaneously check details
of project data downloaded to the Touch.
6.1 Displaying System Information
1 Change communication settings according to the connection method between the computer and the Touch.
If communicating with a Touch inserted in a computer, in the Communication Settings dialog box, select Touch from
Communicate with. To communicate with the Touch as an O/I Link Slave via an O/I Link Master, select
O/I Link Slave. For details, refer to “1.3 Change Communication Settings” on page 23-5.

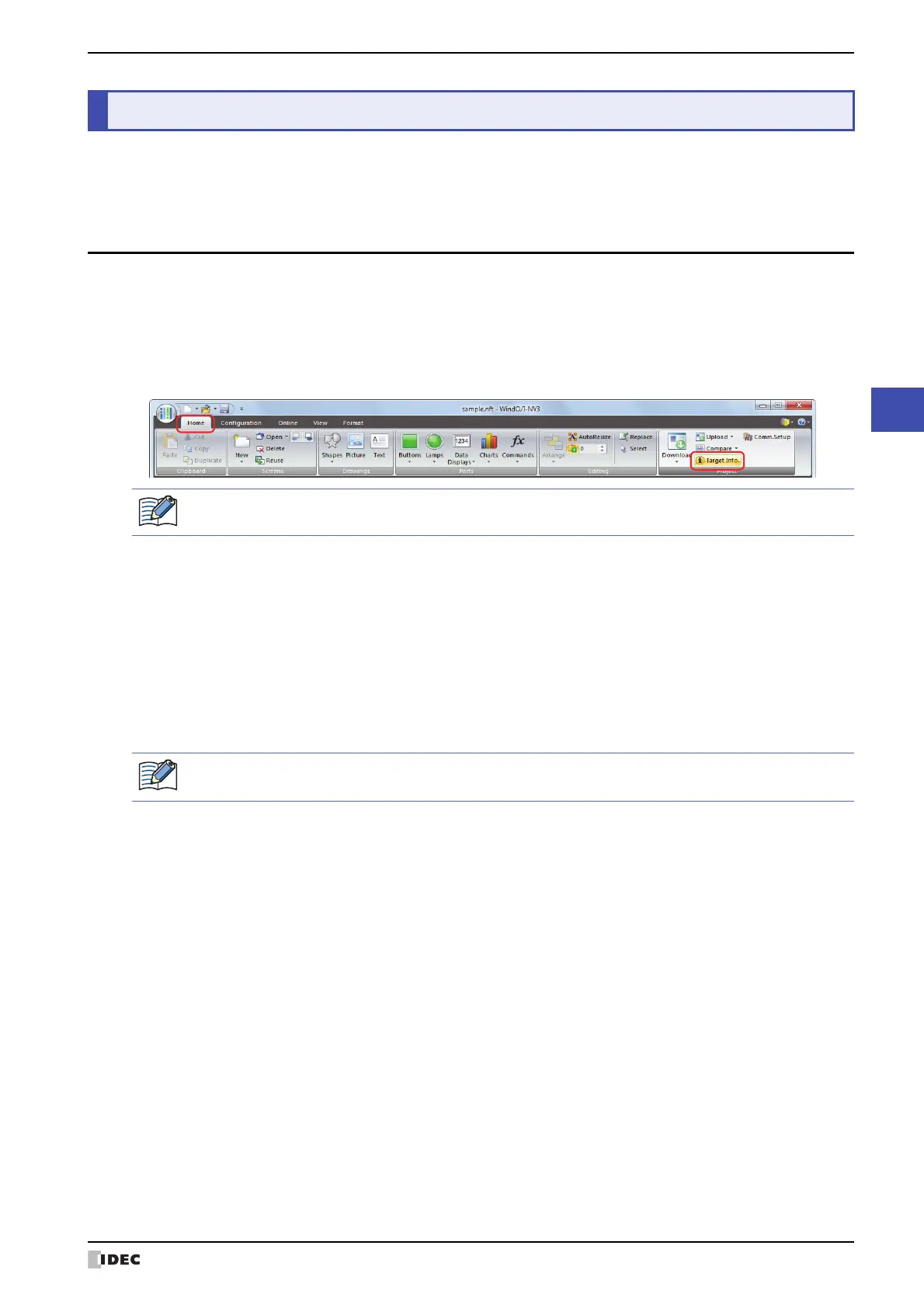

2 On the Home tab, in the Project group, click Target Info..
• When Communicate with is set to Touch and Port is set to USB, the System Information dialog box is
displayed.
• When Communicate with is set to Touch and Port is set to Ethernet, the Target IP Address dialog box is
displayed. Specify the IP address of the Touch, and then click OK to display the System Information dialog box. For
details, refer to “To execute any function except project data download” on page 23-8.
• When Communicate with is set to O/I Link Slave, the Target Slave dialog box is displayed. Specify the slave
station of the Touch to communicate with, and then click OK to display the System Information dialog box.
If Port is set to Ethernet, specify the IP address of the master to be used. For details, refer to “To execute any
function except project data download” on page 23-9.
6System Information
While editing project data, information about runtime system and project data can be displayed even by
clicking Target Info. in the Touch group on the Online tab.
If security is enabled in the Touch project, the Password Screen is displayed. Enter the password.
For details, refer to Chapter 21 “User Accounts and the Security Function” on page 21-1.
To Next Page
