This chapter provides an overview of the Touch screen and describes how to setup and operate the screen.
1.1 Screen Types
The types of screens can be created with the WindO/I-NV3 are given below.
1.2 Screen Size
The size of the Base Screen is equal the size of the Touch screen. The Base Screen size is 240 x 100 dots.
*1 The Keypad that is displayed when operating Numerical and Character Input parts when Standard is selected under Type
in the Keypad menu for Numerical and Character Input parts.
Chapter 4 Screen

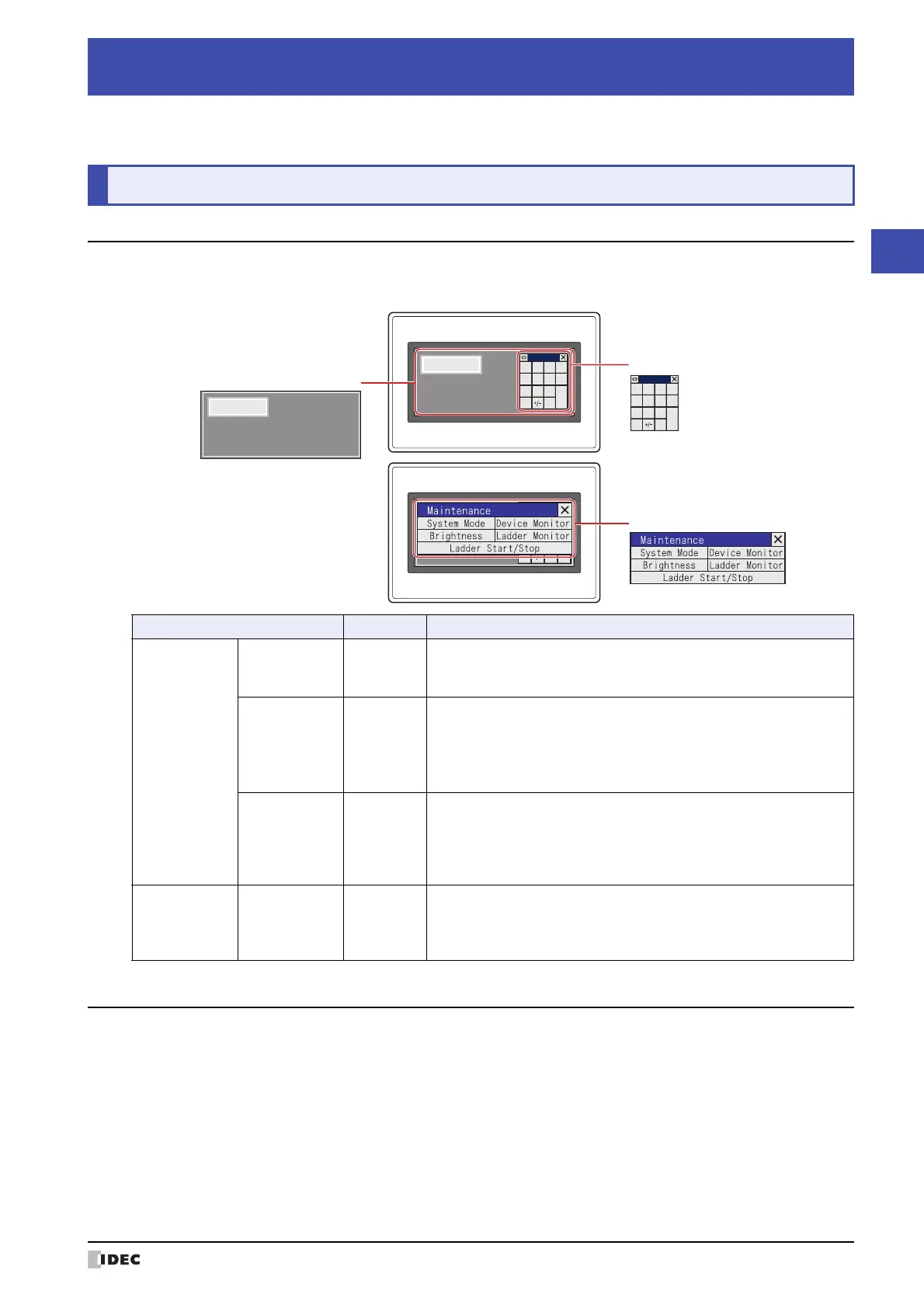

1 Screen Overview
Screen Type Screen No. Description
Screens that can
be created with
WindO/I-NV3
Base Screen 1 to 3,000
The screen that is displayed when the Touch is in Run Mode. Drawing
objects and functional parts can be created mainly on this screen which
is displayed on the Touch.
Popup Screen 1 to 3,015
The Popup Screen that is displayed on the Base Screen when the
Touch is in Run Mode. The size and coordinates of the screen can be
specified and this screen can also be moved on the Base Screen.
A Popup Screen for the standard Keypad
*1
will automatically be created
in screen numbers 3,001 to 3,015.
Library Screen –
The screen that registers often used drawing objects and parts to the
set WindO/I-NV3. References the registered screen while the project is
being edited and can copy and appropriate drawing objects and parts
from the screen.
This screen is not included in project data.
Screen
provided by the
Touch
Maintenance
Screen
–
Using the screen that is displayed when the Touch is in Run Mode, you
can switch from Run Mode to System Mode and load a screen to adjust
Device Monitor and screen brightness.
For details, refer to Chapter 28 “1 Maintenance Screen” on page 28-1.
1230
0
1
4
7
2
5
8
3
6
9
.
ENT
CLR
CAN
1230
Touch
1230
0
1
4
7
2
5
8
3
6
9
.
ENT
CLR
CAN
0
1
4
7
2
5
8
3
6
9
.
ENT
CLR
CAN
Base Screen
Popup Screen
Maintenance Screen
