1 Touch
29-26 SmartAXIS Touch User's Manual

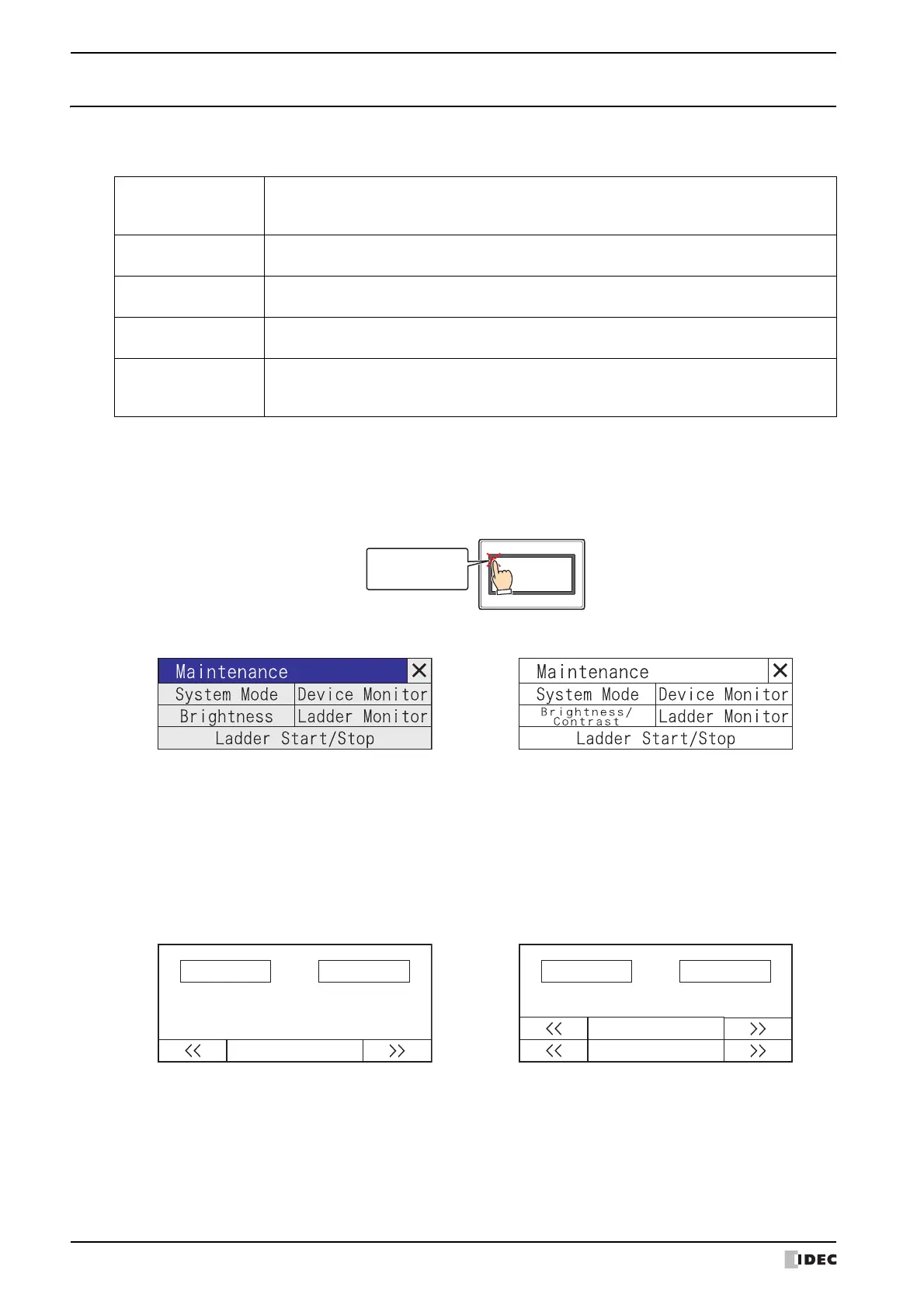

1.11 Maintenance and Inspection
Maintain and inspect the Touch periodically to ensure the best performance. Do not disassemble, repair, or modify
the Touch during inspection.
●
Maintenance Screen
Turn on the power to the Touch, then press and hold the upper-left corner of the screen for three seconds or longer.
The Maintenance Screen appears on the screen.
• Permission to show the Maintenance Screen can be set using WindO/I-NV3 software. For details, refer to Chapter 3
“3.1 System Tab” on page 3-19.
• The Maintenance Screen is not displayed in the System Mode.
●
System Mode
Press the System Mode at the top of the Maintenance Screen. The Top Page appears.
Initial Setting, Self Diagnosis and Initialization of the data, etc can be executed in the System Mode.
Display
Wipe any stain of the display using a soft cloth slightly dampened with neutral detergent or
alcoholic solvent. Do not use solvents such as thinner, ammonia, strong acid, and strong
alkaline.
Terminals, Connectors
Check the terminals and connectors to make sure of no loose screws, incomplete insertion, or
disconnected lines.
Mounting Clips
Make sure that all mounting clips and screws are tightened sufficiently. If the mounting clips are
loose, tighten the screw to the recommended tightening torque.
Backlight
The Touch backlight cannot be replaced by the customer. When the backlight needs to be
replaced, contact IDEC.
Touch Panel
A gap may be caused in the operation accuracy of the touch panel by the secular distortion, etc.
Adjust the touch panel according to the following procedure when there is a gap in the operation
of the touch panel.
Maintenance Screen (Color LCD models) Maintenance Screen (Monochrome LCD models)
Press and hold 3
or more seconds
Touch
Top Page (Color LCD models) Top Page (Monochrome LCD models)
,3$GG'+&3
-8/)5,
6<67(002'(7233$*(
%5,*+71(66
5XQ 0DLQ0HQX
,3$GG'+&3
-8/)5,
6<67(002'(7233$*(
&2175$67
%5,*+71(66
5XQ 0DLQ0HQX
To Next Page
