SmartAXIS Touch User’s Manual 9-43
3 Picture Display
9
Data Displays

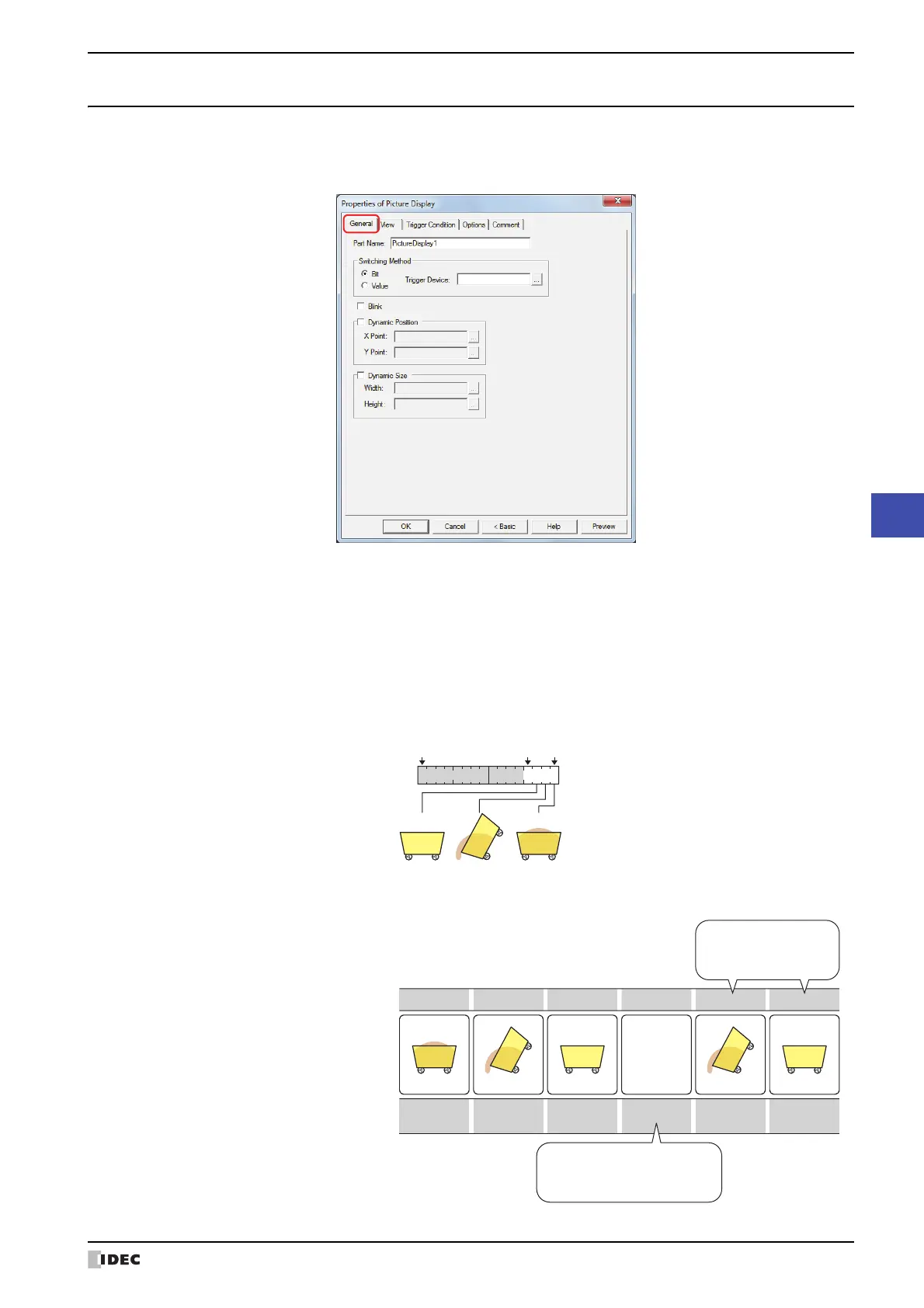

3.3 Properties of Picture Display Dialog Box
This section describes items and buttons on the properties dialog box.
● General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Switching Method
Specifies the method for switching pictures to display from the following. Register pictures in Picture List on the
View tab.
Bit: Switches the picture to display according to the status of bits in a device.
Example: When Bit is selected and the bits of trigger device D0 are allocated to the following
pictures.
Switches the picture to display according to the status of the bits.
bit15 bit0
bit3
Trigger device D0
Pic0Pic1Pic2
0001
Picture to display
Trigger device D0
bit state
0010 0100
1000
Display picture
for bit 0
Display picture
for bit 1
Display picture
for bit 2
No picture
Display picture
for bit 1
Display picture
for bit 2
Action
1110
1100
Pic 0 Pic 1 Pic 1Pic 2 Pic 2
If all bits in the device are 0 or if a bit
with no associated picture becomes 1,
display nothing.
If multiple bits are 1, display
the picture for the lowest
order bit.
