3 Base Screen
4-18 SmartAXIS Touch User’s Manual

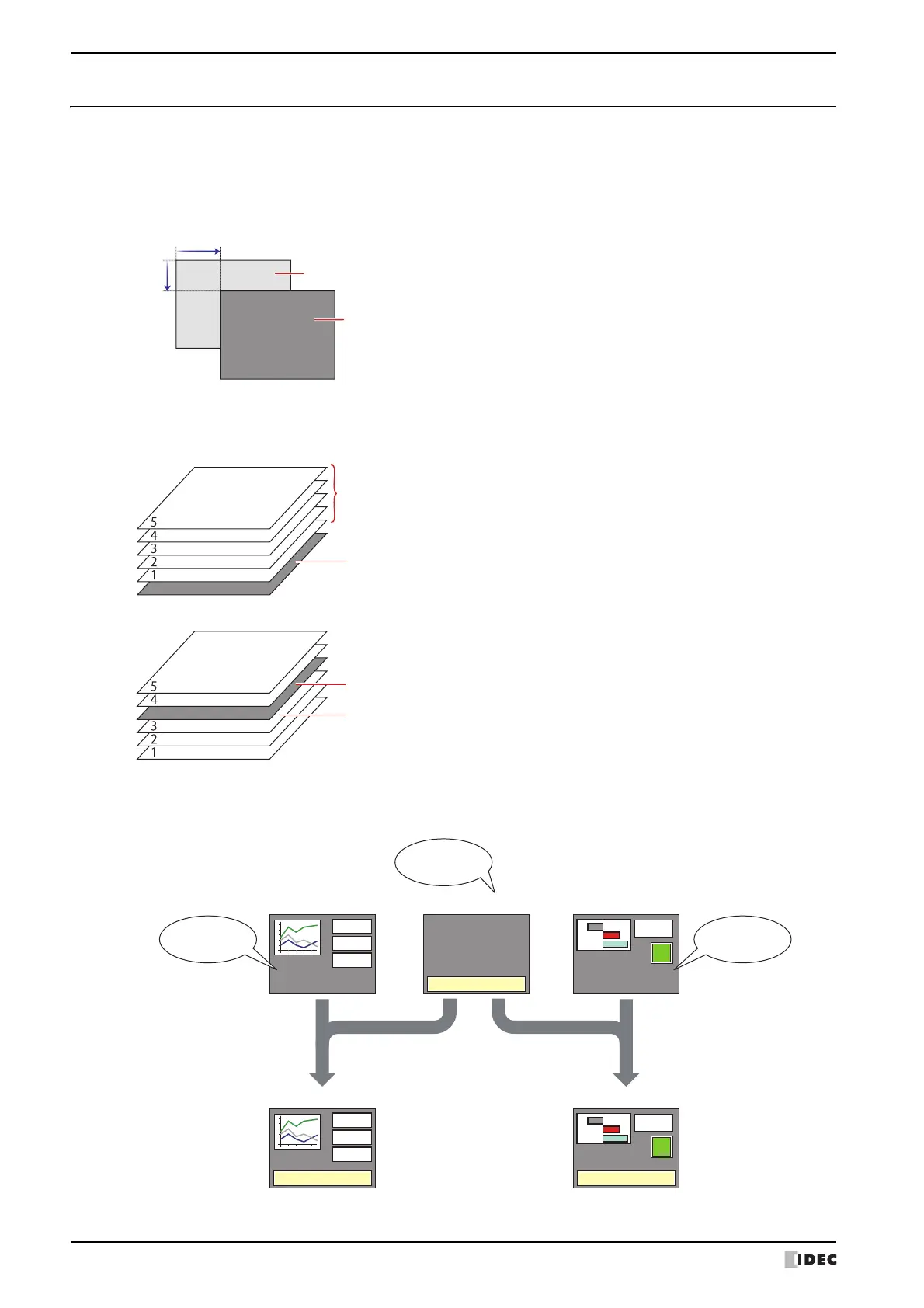

3.2 Displaying Layered Base Screens
It is possible to layer and display multiple Base Screens. The coordinates and display order for layered screens can be
set on the screen that will serve as the base. The maximum number of layered screens is five screens.
■ Coordinates
Using the upper-left corner of the screen as the origin, the upper-left area of the layered screen become the X and Y
coordinates.
■ Display Order
This allows you to select the order of display for the screen that will serve as the base and layered screens.
Example:Displaying a Base Screen that is currently being edited as the bottom most layer
Example: Displaying a Base Screen currently being edited on the layered screen: 3.
For details about how to configure these settings, refer to “3.1 Base Screen Settings” on page 4-14.
Example: When Base Screen: 100 which has a clock placed in it is used as a layered screen, Base Screen:1 which is
displayed as the base and Base Screen: 2 will be displayed as follows:
(0, 0)
X
Y
Base Screen
Overlay screen
Base Screen being edited
Overlay screen
(5 screens max)
Base Screen being edited
Overlay screen: 3
130
100
120
110
11/Feb./22 Tue. 12:00
11/Feb./22 Tue. 12:00
11/Feb./22 Tue. 12:00
130
100
120
110
Base Screen: 1 Base Screen: 100 Base Screen: 2
Display for Base Screen: 1 Display for Base Screen: 2
Layering Layering
Displayed as
the base
Displayed as
the base
Layered Screen
