7 Alarm Log Display
9
Data Displays
7.3 Properties of Alarm Log Display Dialog Box

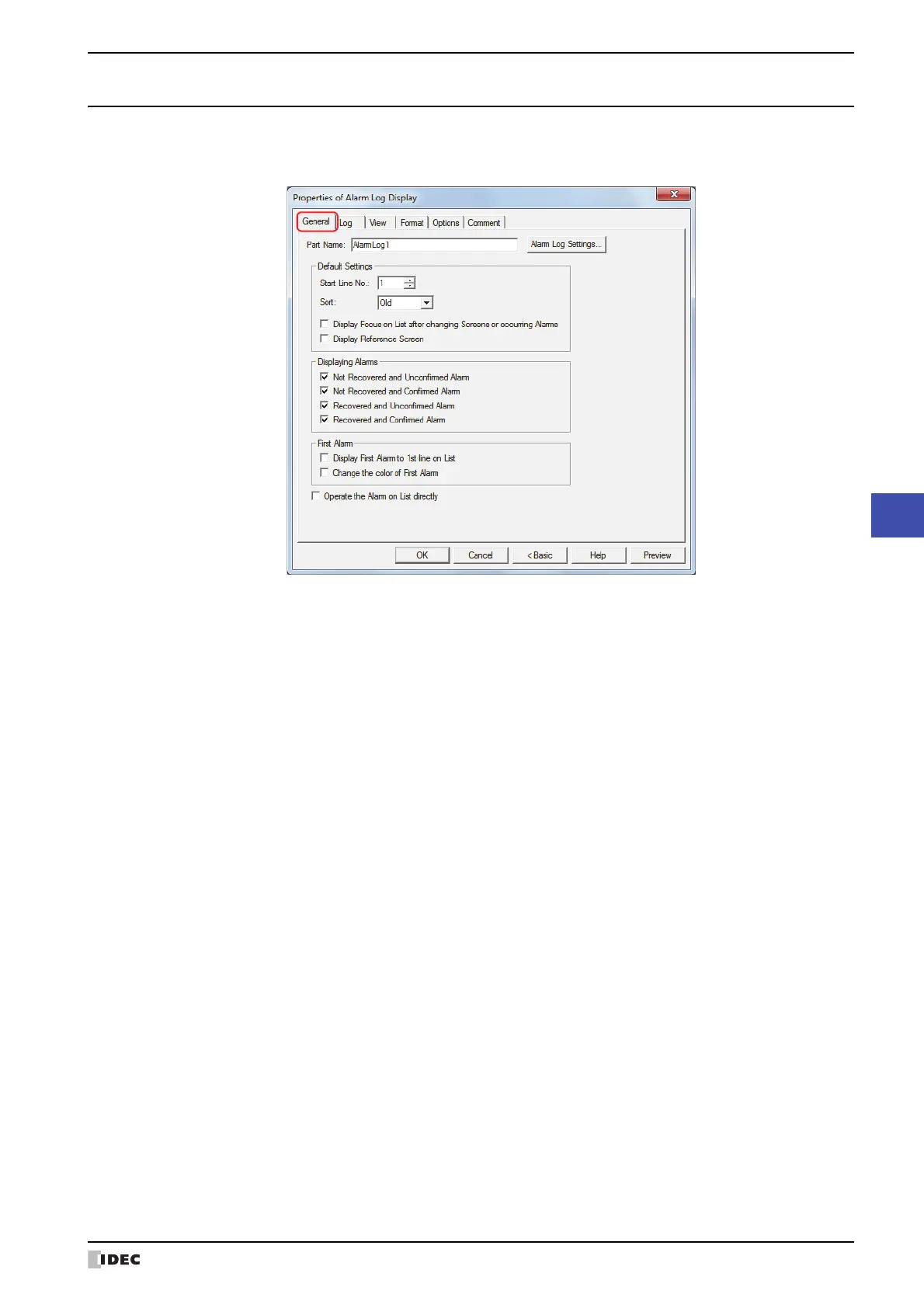

This section describes items and buttons on the properties dialog box.
●
General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Default Settings
These options configure the default settings when the Alarm Log Display is displayed.
■ Displaying Alarms
*1
Select these check boxes for alarms to display on the Alarm Log Display.
*1 Advanced mode only
Start Line No.: Specifies what number alarm to display when multiple alarms have occurred.
The range that can be specified is 1 to 5,011.
Sort: Selects the display order for alarms that have occurred as Old or New.
Display Focus on List after changing Screens or occurring Alarms
*1
:
Select this check box to automatically display the focus at the first item in the list
after switching screens and when an alarm occurs.
Display Reference Screen
*1
:
Select this check box to automatically display the reference screen for the alarm
that has focus under the following conditions.
When the focus is displayed
When the focus moves
When a new alarm occurs
Not Recovered and Unconfirmed Alarm: Displays active alarms that have not been recovered and confirmed.
Not Recovered and Confirmed Alarm: Displays alarms that have not been recovered but the key button CHECK
has been pressed.
Recovered and Unconfirmed Alarm: Displays alarms that have been recovered but the key button CHECK has
not been pressed.
Recovered and Confirmed Alarm: Displays alarms that have been recovered and the key button CHECK has
been pressed.
