2 Word Button
7-20 SmartAXIS Touch User’s Manual

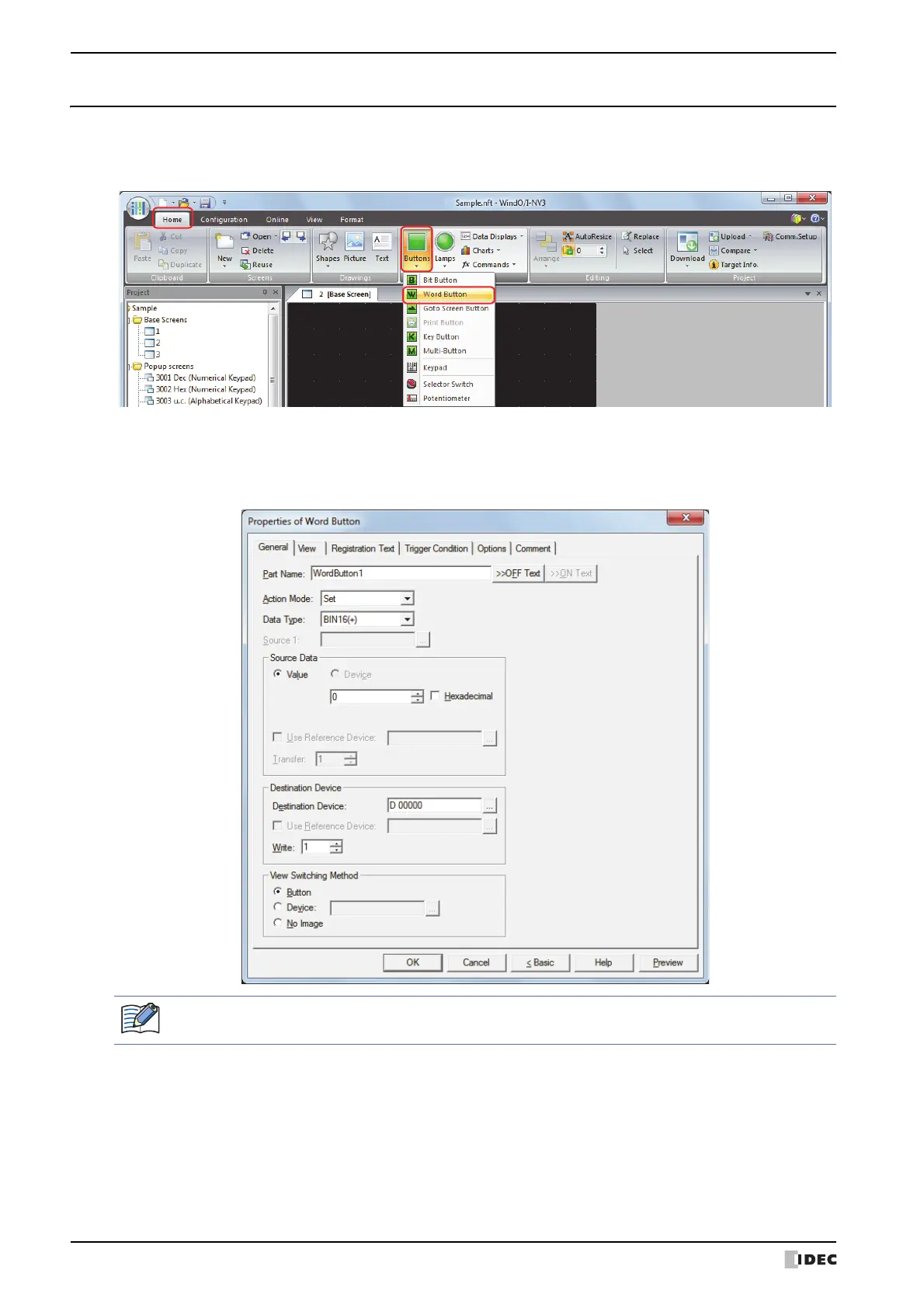

2.2 Word Button Configuration Procedure
This section describes the configuration procedure for Word Buttons.
1 On the Home tab, in the Parts group, click Buttons, and then click Word Button.
2 Click a point on the edit screen where you want to place the Word Button.
3 Double-click the dropped Word Button and a Properties dialog box will be displayed.
4 Change the settings on each tab as necessary.
The Trigger Condition tab and Options tab only appear in Advanced mode.
To switch to Advanced mode, click Advanced.
