SmartAXIS Touch User’s Manual 6-13
1 Shapes
6
Drawings
1.6 Arc

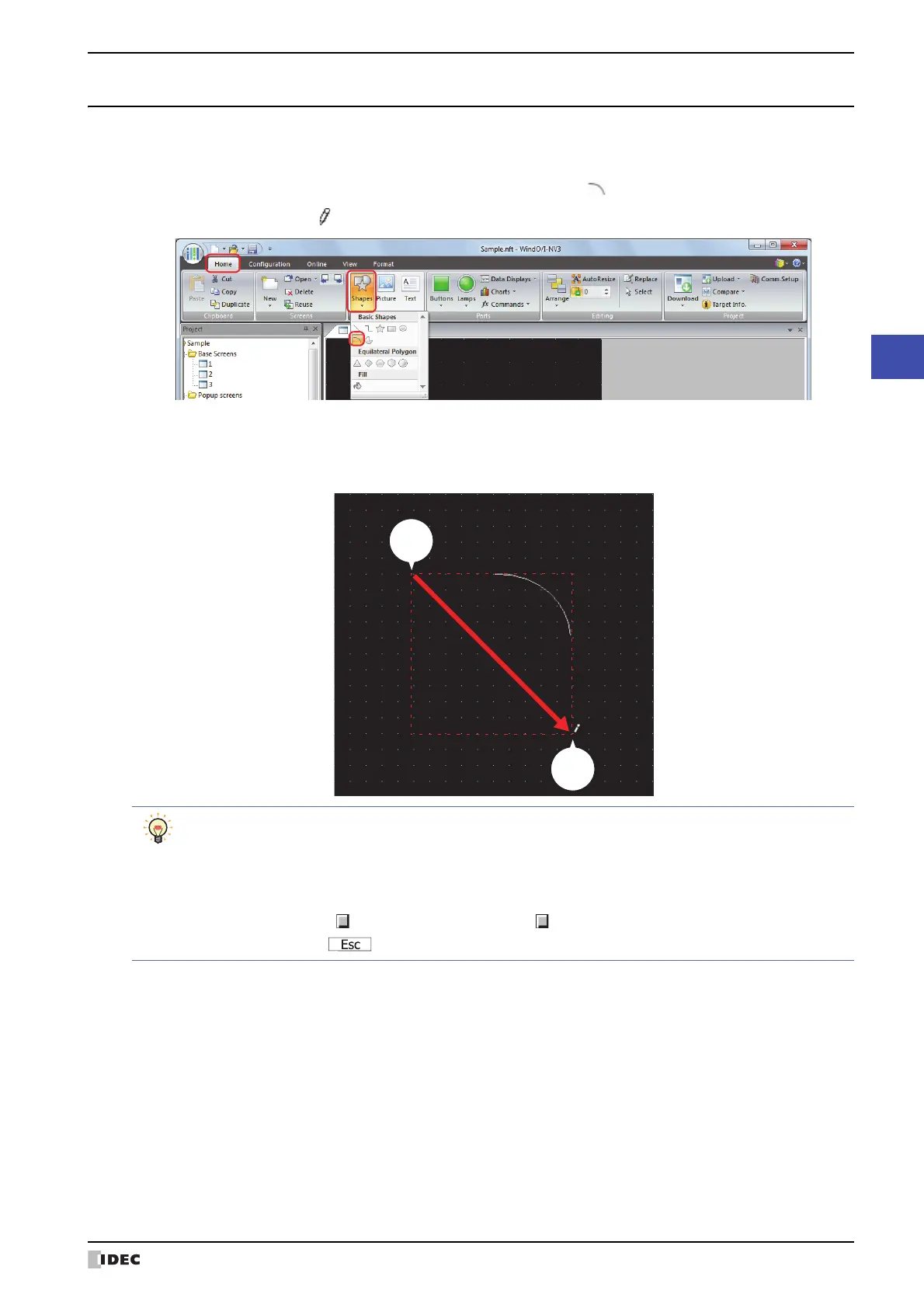

● Arc Drawing Procedure
This section describes the procedure for drawing arcs.
1 On the Home tab, in the Drawings group, click Shapes, and then click (Arc) under Basic Shapes.
The mouse cursor changes to (pencil).
2 Click and hold the mouse button at the location (starting point) to start drawing the arc on the edit screen.
3 Drag the mouse to the ending point location so that location becomes the opposite angle of the rectangle.
An arc is drawn that inscribes the rectangle made from the opposite angles of the starting point and the ending point.
Ending
point
• To change the style of the drawn arc, perform one of the following operations.
- Double click the arc to open the Properties dialog box
- Select the arc and select the style with Shape Style on the Format tab
- Select the arc and right click to display the popup menu
• To change the starting point or the ending point of the drawn arc, select the arc and right click on it, and
then click Reshape. is displayed on the arc. Drag to the desired location. Double click the edit
screen or press the key to finish changing the shape.
