IDEC SmartAXIS Touch FT1A Series User Manual

1 Shapes
6-12 SmartAXIS Touch User’s Manual
■ Coordinates
■ Size

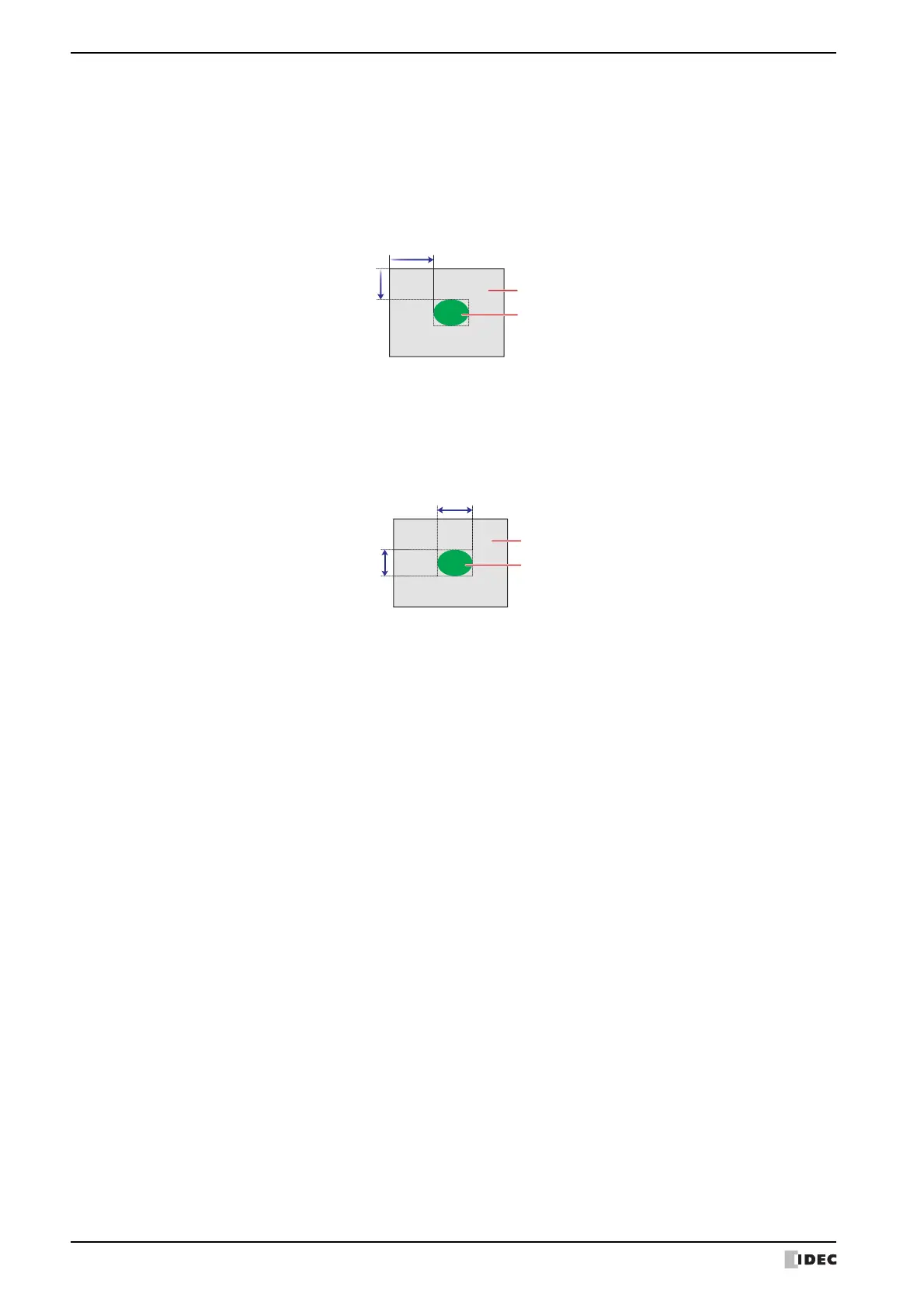

X, Y: Specifies the display position of the circle or ellipse in coordinates.
With the upper-left corner of the screen as the origin, the upper-left corner of the rectangle that
circumscribes the circle or ellipse is the X and Y coordinates.
X: 0 to (Base Screen horizontal size - 1)
Y: 0 to (Base Screen vertical size - 1)
(0, 0)
X
Y
Screen
Circle/ellipse
W, H: Specifies the size of the circle or ellipse in width and height.
W: 3 to (Base Screen horizontal size)
H: 3 to (Base Screen vertical size)
Width
Height
Screen
Circle/ellipse
