1.3 Data Configuration
The recorded data is composed of a label, time, user name, screen number, event name, part name, device, and
content after the change.
The relationship between the Operation Log function settings and the recorded data is as follows.
1. Event: Events that occur on the Touch due to operations including user operations. Only the checked
events are recorded.
2.
Data storage amount: The amount of data to record. For details, refer to “Data Storage Amount” on page 15-6.
3. Label: When the recorded data is output as a CSV file, this is the text displayed in the label row.
4. Sampling Time: The time the event occurred.
The display type for the date and time varies based on the language configured in Project
Settings, on the Project Details tab, in Language.
YYYY/MM/DD
HH:MM:SS:
Japanese
MM/DD/YYYY
HH:MM:SS:
European, Chinese, Taiwanese, Korean, Central European, Baltic, Cyrillic
5. User Name: The user name when the event occurred.
The user name is only recorded when the Use Security functions check box is selected on the
General tab in the User Accounts dialog box.
6. Screen No.: The screen type and number that was displayed when the event occurred.
Base n: Base Screen (n: screen number)
Example: Base 1
Popup n: Popup Screen (n: screen number)
Example: Popup 10
7. Event Name: When the recorded data is output as a CSV file, this is the text displayed as a label to describe the
event that occurred. This item is configured in the Data Labels dialog box.

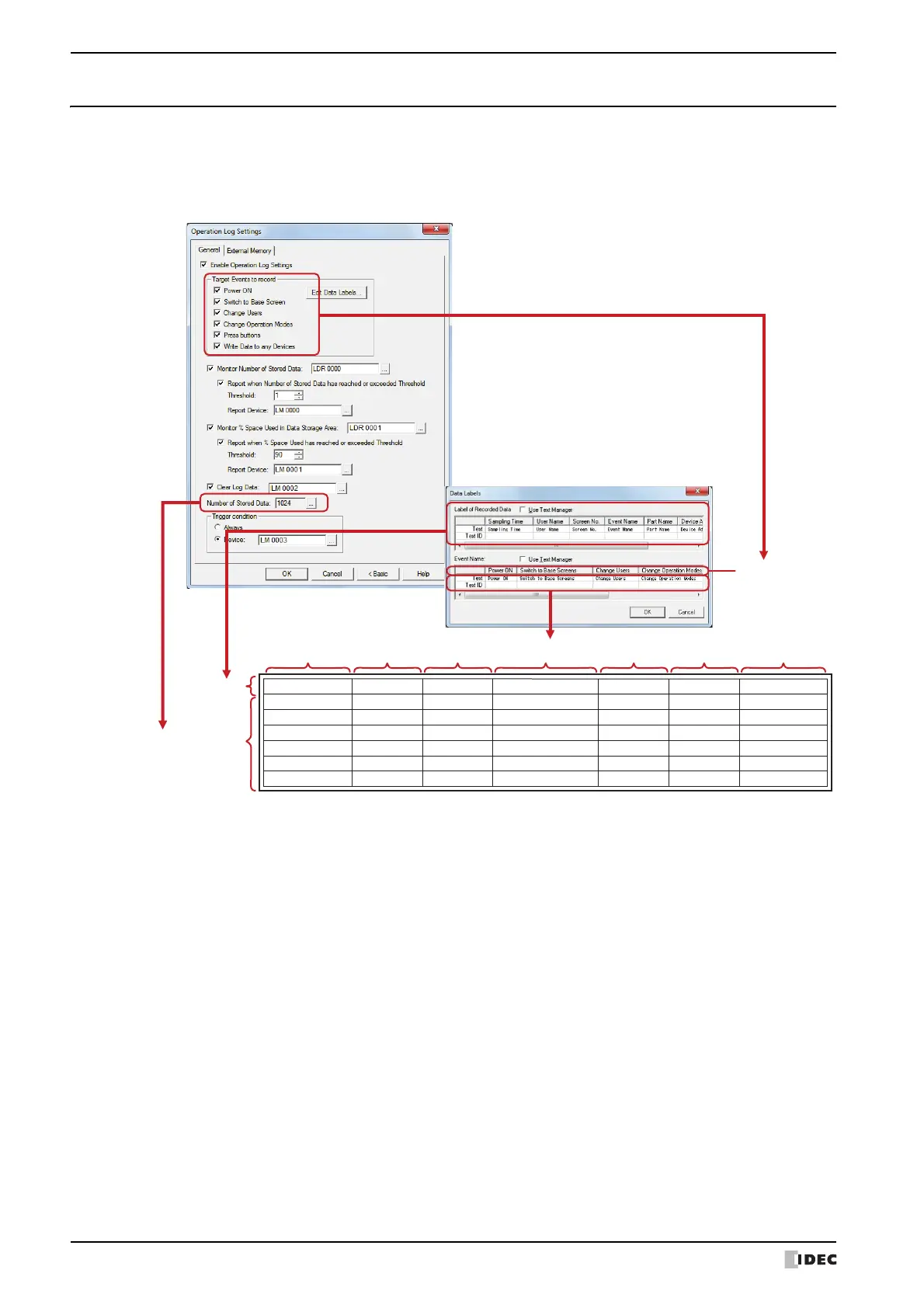

 ^ĂŵƉůŝŶŐdŝŵĞ hƐĞƌ ^ĐƌĞĞŶEŽ ǀĞŶƚEĂŵĞ WĂƌƚEĂŵĞ ĞƚĂŝůƐ ŚĂŶŐĞĚƚŽ
 ϭϮϬϭϮϬϭϭϭϮϬϬϭϬ Ͳ ĂƐĞϭ WŽǁĞƌKE Ͳ Ͳ Ͳ
 ϭϮϬϭϮϬϭϭϭϮϬϭϮϯ hƐĞƌϭ ĂƐĞϭ ^ǁŝƚĐŚƚŽĂƐĞ^ĐƌĞĞŶ Ͳ Ͳ ĂƐĞϮ
 ϭϮϬϭϮϬϭϭϭϮϬϮϰϱ hƐĞƌϭ ĂƐĞϮ ŚĂŶŐĞhƐĞƌƐ Ͳ Ͳ hƐĞƌϮ
 ϭϮϬϭϮϬϭϭϭϮϬϯϬϲ hƐĞƌϮ ĂƐĞϮ ŚĂŶŐĞKƉĞƌĂƚŝŽŶDŽĚĞƐ Ͳ Ͳ ^LJƐƚĞŵDŽĚĞ
 ϭϮϬϭϮϬϭϭϭϮϬϰϭϭ hƐĞƌϮ ĂƐĞϮ WƌĞƐƐďƵƚƚŽŶƐ ŝƚ^ǁŝƚĐŚ Ͳ Ͳ
 ϭϮϬϭϮϬϭϭϭϮϬϰϭϭ hƐĞƌϮ ĂƐĞϮ tƌŝƚĞĂƚĂƚŽĂŶLJĞǀŝĐĞƐ Ͳ >ZϬ ϱϱ
ϮĂƚĂƐƚŽƌĂŐĞĂŵŽƵŶƚ
ϯ>ĂďĞůƐ
ϰ
^ĂŵƉůŝŶŐdŝŵĞ
ϭǀĞŶƚ
ϱ hƐĞƌEĂŵĞ ϲ ^ĐƌĞĞŶEŽ ϭϬ ŚĂŶŐĞĚƚŽ ϳ ǀĞŶƚEĂŵĞ ϴ WĂƌƚEĂŵĞ ϵ ĞǀŝĐĞĚĚƌĞƐƐ
