3.4 Communication Driver Network Tab

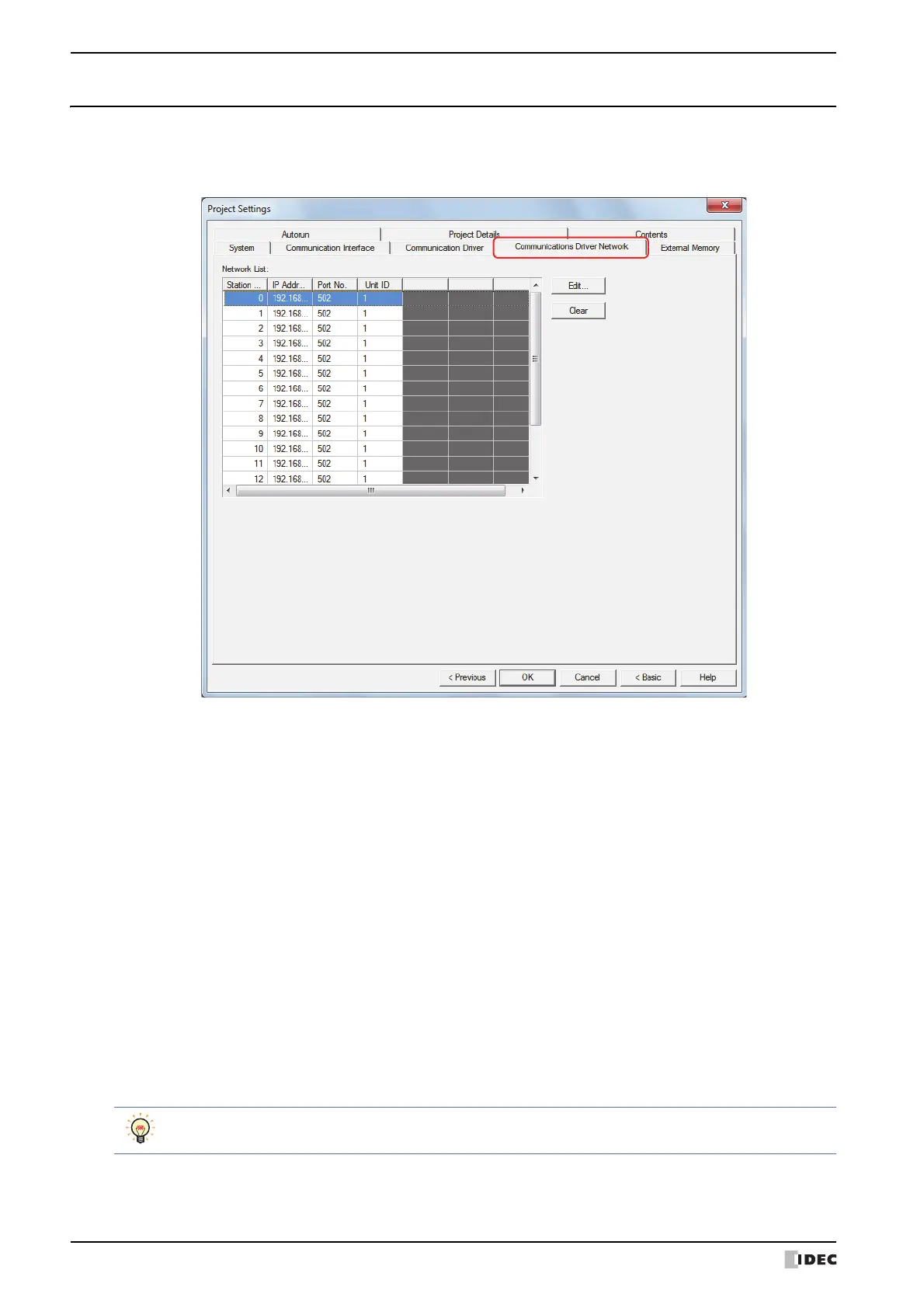

The Communication Driver Network tab is used to configure the information for external devices connected by
Ethernet communication. This tab is displayed when a communication driver is selected that supports Ethernet
communication.
■ Network List
Edits the settings for the external devices.
■ Edit
Configures the IP address and port number for the selected station number. Select a station number, and then click
this button to display the Communication Driver Network Settings dialog box.
■ Clear
Returns the settings for the selected station number to the defaults.
Station No.: Shows the station number of external device. Double clicking the cell displays the Communication
Driver Network Settings dialog box.
IP Address: Shows the IP address of the external device. (Default: 192.168.0.1)
Double clicking the cell allows you to specify the external device's IP address.
The format is “xxx.xxx.xxx.xxx”. “xxx” stands for a numeric value from 0 to 255.
When connecting multiple devices to the same network, make sure to assign each device a unique IP
address.
Port No.: Shows the port number of external device. (Default: 2101)
Double clicking the cell allows you to specify the external device's port number (0 to 65535).
You can change the IP address of the station numbers for the external devices using the System Screen. In
the Top Page in the System Screen, press Initial Setting, Comm. I/F, Ext. IP Address in order.
