5.3 Properties of Message Switching Display Dialog Box
This section describes items and buttons on the properties dialog box.
●

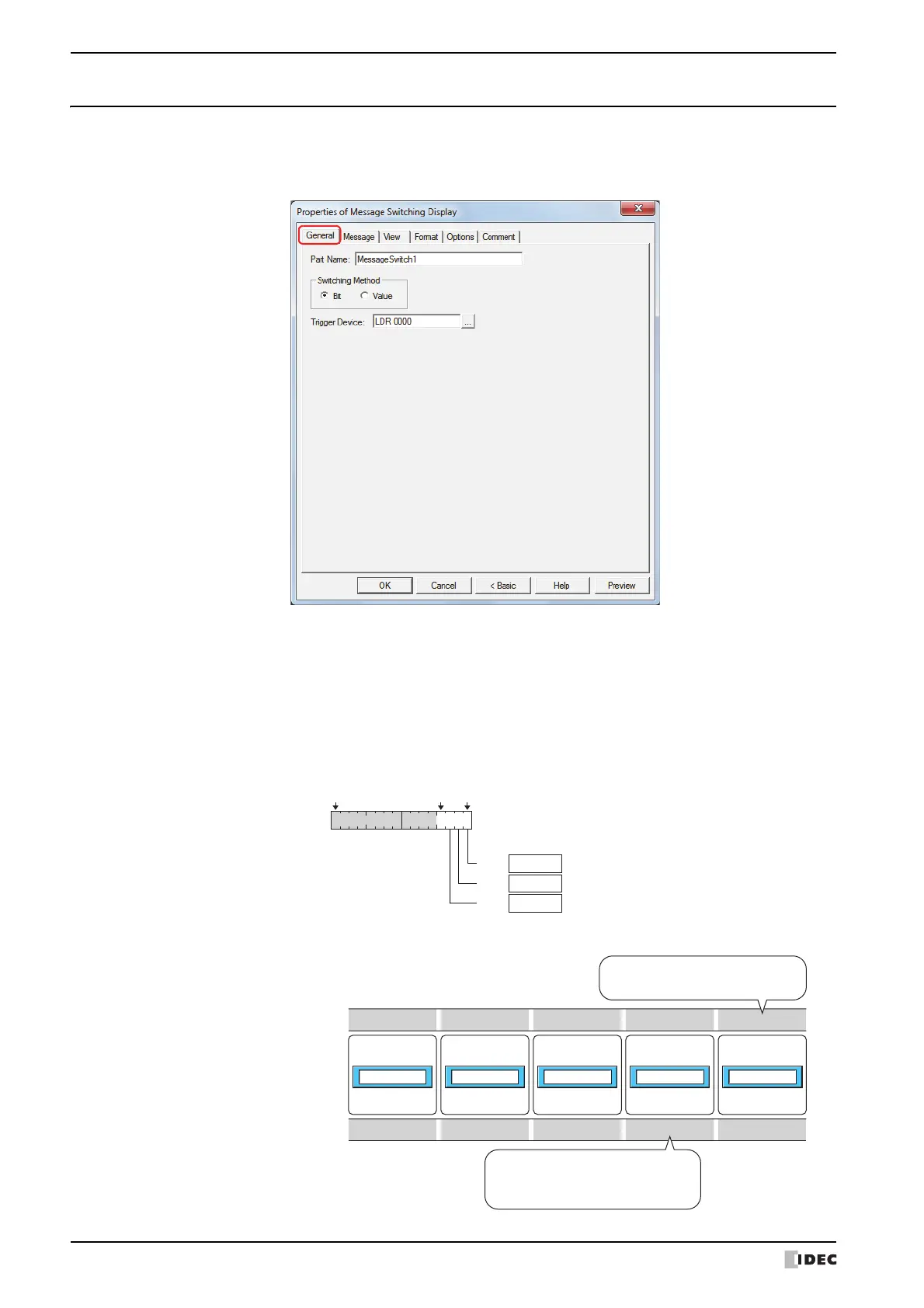

General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Switching Method
Selects the method for switching message to display from the following. Messages are registered in Settings on the
Message tab.
Bit: Switches the message to display according to the status of bits in a device.
Example: When Bit is selected and the bits of trigger device D0 are allocated to the following messages.
Switches the message to display according to the status of the bits.
bit15 bit0
bit3
Trigger Device D0
Msg0
Drying
Heating
Cooling
Msg1
Msg2
Message
0001
Message to display
0010 0100
1000
Display Msg0
Action
Display Msg1 Display Msg2
1110
Display Msg1
No message
Msg0 Msg1 Msg2 Msg1
Trigger Device D0
bit state
Drying Heating Cooling Heating
If all bits in the device are 0 or if a bit with
no associated message becomes 1, display
nothing.
If multiple bits are 1, display the message for
the lowest order bit.
