● Cautions for using the Touch connected to a computer
When connecting the Touch to a computer via the Serial Interface (Port) or USB Interface, the Touch or the computer
may break down depending on the conditions of the computer. Make sure of the following cautions, in order to
prevent an accident.
• If the computer has a 3-pin power plug or power plug with a ground lead type. make sure to use a plug socket
including a ground input electrode or ground the earth lead, respectively.
• If the computer has a 2-pin power plug without ground lead, follow the procedure below when connect the Touch
to the computer.
(1) Pull out the power plug of the computer from the AC outlet.
(2) Connect the Touch to the computer.
(3) Insert the power plug of the computer into the AC outlet.
1.10 USB Cable Lock Pin Attachment
When using the USB interface (USB1, USB2), attach the USB cable lock pin to prevent disconnecting the USB cable from
the Touch.
1 Insert the USB cable into the USB port.
2 Strain the “Edge part” of the USB cable lock pin, and insert the “Edge part” to the 2 holes upper the USB port.
3 Fasten the USB clamp band around the USB cable and the clamp part, secure them tightly.

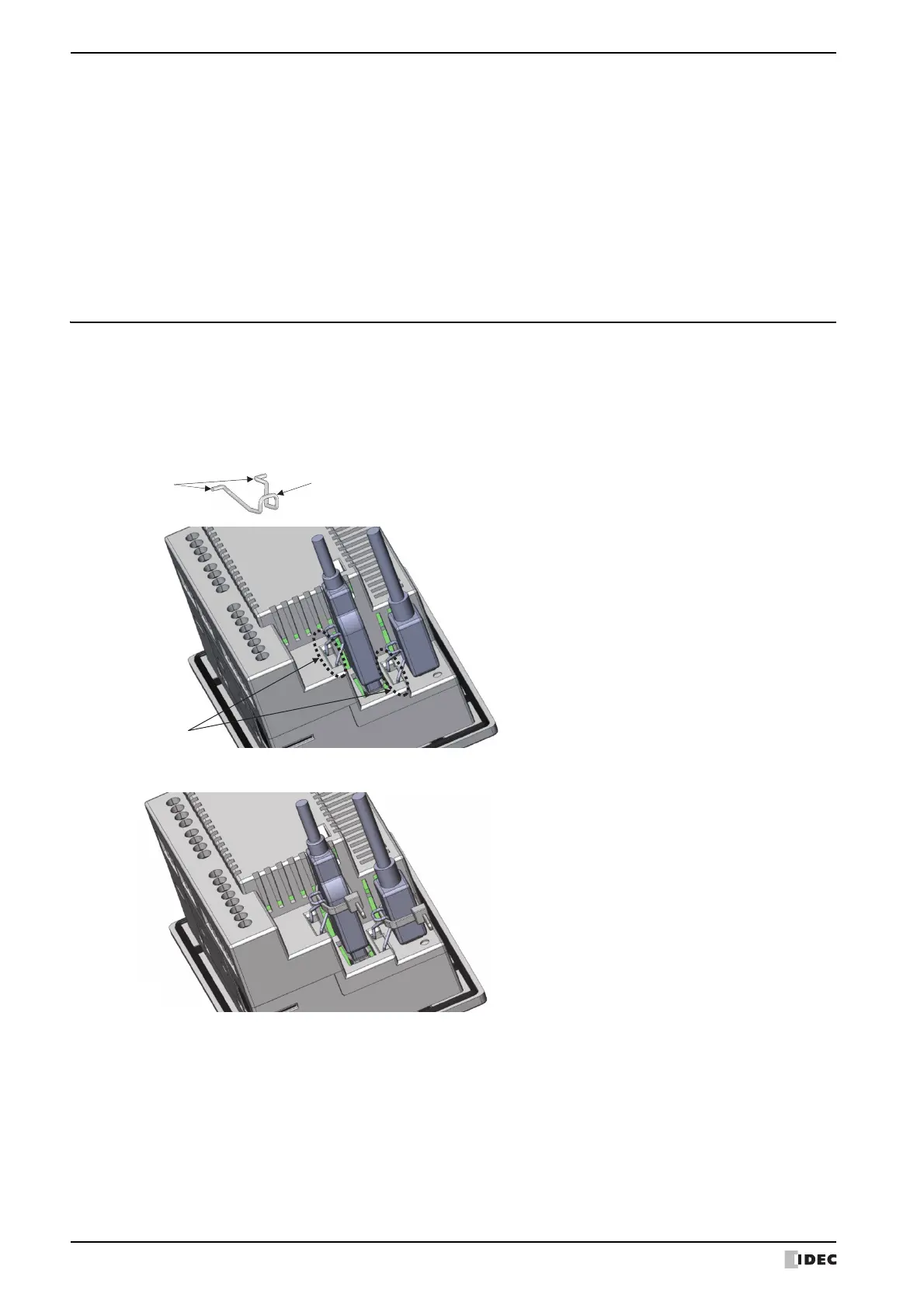

Upper Holes
To Next Page
