1 Pilot Lamps
8-2 SmartAXIS Touch User’s Manual
1.2 Pilot Lamp Configuration Procedure
This section describes the configuration procedure for Pilot Lamps.

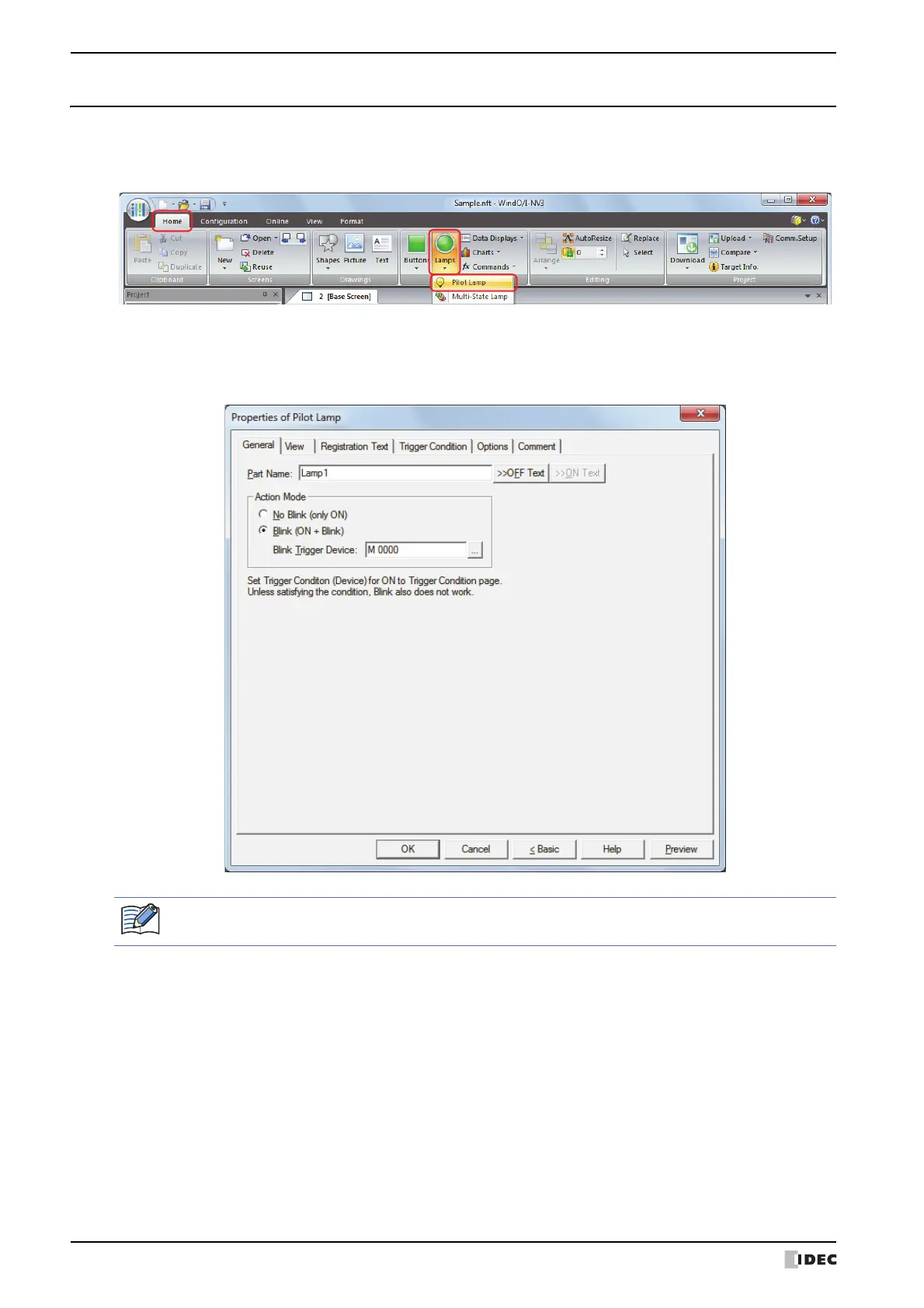

1 On the Home tab, in the Parts group, click Lamps, and then click Pilot Lamp.
2 Click a point on the Edit screen where you want to place the Pilot Lamp.
3 Double-click the dropped Pilot Lamp and a Properties dialog box will be displayed.
4 Change the settings on each tab as necessary.
The Options tab only appears in Advanced mode.
To switch to Advanced mode, click Advanced.
