2.3 Properties of Character Input Dialog Box
This section describes items and buttons on the properties dialog box.
●

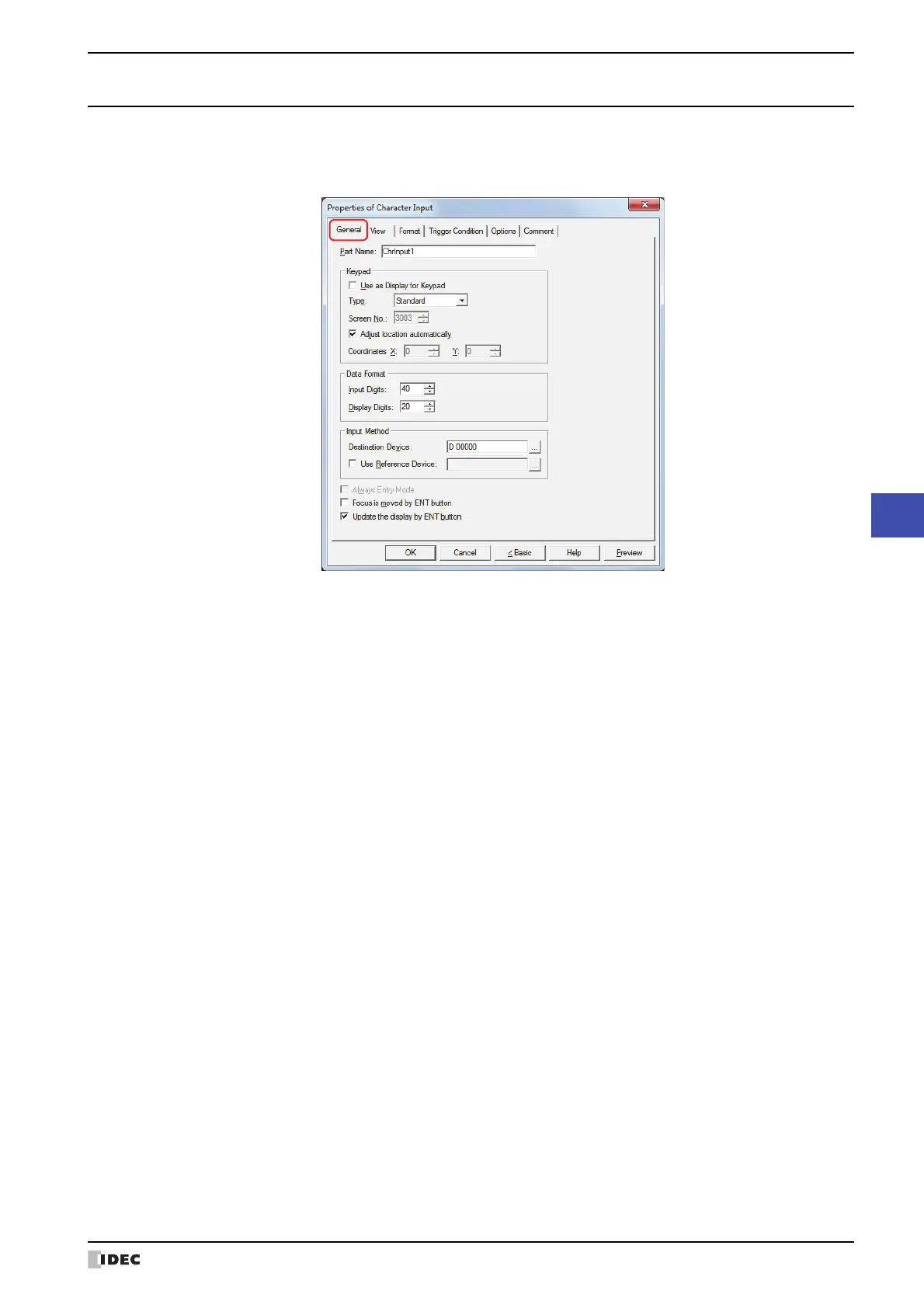

General Tab
■ Part Name
Enter a name for the part. The maximum number is 20 characters.
■ Keypad
Configures the keypad for entering text in the Character Input.
*1 Advanced mode only
Use as Display for Keypad
*1
:
Select this check box to only use the Character Input as a part to display the
text entered with the keypad.
Type: According to the location where the keypad is configured, selects the type from the following.
Standard: Uses the standard keypad. The standard keypad is the keypad configured as
the Popup Screen for the standard keypad (screen number 3000 to 3015).
Popup: Uses a keypad configured as a Popup Screen.
Current Screen: Uses the keypad configured on the same screen as the Character Input.
Screen No.: Specifies the screen number of the Popup Screen configured as the keypad (1 to 3015).
This option can only be configured if Popup is selected for Type.
Adjust location automatically: Select this check box to display the Popup Screen configured as the keypad in a
location where it will not overlap the Character Input.
This option can only be configured if Standard or Popup is selected for Type.
Coordinates X, Y: Specifies the display location of the Popup Screen configured as the keypad.
With the upper-left corner of the screen as the origin, the X and Y coordinates are the upper-left
corner of the Popup Screen.
This option can only be configured when Popup is selected for Type and the Adjust location
automatically check box is cleared.
Specify the coordinates in 1 dot units.
X: 0 to (Base Screen horizontal size - 1)
Y: 0 to (Base Screen vertical size - 1)
