SmartAXIS Touch User’s Manual 18-3
1 Overview
18
Recipe Function
1.3 Data Configuration

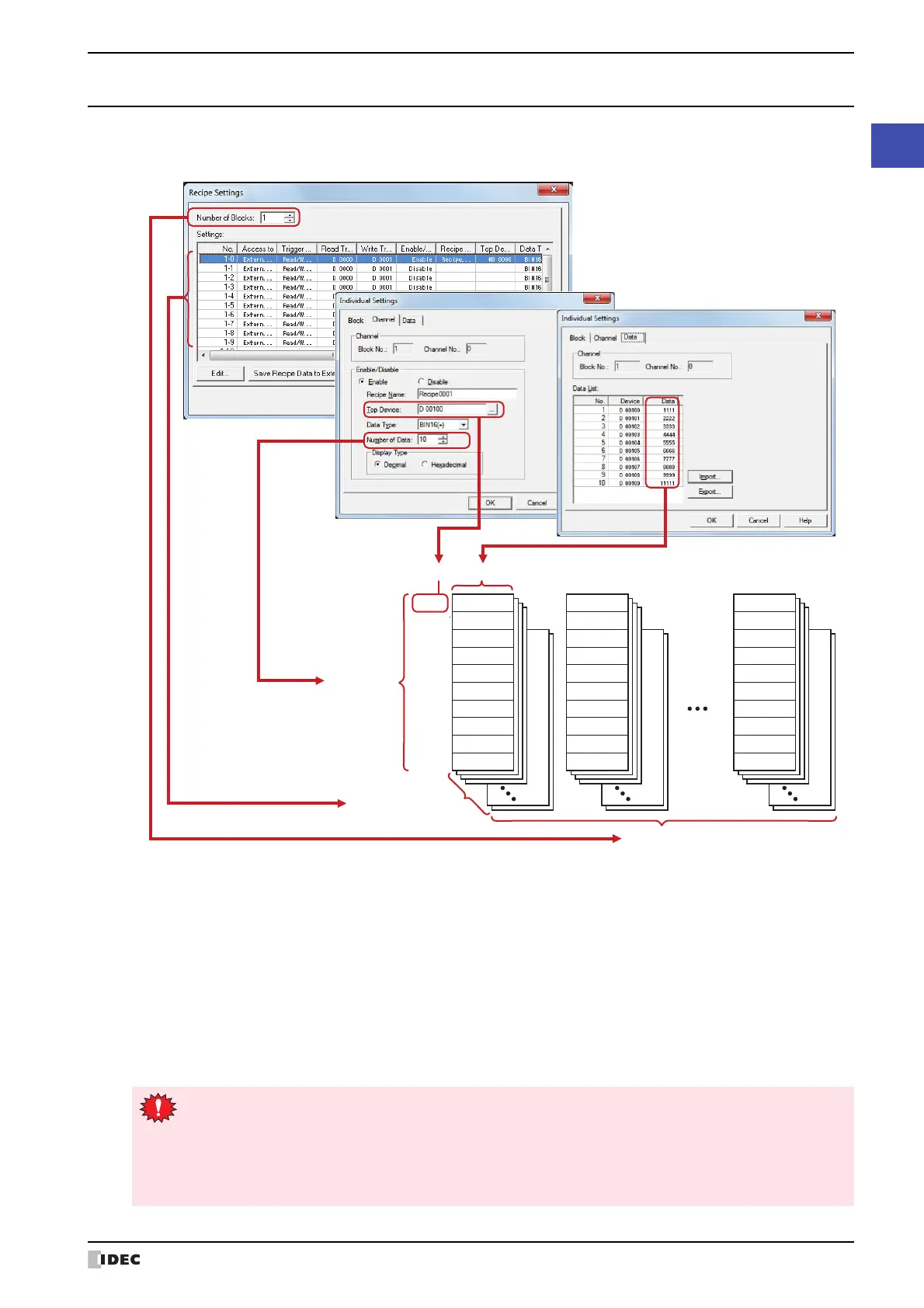

The relationship between the Recipe function settings and the data for recipes is as follows.
1. Number of blocks: The operation using the data for recipes is configured in blocks (0 to 64). One block is 16
channels.
2. Channels: Destination devices and recipe values are configured in channels. One channel is used for one
item of data for the recipe.
3. Number of Data: The amount of data configured for one channel. The maximum number of data that can be
configured is 8,192.
4. Top Device: The starting address of the destination devices for recipe values and the source devices for
values of devices.
5. Data: The values to write to the devices.
'
'
'
'
'
'
'
'
'
'
'DWD7RS'HYLFH
1XPEHURIEORFNV
&KDQQHOWR
1XPEHU
RI'DWD
Recipe settings
Data for recipes
If there are many word devices for the data for the recipe, it will take time to read and write them. For
example, when using the Recipe function to configure initial values, if other processes are executed before
the function is finished writing all the settings, you may experience unexpected results. Monitor the System
Area 2 Transferring recipe bit (address+3, bit 4) while the recipe is transferring and wait until reading and
writing the data for the recipe is finished before executing other processes. For details, refer to Chapter 3
“System Area” on page 3-23.
